Specifications
Small wifi adapter150Mbps, mini USB interface
We are factory

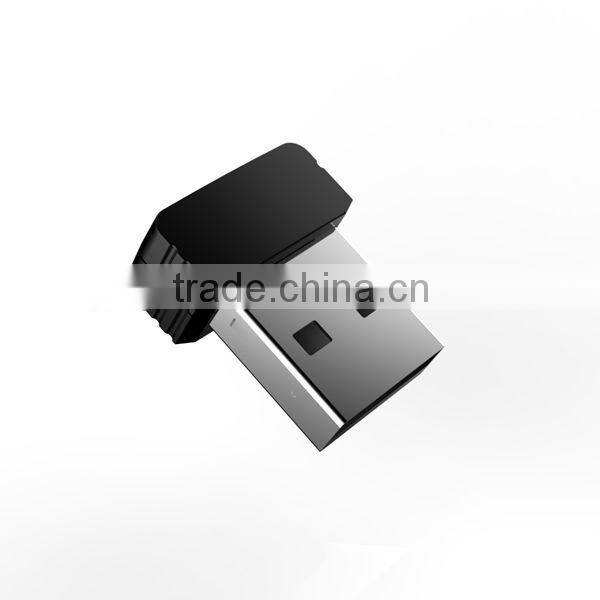

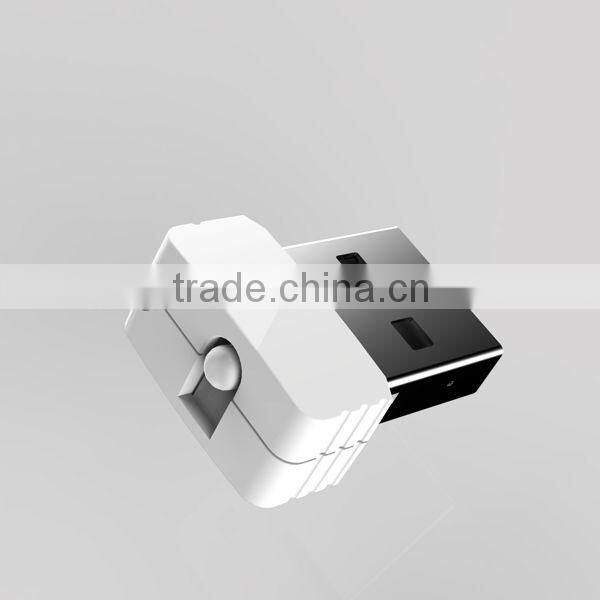

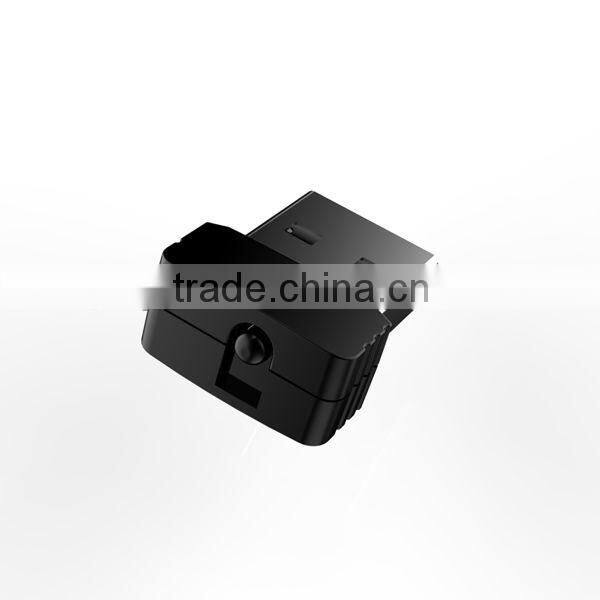

WNET New and Original Products! Portable 150M MINI USB Adapter
WT-N188R 150Mbps mini WiFi USB is an ideal powerful device for connecting desktop computer into wifi network. It features a super thin size and is very convenient to use(plug and play)!
Features FeaturesFe Fe
1.IEEE 802.11n compliance. Backwards compatible with 802.11b/g
2.Provides High-Speed USB 2.0 interface
3.1T1R Mode with 150Mbps PHY Rate for Both Transmit and Receiving.
4.Supports 20MHz/40MHz frequency
5.Supports two working modes (Infrastructure and Ad-Hoc)
6.Internal Antenna
7.Supports soft AP mode
8.1 WiFi WPS button
9.Supports 64/128-bits WEP, WPA/WPA2 Encryption
10.Supports windows XP/ Vista/ 7
Specification
Standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b |
Wireless Modes |
Ad-Hoc / Infrastructure mode |
Interface |
USB 2.0 |
Frequency Range |
2.4GHz-2.4835GHz |
Radio Data Rate |
150Mbps |
Channel |
1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan) |
Spread Spectrum |
DSSS |
Modulation |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
Transmission Distance |
Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
Receive Sensitivity@PE |
11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER |
Transmit Power |
17dBm |
Antenna |
Internal Antenna |
LED Indicator |
Status |
Data Security |
64/128-bits WEP;WPA/WPA2 |
Environment |
Operating Temperature: 0°C~40°C (32F~104F) Operating Humidity: 10%~90%RH (non-condensing) |
Dimensions |
20mmx10mmx8mm |
Safety & Emission |
FCC, CE |
