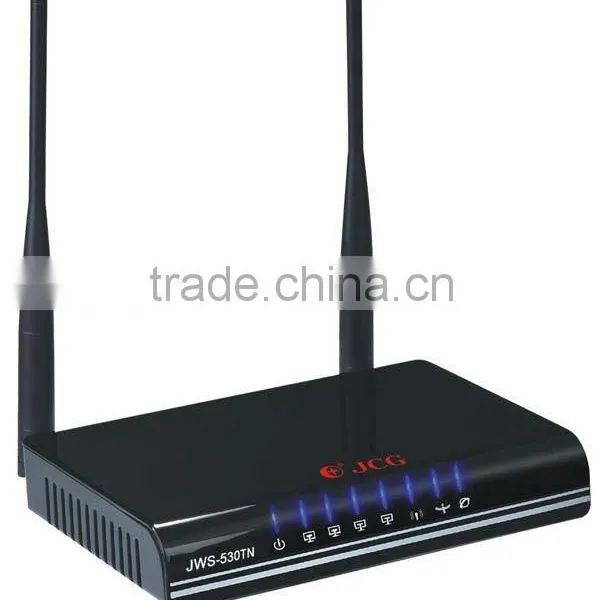

300Mbps Long Range Wireless Adsl Modem Router

Name: 300Mbps Long Range Wireless Adsl Modem Router
Brand: OEM or JCG
SKU: 106681753

US$ 10 - 15 MOQ: 2000 Pieces

Key Specifications

Products Status:

Stock

Type:

Wireless

Application:

Soho

Shenzhen Yichen Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Wireless

Application Soho

Function Firewall, QoS, VPN, Other

LAN Ports 4

WAN Ports 1

Certification CE FCC ROHS

Brand Name OEM or JCG

Model Number 530R

Place of Origin Guangdong, China

Specifications

1. 300Mbps long range wireless adsl modem router
2. High quality, good price, fast delivery
3. OEM since 1995

1. 300Mbps long range wireless adsl modem router

2. High quality, good price, fast delivery

3. OEM since 1995

Specification:

Hardware
Interface	1 * 10/100M Auto MDI/MDIX RJ45 4*RJ11
LED	PWR LAN1-LAN4 Internet ADSL WLAN WPS
Button	WPS Power

Software
Standards	IEEE 802.3,IEEE 802.3u
Data Rate	Downstream: Up to 24Mbps Upstream: Up to 1Mbps
ADSL Feature	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.992.3 ITU-T G .992.5 ITU-T K.2.1
ATM / PPP Protocol	ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225)
Main Feature	DHCP, DHCP relay NAT, Static Routing VPN (PPTP, L2TP, IPSec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP snooping V1/V2 Virtual server, DMZ, ACL (Access Control List) UPnP
Management	Web Based Configuration (HTTP), Remote management, Telnet management, command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools
Wireless Standards	IEEE802.11g, 802.11b,802.11n
Frequency Range	2.4-2.4835GHz
Wireless Speed	Up to 300Mbps
Wireless Security	Provides 64/128-bit WEP encryption security and wireless LAN ACL(Access Control List),WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
Wireless Security Power	20dBm
Antenna Type	2*5dBi

Others
Certification	CE FCC
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
Package	1 * DL4322 1 * Quick Installation Guide 1 * Power Adapter 1 * Ethernet Cable 2 * RJ11 cable 1 * Splitter
