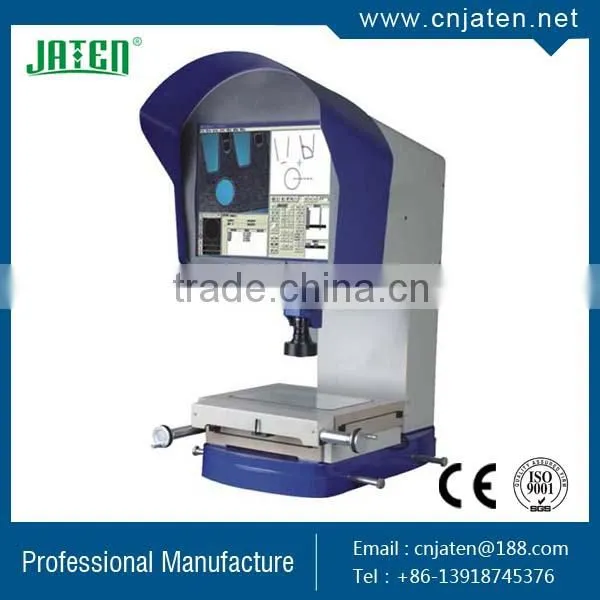

Vertical Video Projector VTC Series
Description:
l Solid framework,large LCD touch screen and advanced QM2.0 software;
l High quality optics for crisp and clear images;
l Adjustable LED surface and contour illumination;
l High resolution industrial CCD camera;
l 6.5X Detented zoom lens changable within the range of 30-190x magnification Easy to operate user interface;
l Extended function of printing,saving and exporting datd;
l Excel,word or txt multi-format report output,and DXF input and output;
l Non-contact optical height measurement;
l Automatic edge-detecting function;
l Make Save and input the program;
l Map photo and measurement;
l Dimension lable funtion;
l SPC statistical funtion.
Specifications:
Model |
VTC-2010 |
VTC-2515 |
VTC-3020 |
X/Y-axis Travel |
200x100mm |
250x150mm |
300x200mm |
Z-axis Travel |
200mm |
||
Accuracy |
≤3+L/200(um) |
||
Repeatablitily |
±2um |
||
Operation Mode |
Manual(with auto edge detection) |
||
Video Device |
1/3" color CCD camera,0.7~4.5x detented zoom lens |
||
Screen Dimension |
19"LCD touch screen monitor |
||
Video Magnification |
30X~190X(it can extend to 15X~380X) |
||
Working Distance |
92mm |
||
Measuring Software |
Quick Measuring 2.0 |
||
Max.Load Capacity |
10Kg |
||
Suitable Environment |
Workshop and Metrology Room |
||
Power supply |
AC110V/60Hz, AC220V/50Hz |
||
Dimension(D×W×H) |
760 x 650 x 1760 mm |
||
Net Weight |
150Kg |
||
Standard Delivery:
Product Name |
Product Name |
Product Name |
Measuring Software |
Color CCD Camera |
Detented Zoom Lens |
Calibration Block |
Capture Card 7130 |
Working Cupboard ST 04 |
19’’ CCD Touch Screen |
Built-in PC System |
Operation Manual |
