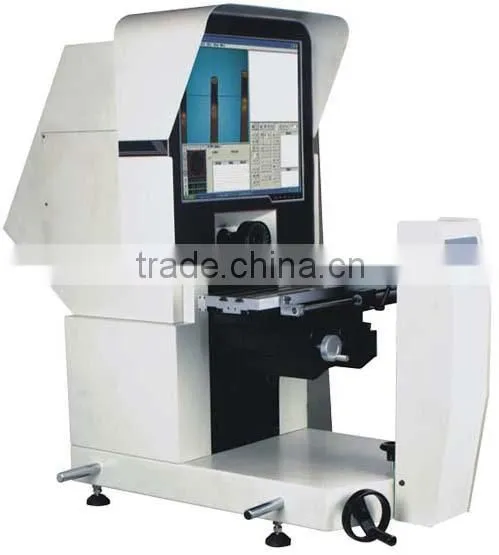

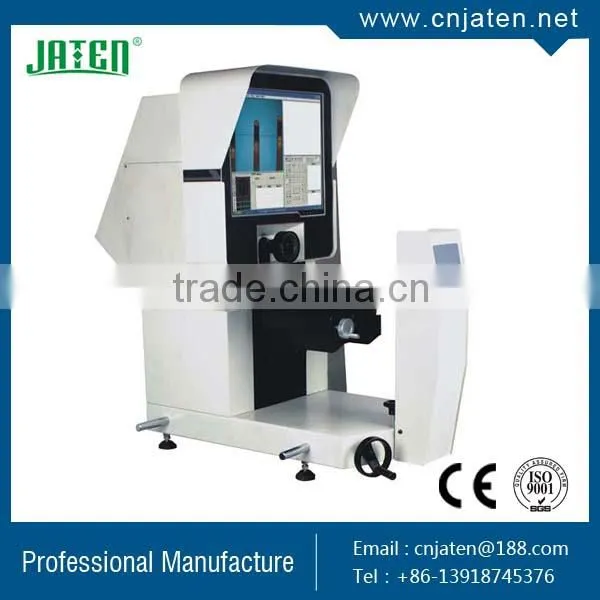

Horizontal Video Projector HV3020
Characteristics:
lSolid framework,large LCD touch screen and advanced QM2.0 software;
lHigh quality optics for crisp and clear images;
lAdjustable LED surface and contour illumination;
lHigh resolution industrial CCD camera;
l6.5X Detented zoom lens changable within the range of 30-190x magnification Easy to operate user interface;
lExtended function of printing,saving and exporting datd;
lExcel,word or txt multi-format report output,and DXF input and output;
lNon-contact optical height measurement;
lAutomatic edge-detecting function;
lMake Save and input the program;
lMap photo and measurement;
lDimension lable funtion;
lSPC statistical funtion.
Specifciations:
Model |
HV-3015 |
HV-3020 |
X/Y-axis Travel |
300x150mm |
300x150mm |
Y-axis Travel |
150mm |
200mm |
Accuracy |
≤4+L/200(um) |
|
Repeatablitily |
±2um |
|
Metal Table Size |
455x126 |
|
Operation Mode |
Manual |
|
Sway Range |
±15° |
|
Video Device |
1/3" color CCD camera,6.5x Detented zoom lens |
|
Screen Dimension |
19"LCD Touch Screen Monitor |
|
Video Magnification |
30X~190X(it can extend to 15X~380X) |
|
Working Distance |
92mm |
|
Measuring Software |
Quick Measuring 2.0 |
|
Max.Load Capacity |
15Kg |
|
Suitable Environment |
Workshop and metrology room |
|
Power Supply |
AC110V/60Hz, AC220V/50Hz |
|
Dimension(D×W×H) |
1000 x 550 x 630 mm |
|
Net Weight |
200Kg |
|
Standard Delivery
Product Name |
Product Name |
Product Name |
Measuring Software |
Color CCD Camera |
Detented Zoom Lens |
Calibration Block |
Capture Card 7130 |
Working Cupboard ST 04 |
19"LCD Touch Screen |
Built-in PC System |
Operation Manual |
For more product infomation, please check on :
Dongguan Jaten Precision Instrument Co.,Ltd
Factary Add: No.28, Songlang Street, Shangqiao Industrial Avenue,Dongcheng District, Dongguan, China.
International Marketing Add: No 1558,South Wangyuan Road, Fengxian District, Shanghai ,China.
Tel: 0086-21-68416305 Fax:0086-21-37196172
Email: cnjaten(at) Web:
Contact Export Manager:Harrison Hou
Mobile:0086-13918745376
Skype:harrison6936 WhatsApp: 0086-13918745376
Wechat:Harrison6936 QQ: 414846153
