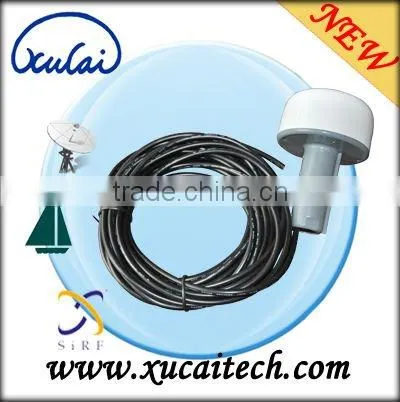

Water Proof Housing Marine GPS Antenna Receiver

Water Proof Housing Marine GPS Antenna Receiver thumbnail-1
Water Proof Housing Marine GPS Antenna Receiver photo-1
US$ 40 - 50 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Type:
Gps Receiver
Use:
Automotive
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Shenzhen Xucai Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Receiver
Use Automotive
Place of Origin China
Brand Name xucai
Model Number XC-MA97-6

Specifications

Water Proof Housing Marine GPS Antenna
1.SiRF III Chipset
2.Water Proof Housing
3.Marine GPS

Water Proof Housing Marine GPS AntennaWater Proof Housing Marine GPS Antenna receiver



Feature

Compact, high performance, and low power consumption

Adopting SiRF star III chipset

Support NMEA 0183 V3.0 and SiRF binary protocol

tracking up to 20 satellites

Very high sensitivity (Tracking Sensitivity:-159 dBm)

Extremely fast TTFF (Time To First Fix) at low signal level

Two serial ports



Suitable for the following applications:

  1. Automotive navigation
  2. Personal positioning
  3. Fleet management
  4. Mobile phone navigation
  5. Marine navigation

Specification

Physical

Housing

100%waterproof

Dimension(D×H)

92×139mm

Weight

155.50g without cable

Cable

10m(22AWG)

Color

White and Gray

Environmental:

Operating temperature:

-30°C to +85°C

Storage temperature

-40°C to +125°C

Operating humidity:

5% to 95% No condensing.

Power consumption

Acquisition: 42mA

Specification:

Receiver

Tracking up to 20 satellites

L1, 1575.42MHz C/A code

Chipset

SiRF III

Antenna Type

Built in Patch Antenna

Output protocol

NMEA0183.V.3.0

DGPS

WAAS, EGNOS, MSAS

Datum

WGS-84

Voltage Range:

5V~32V

Backup Voltage

2.0~3.6Vdc ±10%

Max update rate

1 HZ

Accuracy:



Position: 10meters, 2D RMS

        5meters, 2D RMS, WAAS enabled

Velocity: 0.1m/s

Time: 1 us synchronized to GPS time

Available baud rate

Default: GGA, GSA, GSV, RMC

Support: VTG, GLL, ZDA

SiRF binary and NMEA Command

4,800 to 57,600 bps adjustable

Acquisition Tiem



Cold Start: 42 sec (average)

Warm Start: 38 sec (average)

Hot Start: 1 sec (average)

Reacquisition

0.1 second, average

Dynamics

Altitude: 18,000m (max)

Velocity: 515m/sec (max)

Acceleration: 4G (max)

Box & weight:

(D×H):92×139mm / 630.00g

What’s in box



Water Proof Housing Marine GPS Antenna receiver



Water Proof Housing Marine GPS Antenna receiver
