2.5D Manual Image Measuring Instrument Price

Name: 2.5D Manual Image Measuring Instrument Price
Brand: Jaten
SKU: 106649741
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number DV

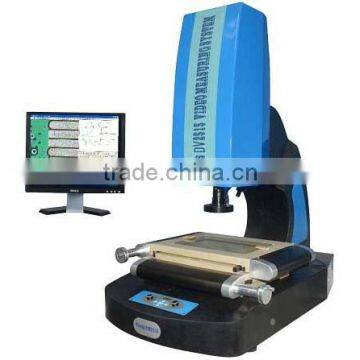

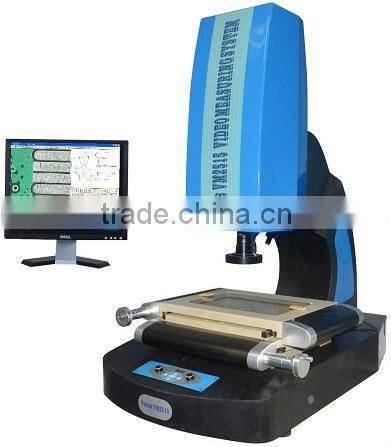

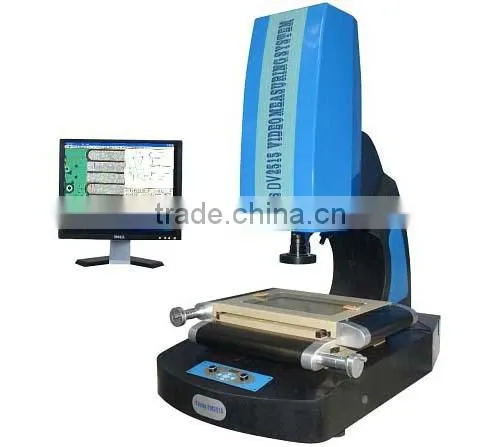

2.5D Manual Image Measuring Instrument Vexus DV Series

Description:

l Be Applied to Mechanical ,,Electronic ,Plastic Fields etc.

l Fashionable Shape With Stable Ark Pillar Granite Design.

l Adjustable 4-division LED Illuminator controled by panel or software

l Obviously assistant laser position system

l Powerful Measuring Software Quick Measuring Version

l Function of Data Processing,Displaying,Input,Output,

l With RS-232 Interface

Specifications:

Model	DV-2515	DV-3020	DV-4030
Metal Table Size(mm)	408X308	458X358	458X558
Glass Table Size(mm)	306X196	350X250	450X350
X,Y-axis Travel(mm)	250X150	300X200	400X300
Z-axis Travel(mm)	250	250	250
Resolution(mm)	0.0005	0.0005	0.0005
X,Y-axis Accuracy(um)	≤3+L/200	≤3+L/200	≤3+L/200
Measuring Software	Quick Measuring	Quick Measuring	Quick Measuring
Net Weight(kg)	320	460	540
Dimensios(mm)	926X612X1082	930X670X1100	1080X770X1110
Video System	High Resolution Color CCD Camera , 0.7~4.5 Zoom Lens, Video Total Magnification:30X~230X(with 2X Additional lens, to Total Magnification440X), Object View:7~1.1mm 4-division LED adjustable Illuminator
Power	180V~260V(AC),50HZ
