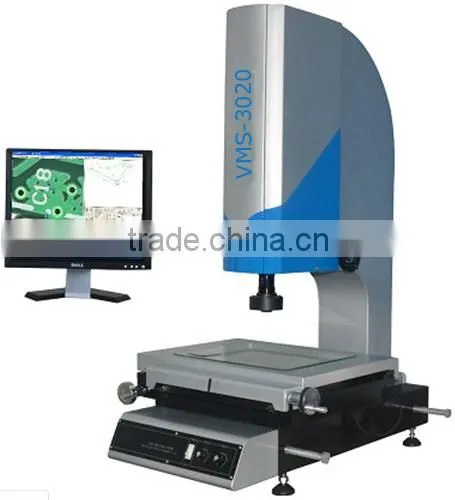

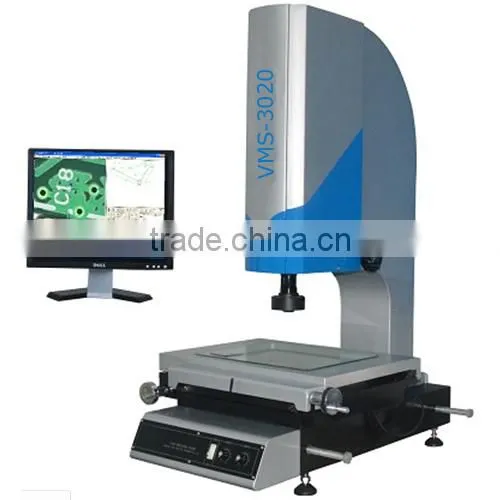

2D Manual Image Measuring Instrument VMS Series
Description:
l Be Applied to Mechanical ,,Electronic ,Plastic Fields etc.
l Function of Data Processing,Displaying,Input,Output,
l With RS-232 Interface
l With Quick Measuring Software
l Obviously assistant laser position system
Specifications:
Model |
VMS-1510 |
VMS-2010 |
VMS-2515 |
VMS-3020 |
VMS-4030 |
Metal Table Size(mm) |
354X228 |
404X228 |
450X280 |
506X356 |
606X466 |
Glass Table Size(mm) |
210X160 |
260X160 |
306X196 |
350X280 |
450X350 |
X,Y-axis Travel(mm) |
150X100 |
200X100 |
250X150 |
300X200 |
400X300 |
Z-axis Travel(mm) |
200 |
200 |
200 |
200 |
300 |
Resolution(mm) |
0.0005 |
0.0005 |
0.0005 |
0.0005 |
0.0005 |
X,Y-axis Accuracy(um) |
≤3+L/200 |
≤3+L/200 |
≤3+L/200 |
≤3+L/200 |
≤3+L/200 |
Measuring Software |
Standard |
Standard |
Standard |
Standard |
Standard |
Net Weight(kg) |
100 |
110 |
120 |
200 |
240 |
Dimensios(mm) |
600x530x950 |
600x550x920 |
690x550x1020 |
780x600x1060 |
945x646x1096 |
Video System |
1/3“ Color CCD Camera , 0.7~4.5 Zoom Lens, Video Total Magnification:30X~230X , Object View:7~1.1mm LED adjustable Light Source |
||||
Power |
180V~260V(AC),50HZ |
||||
Packing list:
Packing List |
Packing List |
Packing List |
Quick Measuring Software |
CCD Camera |
Zoom lens 0.7~4.5X |
Calibration Block |
Capture Card |
LED Light Source |
Power,AV,RS232 Cable |
Scale Transfer |
Dell PC System |
Optional Items:
Optional Items |
Optional Items |
Optional Items |
Digital Read Out DP100 |
Navitar Click Zoom lens |
Rotary Table |
Digital Read Out DP300 |
Navitar Coaxial Zom Lens |
Rotary Table |
Foot-Switch |
Sony CCD Camera |
Working Cupboard |
