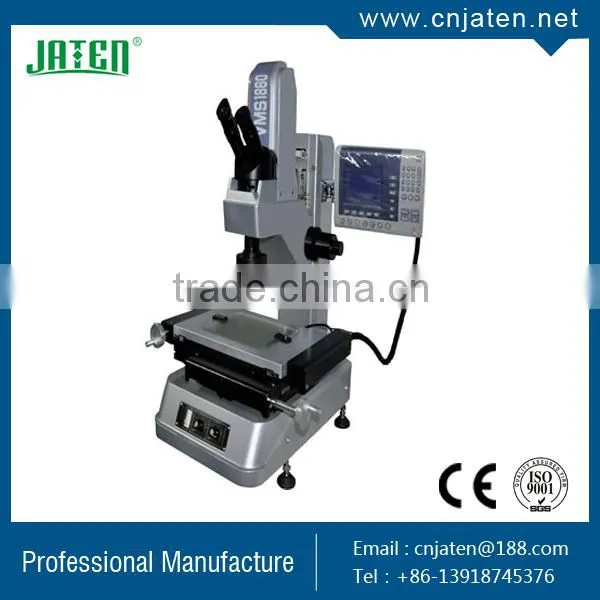

Help CenterVMS 1860/1960 Toolmaker Microscope
Related Products
-
GX2515-IIA Toolmaker MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set -
GX2010-IIA Toolmaker MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
-
GX3020-IIA Toolmaker MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
-
GX3020-IIA Measuring MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
-
GX2010-IIA Measuring MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
Description:
l Multiple Data Measurement ,Micro Amplification,Input &Output Data Processing Functions
l Ultra Fine Digital Color CCD Camera with C-mount Interface,Which can input and output measuring result,data,and save image to meet different customers’ requirements
l With Quick Measuring Software for Auto Tracing .
l Precision working stage travel
l Digital moving resolution : 0.5um;
l Multifunctional digital readout : DP300;
l Angle measurement device : mechanical wheel and digital angle measurement;
l Standard magnification
l Adjustable ring LED illumination.
Specifications:
Model |
VMS1860 |
VMS1960 |
Metal Stage Size(mm) |
354x228 |
404X228 |
Glass Stage Size(mm) |
210x160 |
260X160 |
Working Stage Size(mm) |
150x100 |
200x100 |
Z-axis Travel Range(mm) |
150(For Focusing) |
150(For Focusing) |
X,Y-axis Accuracy |
≤(3+L/150)μm |
|
Resolution |
0.0005mm |
|
Measuring Device |
Digital Readout DP300 |
|
Objective.Magnification |
1x(standard), 2x(optional) |
|
Eyepiece.Magnification |
10X |
1/3″CCD |
Total Magnification |
30X-230X(with 2X Objective ,Magnification up to 440X) |
|
Objective Error |
≤0.08% |
Video Resolution: 640X480 |
Eyepiece Protractor Range |
360° |
|
Eyepiece Protractor Graduation |
1° |
|
Vernier angle reading |
6′ |
|
Contour illumination |
12V Ring LED illumination brightness adjustable |
|
Surface illumination |
12V Ring LED illumination brightness adjustable |
|
Instrument Dimensions |
530X550X600 mm |
670X660X950 mm |
Instrument Weight |
98kg |
110kg |
Power Supply |
AC110V/60Hz; 220Hz/50Hz |
|
Standard Delivery
Items |
Items |
Items |
Mainframe |
Power Cable |
0.7~4.5x Zoom Lens |
CCD Camera |
Fuse |
Instruction Manual |
For more product infomation, please check on :
