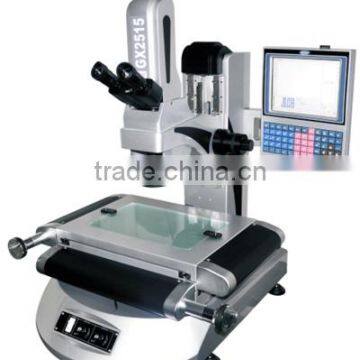

Help CenterGX3020-IIA Measuring Microscope
Related Products
-
GX2010-IIA Measuring MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set -
GX2515-IIA Measuring MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
-
STM 2010 Toolmaker MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
-
STM 2515 Toolmaker Measuring MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
-
STM 2515 Measuring MicroscopeUS$ 1,000 - 10,000MOQ: 1 Set
Product Features:
l Multiple Data Measurement ,Micro Amplification,Input &Output Data Processing Functions
l Ultra Fine Digital Color CCD Camera with C-mount Interface,Which can input and output measuring result,data,and save image to meet different customers’ requirements
l With Quick Measuring Software for Auto Tracing .
l High-power Metallurgical Measuring System
l Non-contact Observation & Measuring
l Multi-view Rotate Stage Objectives
l Widely used for crystal,integrated circuit examination and precision measurements.
l Video Display and 30° eyepiece observing
l Zoom objective magnification 1.0X~6.5X
l Contour surface and LED coaxial illumination three types illumination adjustable
l High resolution in focus all the zoom couse
l 0.5X CCD adapter 0.5X,2X and 5X APO auxiliary objective available
l Multifunction data processing system DRO DP600 and Quick Measuring Software available
l Excel, Word and TXT Multi-format report output ,and DXF input and output
l Non-contact optical height measurement
Specifications:
Model |
GX2010-IIA |
GX2515-IIA |
GX3020-IIA |
|
Metal Stage Size(mm) |
408X280 |
458X358 |
558X458 |
|
Glass Stage Size(mm) |
306X196 |
350X280 |
450X350 |
|
X-Y Travel Range(mm) |
200X100 |
250x150 |
300X200 |
|
Z-axis Travel Range(mm) |
150(For Focusing) |
|||
Linear Scale |
High-Precision Linear Scale 0.0005mm Resolution |
|||
X,Y,Z-axis Accuracy |
≤(3+L/200)μm |
|||
Microscope System |
Eyepiece:High-eye-point and wide-field Eyepiece Objective:Zoom Stereo Objectives:1.5X-10X Optical Magnification:63.5X~423X(Extend to 32X~2115X) Trinocular Microscope Head,Inclined at 30° Interpupillary Distance:55~75 mm |
|||
Digital Magnification System |
1/3 “ Color CCD Camera ,1X CCD Adaptor |
|||
Digital Magnification:30X~230X(it can extend to 15X~1150X) | ||||
Illumination |
Contour |
Adjustable 256-frade LED Illumination |
||
Surface | ||||
Coaxial |
Adjustable LED Coaxial Illumination |
|||
Digital Measuring System |
Digital Readout DP600 |
|||
HP/DELL PC System with 17” quadrate monitor | ||||
Quick Measuring Software | ||||
Net Weight |
120kg |
|||
Instrument Dimensions |
530x540x850 mm |
|||
Package Sizes |
640x540x950 mm |
|||
Standard Delivery:
10x Eyepiece |
LED Illumination |
DP600 Digital Readout |
Measuring Software |
Standard Block |
Color CCD Camera |
Capture Card |
RS232 Cable |
Operation Manual |
LED Coaxial Illumination |
Zoom Stereo Microscope |
PC System |
