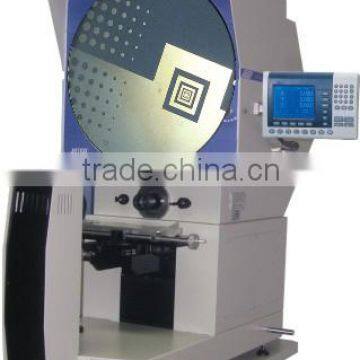

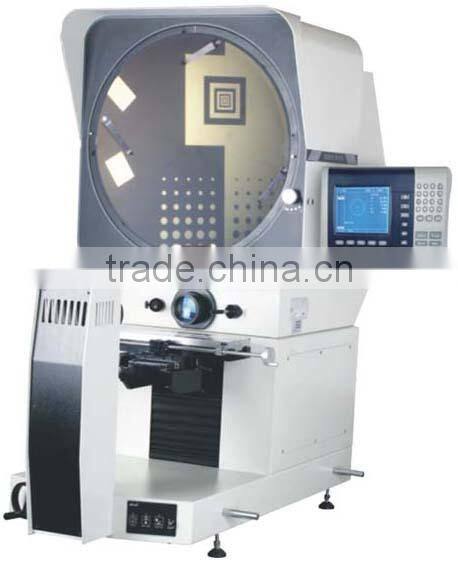

Optical Profile Projector HB24
HB24 Product Features:
- 600mm diameter screen with digital protractor;
- 300x150mm precision movement work-stage, 300x200mm optional;
- Work-stage sway range between 15°;
- Halogen profile and fiber surface illumination adjustable;
- Geometric multifunction data processing system DRO DP300;
- Built-in Mini-printer;
- Available 10x,20x objective rotary table, working cupboard and foot-switch, etc.
Specifications:
Reverse Image |
HB24-3015 |
Obverse Image |
HB24-3015Z |
Metal Stage Size |
455 x 126mm |
Stage Travel: X and Y-axis |
300 x 150mm |
Stage Travel:Y-axis |
125mm (for focusing) |
X and Z Linear Resolution |
0.0005 mm |
Sway Range |
±15° |
Accuracy |
≤3+L/200(um) |
Screen |
Diameter :Ø625mm,Effective Range ≥ Ø600(with “* ” Reticle) |
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° | |
Digital Readout |
DP 300 (561-301) Multifunctional Data Processing System |
Illumination |
Contour illumination:24v/150w (halogen Lamp ) |
Surface illumination:21v/150w (Optical Fiber) | |
Power Supply |
AC110V/60Hz; 220V/50Hz, 650W |
Dimension (D×W×H) |
1620 x750 x 1400mm |
Packing Dimension (L×W×H) |
1790 x 890 x 1520mm |
Gross/Net Weight |
300/250Kg |
Standard Delivery:
Product Name |
Product Name |
Product Name |
Digital Readout DP300 |
HB24-10X Objective |
Screen Clamp Device |
Built-in Mini-printer |
Power Cable |
Operation Manual |
Optional Accessories:
Product Name |
Product Name |
Product Name |
Measuring Software |
Rotary Vise |
Printer Paper |
20X Objective |
50X/100X Objective |
Standard Block |
Holder Clamp |
V-shape Clamp |
Swivel Center Support |
Working Cupboard |
Over-Chart |
Foot-Switch |
