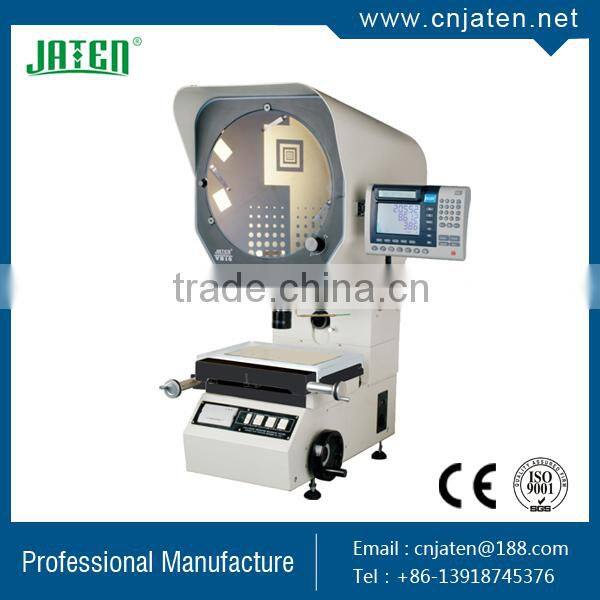

VB16-2515Z 400mm Digital Measuring Vertical Profile Projector
Product Features :
l 400mm diameter screen with digital protractor;
l Projector Body lifting system to focus;
l 250X150mm precision movement work-stage;
l Halogen profile and surface illumination adjustable;
l Geometric multifunction data processing system upgrade to DRO DP300;
l Built-in Mini-printer;
l Available 10x,20x,50x objective, rotary table, foot-switch, etc.
Specifications:
Reverse Image |
VB16-2515 |
Obverse Image |
VB16-2515Z |
Metal Stage Size |
408 x 308mm |
Glass Stage Size |
305x 197mm |
Stage Travel: X and Y-axis |
250 x 150mm |
Stage Travel: Z-axis |
100mm (for focusing) |
Accuracy |
≤3+L/200(um) |
Resolution of X and Y-scale |
0.0005 mm |
Screen |
Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle) |
Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01° | |
Digital Readout |
DP 300 Multifunctional Data Processing System |
Illumination |
24v/150w halogen lamp (adjustable) |
Cooling System |
Forced Cooling (3-axis-fans) |
Power Supply |
AC110V/60Hz; 220V/50Hz, 400W |
Dimension (D×W×H) |
868 x 556 x 1163mm |
Packing Dimension (L×W×H) |
1540 x 790 x 1500mm |
Gross/Net Weight |
260/220Kg |
Standard Delivery:
Product Name |
Product Name |
Product Name |
Digital Readout DP300 |
10X Objective |
Screen Clamp Device |
Built-in Mini-printer |
Transmitted lens |
Operation Manual |
Optional accessories:
Product Name |
Product Name |
Product Name |
Measuring Software |
Rotary Table |
5x/100x Objectives |
20X Objective |
50X Objective |
Printer Paper |
Holder Clamp |
V-shape Clamp |
Swivel Center Support |
Working Cupboard |
Foot-switch |
Standard Block |
For more infomation , please check on :
