Optical Profile Projector HB12-2010Z

Name: Optical Profile Projector HB12-2010Z
Brand: Jaten
SKU: 106648917
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

HB12-2010Z

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number HB12-2010Z

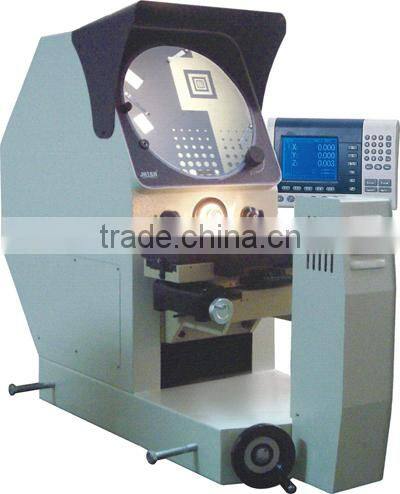

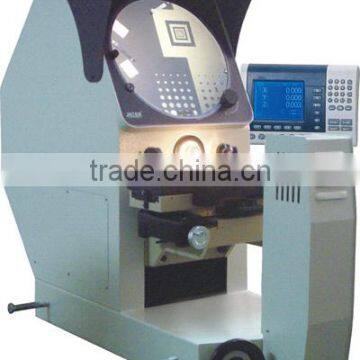

Optical Profile Projector HB12-2010Z

HB12-2010 Product Features:

l 300mm diameter screen with digital protractor;

l 200X100mm precision movement work-stage;

l Work-stage sway range between ±15°;

l Halogen profile and fiber surface illumination adjustable;

l Geometric multifunction data processing system DRO DP300;

l Built-in Mini-printer;

l Available 10x,20x,50x, objective rotary table and foot-switch, etc.

Specifications:

Reverse Image	HB12-2010
Obverse Image	HB12-2010Z
Metal Stage Size	408 x 126mm
Stage Travel: X and Y-axis	200 x 100mm
Stage Travel:Y-axis	75mm (for focusing)
X and Z Linear Resolution	0.0005 mm
Sway Range	±15°
Accuracy	≤3+L/200(um)
Screen	Diameter :Ø330mm,Effective Range ≥ Ø300(with “* ” Reticle)
Screen	Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout	DP 300 (561-301) Multifunctional Data Processing System
Illumination	Contour illumination:24v/150w (halogen Lamp )
Illumination	Surface illumination:21v/150w (Optical Fiber)
Power Supply	AC110V/60Hz; 220V/50Hz, 650W
Dimension (D×W×H)	1160 x 600 x 960mm
Packing Dimension (L×W×H)	1300 x 880 x 1250mm
Gross/Net Weight	200/160Kg
