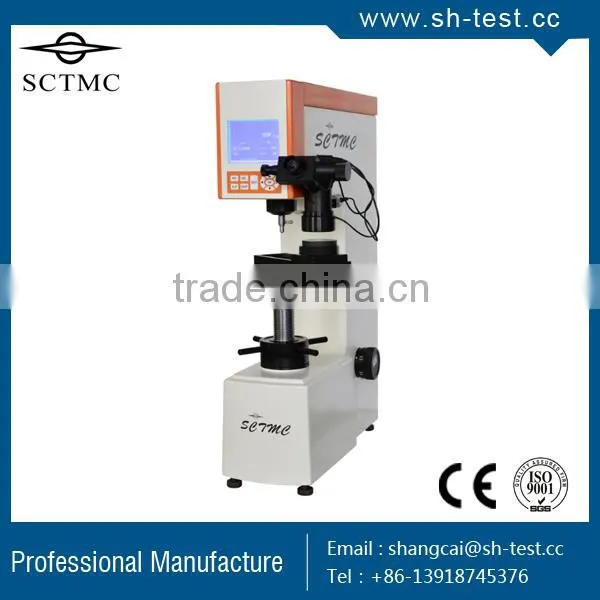

570HAD Digital Universal Hardness Tester

570HAD Digital Universal Hardness Tester thumbnail-1
570HAD Digital Universal Hardness Tester thumbnail-2
570HAD Digital Universal Hardness Tester photo-1
570HAD Digital Universal Hardness Tester photo-2
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SCTMC
Model Number:
570HAD
Contact Supplier Request Quote Chat Now
Shanghai Houstec Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SCTMC
Model Number 570HAD



u 570HAD Instrument Description:



l 570HAD is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.

l 570HAD equip 7-testing-foce and 5-indenter, it is universal to measure a most of metal material.

l 570HAD dwell time from 2 to 60S can be setup by the “time key” inside the LCD panel, it is much convenient than the setup on the manual hardness tester.

l 570HAD loading ,dwell and unloading is driven by electronic motor automatically , doesn’t need the operator to handle it, it eliminates the human operating error maximum.

l 570HAD doesn’t need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.



u 570HAD Technical Specifications:



Product Name

Digital Universal Hardness Tester

Model

570HAD

Rockwell Scales

HRA, HRB, HRC

Rockwell Testing Force

60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)

Brinell Scales

HBW1/30,HBW2.5/62.5,HBW10/100,HBW2.5/187.5

Brinell Testing Force

31.25Kgf(306.5N),62.5Kgf(612.9N,187.5Kgf(1839N)

Vickers Scales

HV 30,HV100

Vickers Testing Force

30Kgf(294.2N),100Kgf(980.7N)

Rockwell Hardness Indication

Digital LCD display

Rockwell Resolution

0.1HR

Loading Control

Automatic

Data Output

RS 232/Printer

Magnification of Microscope

Brinell:37.5x; Viceers:75x

Dwell Time

2~60s

Max. Height Of Specimen

Rockwell:170mm; Brinell, Vickers:140mm

Instrument Throat

165mm

Dimension(LxWxH)

520 x215 x700mm

Packing Dimension

630 x440 x960mm

Gross/Net Weight

120Kg/90Kg

Execution Standard

GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18



u 570HAD Standard Packing List:



Standard Delivery

Standard Delivery

Standard Delivery

Hardness Block (57-70)HRC

Ø5mm Brinell Ball Indenter

Mini-Printer

Hardness Block (20-33)HRC

Rockwell Cone Diamond Indenter

2.5x Brinell Objective

Hardness Block (85-100)HRB

Vickers Indenter

5x Vickers Objective

Vickers Hardness Block HV 30

Ø 150mm Flat Anvil

Power Cable

HBW2.5/187.5 Hardness Block

Ø 55mm V-shape Anvil

Accessories Box

Ø1.588mm  Ball Indenter

Ø 55mm Flat Anvil

Instrument Manual

Ø2.5mm Ball Indenter

15x Analogue Eyepiece

Level Screw

                                                               ( )
