Help CenterCompression Machines
US$ 2,500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
LH
Model Number:
YAW-300B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Flexure Testing Machine & Compression Testing Machine (electro-hydraulic)US$ 2,000 - 2,500MOQ: 1 Set -
Compression Testing MachineUS$ 2,000 - 3,000MOQ: 1 Set
-
Flexual and Compression MachineUS$ 2,000 - 3,000MOQ: 1 Set
-
Duodenary Direct Shear Pre-pressing ApparatusNegotiableMOQ: 1 Set
-
Cross Plate Shear ApparatusUS$ 500 - 2,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
LH
Model Number
YAW-300B
Power
Hydraulic
Usage
Compression Testing Machine
Specifications
Compression Machines1. Max testing power: 300KN
2. Used for the brick, stone, cement, concrete.
Compression Machines
Introduction
YAW-300-type testing machine is mainly used for the brick, stone, cement, concrete.
Main Performance Indicators
1 |
Biggest test |
300kN |
2 |
Test force measurement range |
4% -100% FS |
3 |
Test Force showed the relative error |
≤ ± 1% |
4 |
Test Force Resolution |
0.01kN |
5 |
Rated pressure hydraulic pump |
25MPa |
6 |
Loading rate |
0.3KN / S ~ 10KN / S |
7 |
Error loading speed of |
± 5% |
8 |
Pump rated flow |
1.52L/min |
9 |
Upper and lower bearing plate size |
φ 155mm |
10 |
Maximum distance between the upper and lower plate |
260mm |
11 |
Piston diameter |
φ 130mm |
12 |
Piston stroke |
60mm |
13 |
Motor Power |
0.75 kW three-phase |
14 |
Host Dimension |
870 × 450 × 1400mm |
15 |
Weight |
450Kg |
Automatic pressure testing machine

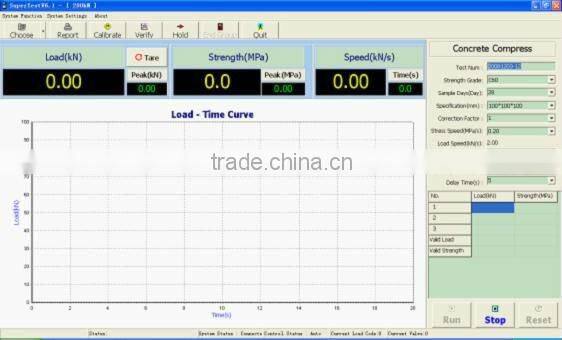

The main interface
