Specifications
Digital Rotational Viscometer1.Measuring Range:1-100000 mPa.s
2.Rotating Speed:6, 12, 30, 60 RPM

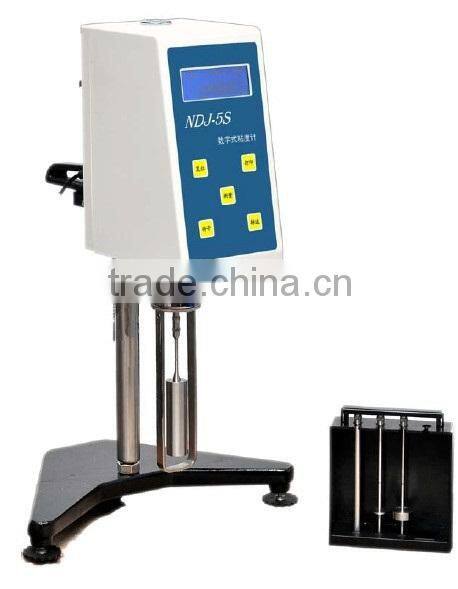

Digital Rotational Viscometer Model NDJ-5S
Summary

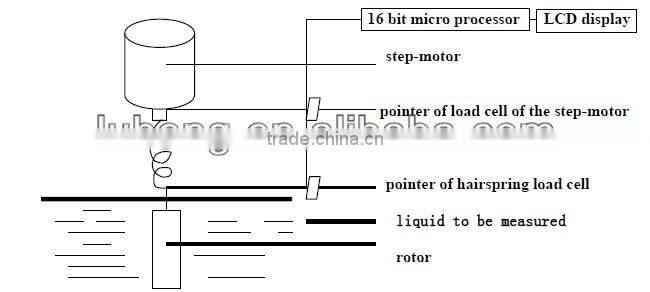

NDJ Series Viscosity Meter is a digital display viscosity meter by adopting the high subsection driven step-motor and 16 bit micro-computer controlled processor with a LCD night visual display. The said meter is stable and accurate in motion, definitude in key demonstration, programmable in design, easy for operation. The display directly demonstrates the viscosity, rotating speed, rotor number and the maximum viscosity measured for the rotor selected for the current rotating speed. The main controlling board, subsection driven board are all manufactured by adopting the Surface Mount Technology (SMT). The circuit is adopted by the micro processor that is most advance at present, with compact and reasonable structure. The RS232 is provided. The space for printing can be set up by the user. The full range and linearity at points are adjusted by PC interface . Its performance and functions have reached to the advanced level compared with the similar product in other countries.
NDJ Series Viscosity Meter are used in checking the viscous resistance and dynamical viscosity of liquid. It is widely used in measuring the viscosity of various liquid such as grease, painting, foodstuff, dope, paper making, cosmetics, chemical industry, capsule stickiness agent and medicines.
Main technical specification and parameters
1. Measurement range: 1 mPa·s~100000 mPa·s
2. Spindle: Rotors NO.1,2,3,4 is equipped with the product; Rotor No.0 is a part optional
3. Rotation speed: 6 RPM, 12 RPM, 30 RPM, and 60 RPM
4. Measuring accuracy: ±1.0% (F.S)
5. Power supply: Power adapter ( input 220V 50±1Hz, output 15V 1.2A)
6. Return Capacity: 0.5%
7. Relative humidity: ≤ 80%
Features:
1.Stepping Motor means Accurate,reliable operation
2.Direct readout of all measurement parameters
3.Auto Range Showing
4.Time Function for measurement
5.Sound alarm at under 20% Torque
6.Linear calibration
7.Wide range power supply:100V-240V
Optional Accessories:
1.Circulating Water bath
2.Low Viscosity Adapter:
3.Standard Oils
4.Micro Printer
5.RTD Temperature Probe
6.Glass Beaker With Circulation
Digital rotational viscometer, rotary viscosimeter, rotating viscosimeter , rotating cylinder viscometer, Rotating Viscosity Meter , fluid meter, Caplastometer
