Specifications
Kinematic Viscometer / Capillary Viscometer-Automatic type
-Controlling accuracy: 0.1 centigrade

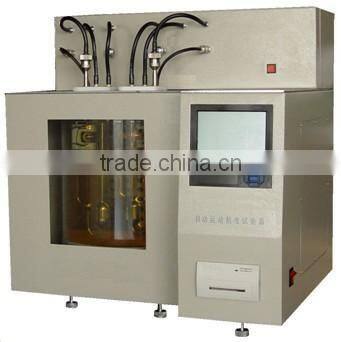

Automatic Kinematic Viscometer for Petroleum Products Model SLH-265H-1
Summary
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and GB/T1632-93 Test Methods for Viscosity Number and Limiting Viscosity Number of Polymers in Dilute Solution. It is suitable to determine Kinematic viscosity, viscosity number, and limiting viscosity number of oils and polymer in dilute solution. It has been widely used in the field of pharmaceutics, petroleum, chemistry, scientific research, and metrology.
I. Main technical features
1. This instrument adopts micro-computer as the central control component. It achieves prompt type operation.
2. This instrument can intelligently control the whole procedure of the test. It achieves the full automation of keeping temperature constant, time detection, viscosity calculation, viscometer tube cleaning and drying, and automatically print out test result.
3. This instrument has ability of fault identification and processing. It is convenient for user to analyze and judge the condition of instrument.
II. Main technical specifications
1. Viscometer tube: Ubbelohde viscometer (Dilution type); as per GB/T1632-93
2. Measurement accuracy: As per GB/T265, GB/T1632-93
3. Temperature controlling range: Room temperature~100 °C
4. Temperature controlling accuracy: ±0.1°C
5. Timing accuracy: ±0.1 s
6. Maximum timing time: 999.9 s
7. Power supply: AC 220V±10%, 50 Hz
8. Maximum power consumption: 2000 W
9. Ambient temperature: 0°C~40°C
10. Relative humidity: 20~90% at 40 °C
11. Barometric pressure: 96 kPa~103 kPa
12. Dimension: 800mm×530mm×610mm(circulating bath and vacuum suction apparatus are not included )
Note: The instrument is equipped with four pieces of Ubbelohde viscometer tubes in standard packing list. The inner diameters for each is 0.8mm,1.0mm,1.2mm and 1.5mm. If the user need other kinds of viscometer,pls inform us for customizing.
Petroleum products kinematic viscosity tester , Oil Kinematic viscometer, Kinematic viscosity testing machine, Kinematic viscosity testing apparatus, Oil Kinematic viscosity test device,Kinematic viscosimeter, Capillary Viscometer
