600KN Computer Screen Display Steel Strand Testing Machine / Universal Testing Machine

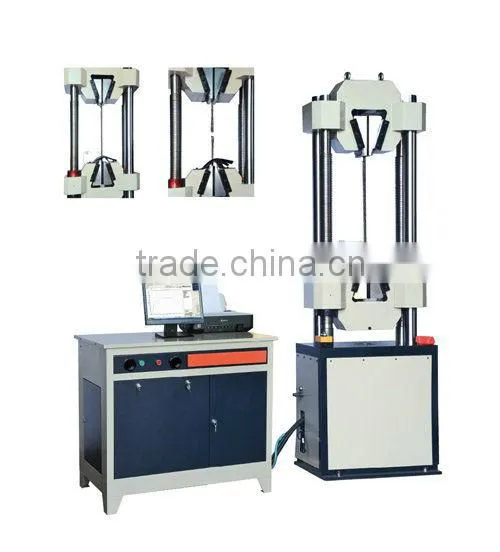

GWE-600B Screen display testing machine for steel strand is dedicated to test the mechanical properties of pre-stressed steel strand, The machine is equipped with Lenovo computers, HP printers, large gauge electronic extensometers, optical encoder, and full-featured general-purpose test software, users can easily finish the test. Besides, the specialized steel strand extension jaw can ensure fracture in the sample middle; further improve the test success rate. You can check and print test results (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time, deformation - time) six curve and related test data with the software self-test function that can self-diagnose problems(for details, please refer to software instructions). This machine can test strand tensile strength, non-proportional extension strength, elastic modulus, elongation and other mechanical properties.
It is widely used in industrial and mining enterprises, research institutes, universities, engineering quality supervision station and other departments
Technical parameters:
1. Max load:600kN
2. Test Force showed the relative error: ≤±1% indicating value
3. Test Force Resolution: 0.01kN
4. Displacement measurement resolution: 0.01mm
5. Deformation measurement accuracy: 0.01mm
6. Maximum tensile test space: 1000mm
7. Compression space: 600mm
8. Piston stroke: 150mm
9. Clamping diameter of round sample: 15.20mm(or other specifications )
10. Upper and lower compress plates size: φ160mm
11. Distance Between Two Column: 450 mm
12. Maximum move speed of piston: 50mm/min
13. Clamping method: Automatic clamping
14. Host machine outside size: 720×580×2350 mm
15. Weight: 2600 kg
