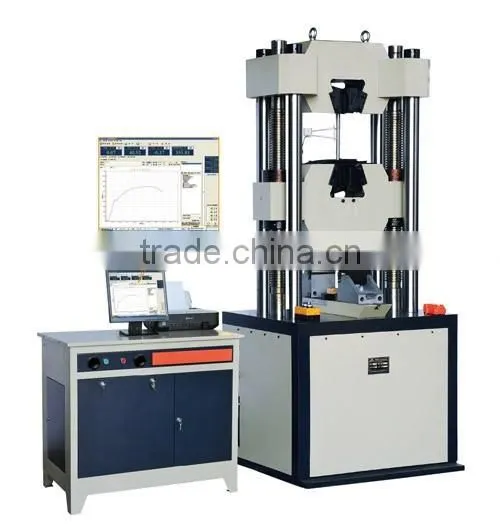

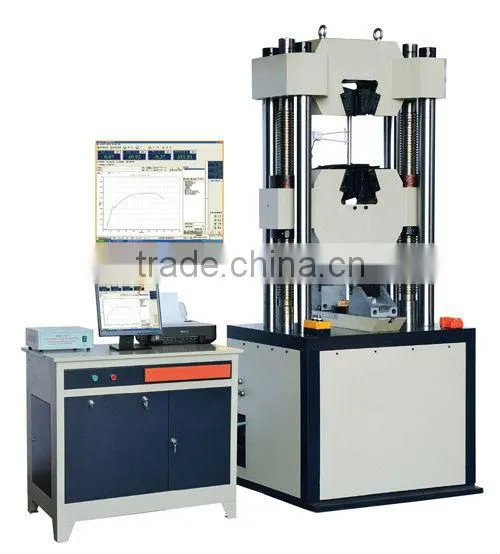

1000KN Computer Screen Display Hydraulic Universal Testing Machine
WEW-1000D computer display universal testing machine is used for tensile test, compression test, bending test and shearing test of metal and nonmetal materials. Equipped with computer, printer, electronic extensometer, optical-electricity encoder and other testing software, WEW computer display testing machine can accurately test the tensile strength, yield strength, non-proportional extension strength, elongation rate, elastic modulus and other mechanical properties of metal materials. Six curve graphs including force-displacement, force-deformation, stress-displacement, stress-deformation, force-time and deformation-time, and other test data can be printed. The self-checking function ensures problem diagnosis automatically. It is widely used in industrial and mining enterprises, scientific research institutes and engineering quality supervision station.
Features:
1. Supports tensile test, compression test, bending test and shearing test;
2. Supports self-defined testing parameters;
3. Supports open EXCEL report form; users can define the report format based on their own needs;
4. Has self-analysis function;
5. Supports management by level (administrator and tester);
6. Simple, reliable and flexible;
7. Meets national standard GB228-2002.
8. Four column structure
Technical parameters:
1. Model: WEW-1000D
2. Max. force : 1000KN
3. Relative error: ≤±1%
4. Accuracy of capacity measurement: 0.01KN
5. Accuracy resolution of displacement: 0.01mm
6. Accuracy of deformation measurement: 0.01mm
7. Max.Tensile space:: 750mm
8. Max.Compression space: 380mm
9. Piston move length: 150mm
10. Clamping mode: Automatic
11. Clamping diameter of round sample: φ13-40mm
12. Clamping width of flat sample: 75mm
13. Thickness of specimen clamping: 0-15 mm
14. Diameter of shearing specimens: 10 mm ( Option )
15. Top and lower pressboard size: φ160(or 204×204)mm
16. Max. distance between bending supports : 450mm
17. Distance Between Two Column: 550mm
18. Piston speed: 50mm/min
19. Power of oil pump motor: 1.1kw
20. Dimension: 900×710×2200 mm
21. Weight : 3200 kg
1. Outside packeg: standard export wooden case
2. Inside package: strength film
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
