Specifications
Measurement parameters:cond, TDS, Res,Sal,temperature.meets IP 54 dustproof and slopeproof, only serial number of product
For normal solution for measuring the conductivity, especially in the areas of education and research used.
Features
1.Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
2.There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
3.Equips Conductivity/ATC electrode. Its measurement result is fast and precise.
4.Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
5.Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
6.Meter has the only product serial number.
7.Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
Specifications
| Conductivity | Measuring range | Conductivity:0.00~20.00μS/cm ,20.0~200.0μS/cm, 200~2000μS/cm , 2.00~20.00mS/cm, 20.0~200.0mS/cm |
| Resistivity:(0 ~ 100)MΩ·cm | ||
| TDS: (0 ~ 100)g/L | ||
| Salinity: (0 ~ 100)ppt | ||
| Resolution | 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm | |
| Accuracy | Meter:±0.5% FS,connect meter with electrode:±0.80% FS | |
| Temp. compensation range | (0 ~ 50)°C(automatic ) | |
| Electrode constant | 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1 | |
| Reference temperature | 25°C,20°C and 18°C | |
| Temperature | Measuring range | -10°C~ 110°C |
| Resolution | 0.1°C | |
| Accuracy | 5~ 60°Crange:±0.4°C other range:±0.8°C | |
| Other Technical Parameters: | Data storage | 300 groups |
| Storage content | Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time | |
| Power | DC9V/300mA | |
| Communication connector | RS232 | |
| Size and weight | 160 × 190 × 70mm/880g | |
| Working Condition | Environment temperature | 5 ~ 35 °C(0.01grade) 15 ~ 30 °C(0.001grade) |
| Environmental humidity | ≤75% | |
| IP rating | IP54 Dustproof and waterproof |
Stand Kit included
1. Model MP513 lab conductivity meter 1 unit
2. Model 602 flexible electrode holder 1pc
3. 2301T-M plastic pH/ATC three-in-one combination electrode 1 pc
4. 1413μS/cm conductivity standard solution (50mL) 2 bottles
5. 9V power adapter 1pc
6. RS-232 communication cable 1pc
7. MP513 communication software CD 1pc
8. Operation manual 1 unit
9. Brief operation manual 1 unit
10. Packing List 1 pc

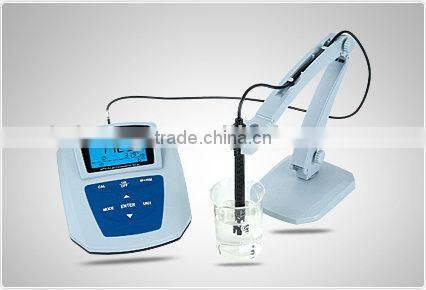

MP513 Lab Conductivity Meter
Optional accessories
| Accessory Categry | Description | Specifications |
| Conductivity Electrode | DJS-0.1-M Pure water conductivity electrode | K=0.1 cm-1,Automatic temperature compensation, for testing the conductivity of high pure water, 4-pin plug |
| 2401-M Glass conductivity electrode | K=1.0 cm-1,Automatic temperature compensation, precision laboratory test for conductivity, 4-pin plug. | |
| 2301-M Plastic conductivity electrode | K=1.0 cm-1,Automatic temperature compensation for laboratory and field testing, 4-pin plug. | |
| 2310-M Plastic conductivity electrode | K=10 cm-1,Automatic temperature compensation, used to test seawater and concentrated salt water, etc., 4-pin plug | |
| Glass flow cell | Equipped with DJS-0.1-M electrode | |
| Temperature Electrode | MP500 Temperature electrode | Stainless steel housing, fast response, high accuracy, RCA plugs |
| Conductivity Calibration Solution | 84 μS/cm Conductivity Calibration Solution | 500mL/250mL/50mL(bottle) |
| 1413 μS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
| 12.88 mS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
| 146.6 μS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
| 1408 μS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
| 12.85 mS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
| Electrode holder | Model 602 Flexible Electrode Holder | Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift |
| Model 601Stirring Type Electrode Holder | The electrode holder and magnetic stirrer combination of new products. | |
| Model 600 Electrode Holder | Cheap simple electrode holder |
