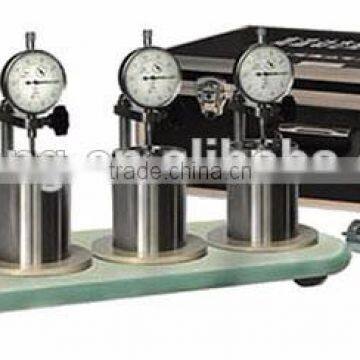

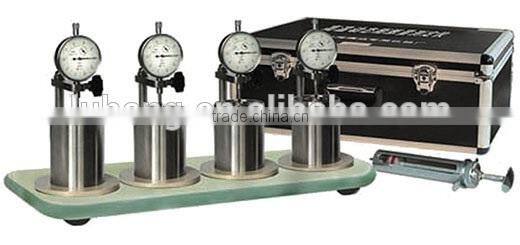

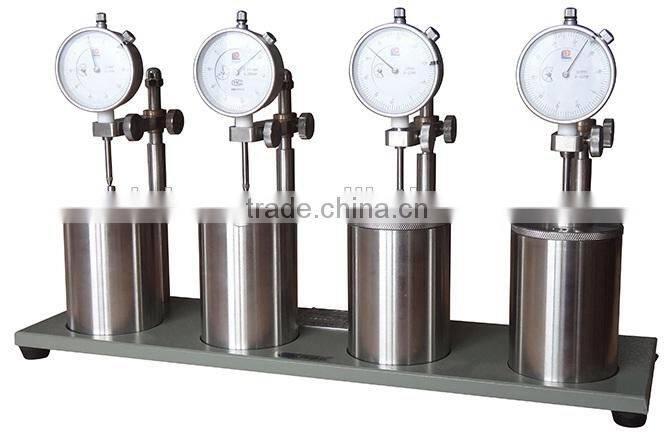

Atmospheric Swell Meter NP-01D

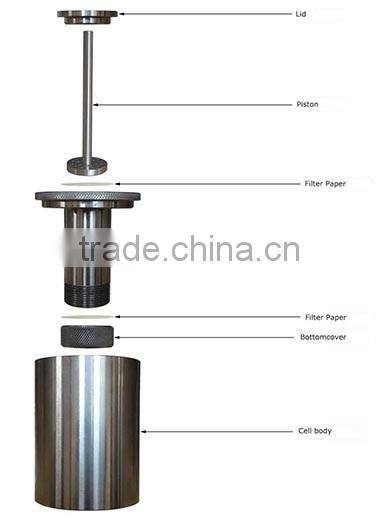

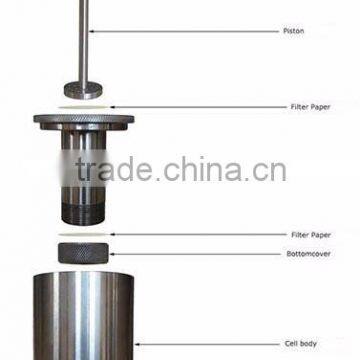

NP-01D Normal Temperature Swell Capacity Test instrument is a precise measurement equipment which can test clay shale’s swell changes in normal temperature to evaluate various treatment’s inhibition property to clay shale. Put clay shale into testing pot, put shifting bar and mud cakes on the base and pour the treatment into the glass for liquid. After expansion, mud cakes push shifting bar and dial indicator, then you can read the swell capacity from dial indicator. NP-01 adopts precise mechanical pointer measuring equipment with good features of accurate data, easy operation and easy application.
Technical parameters:
1.Capacity: 24ml*4
2.Measuring Units: 4
3.Measuring Range: 0-20mm
4.Measuring accuracy 0.01mm
5.Operating Temperature: Normal atmospheric temperature
6.Working pressure: Atmospheric pressure
Atmospheric Swell Meter / Normal Temperature Swell Capacity Test Instrument / Drilling Fluid Test Apparatus
1.Outside packeg: Wooden Case
2.Inside package: strength film and foams
