2000KN Cement Digital Display Compression Testing Machine, Pressure Testing Machine / Compressive Strength Testing Machine

Specifications

Cement Compression Testing Machine
-Can print out testing result
-Max. force: 2000KN

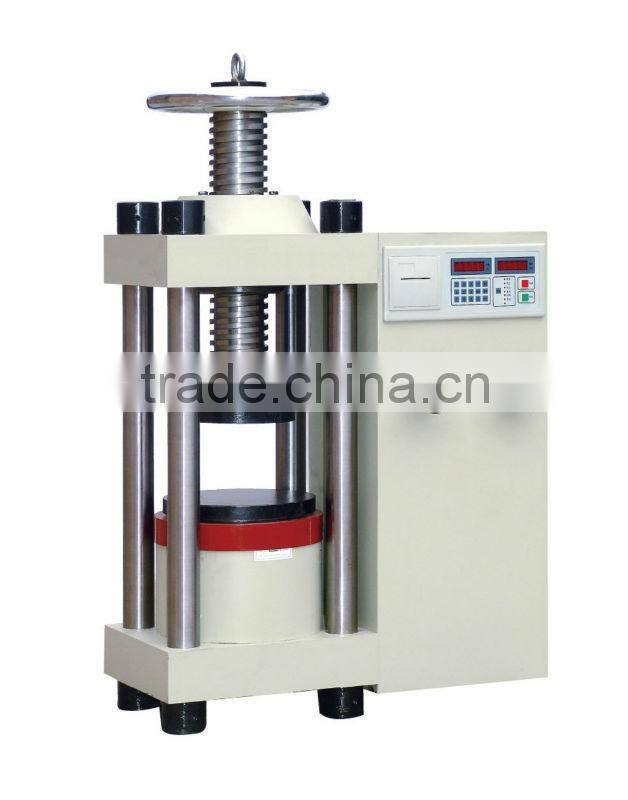

2000KN Cement Digital Display Compression Testing Machine / Compressive Strength Testing Machine







Application:
Digital Display Compression Testing Machine(YES-2000) is mainly used for compression test of nonmetal materials such as bricks, stones, cements and other building materials in accordance with international standards. The machine is electro-hydraulically operated. the control panel comprises of hydraulic power pack, digital readout system , operating switches, load control values, output print-out of test data.







Feature:
1. efficient hydraulic power packs.
2. economic machine ideal for site use.
3. digital readout is microprocessor controlled instrument which is fitted as standard to all digital machines  in the range.
4. calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.







Technical parameters:
1. Max. force: 2000KN
2. Range of measuring: 4%~100F.S
3. Accuracy of test force: ±1% indicated value
4. Upper and lower compression platen dimension: φ225mm, φ300mm
5. Distance between upper and lower compression: 320mm
6. Piston stroke: 30mm
7. Diameter of piston: φ250mm
8. Rated pressure of hydraulic: 40MPa
9. Power: 0.75kw 3phase
10. Dimension: 800×500×1300mm
11. Weight: About 750 kg
