Specifications

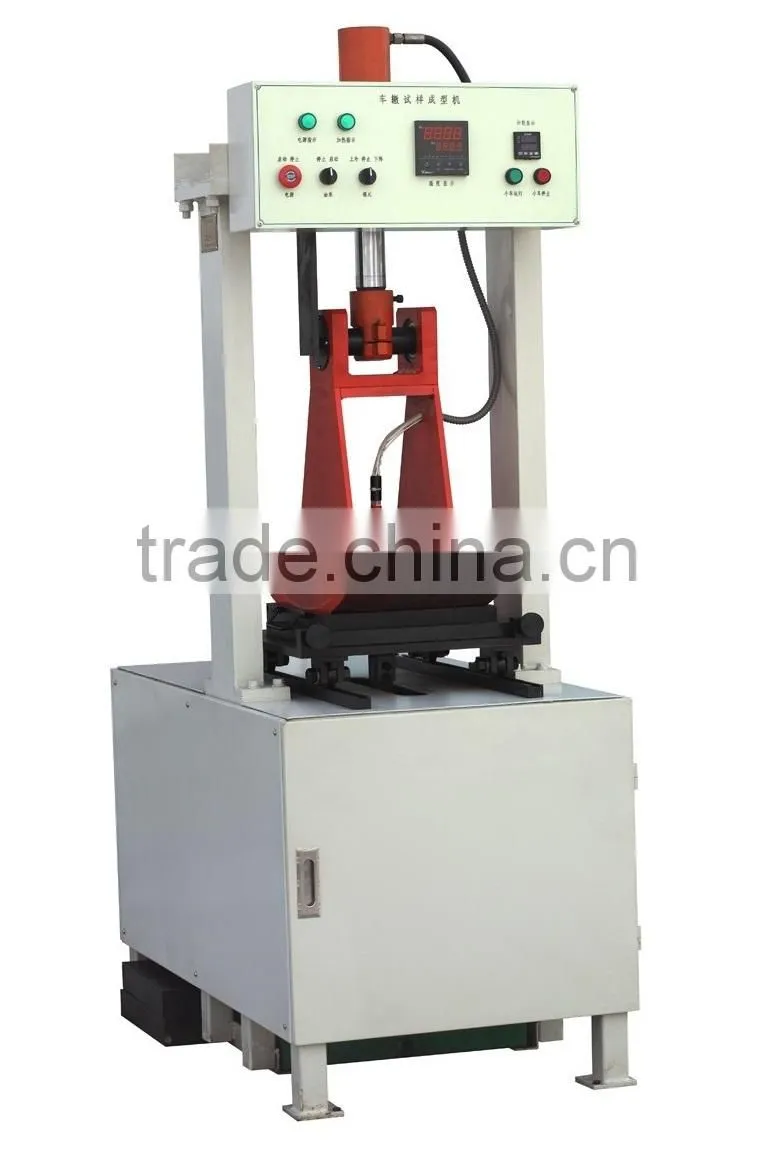

Hydraulic Wheel Track Molding MachineIt is mainly used to make samples for wheel track test
Hydraulic Wheel Track Molding Machine Model SLH-0703
Description:
The instrument is designed and made as per T0703 “Bituminous Mixture Test Sample Making Methods (Rolling and Compacting methods)” in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is usually used with wheel track tester, and it is mainly used to make samples for wheel track test.
Technical parameters
1. Size of test mold: 300×300×(30~100)mm;
2. Rolling and compacting wheel:
(1) Radius: 500 mm;
(2) Width: 300 mm;
3. Moving speed of test mold: 6 reciprocations per minute;
4. Pressure of rolling wheel: can be continuously adjusted in the range of 0~20kN (it has been set to 9.0 kN before leaving factory).
5. Preheat temperature of rolling wheel: it can be set in the range of 20~200°C as your requirements;
6. Instrument size: 1750×1216×640 mm;
7. Weight: 300 kg;
8. Power supply: 380 V, 50 Hz, 3 KW;
Hydraulic Wheel Track Molding Machine / Wheel Tracking Device Specimen Molding Machine ( Roller Compactor ) / Automatic Asphalt Wheel Track Tester / Wheel Rutting Tester / Wheel Tracking Device / Bitumen Wheel Track Test Apparatus / Asphalt Tester / Bitumen Instrument / Asphalt Test Apparatus
