Asphalt Content Tester (Burning Furnace Method) / Asphalt Content Analyser

Specifications

Asphalt Content Tester
-Burning Furnace Method
-ASTM D6307/98

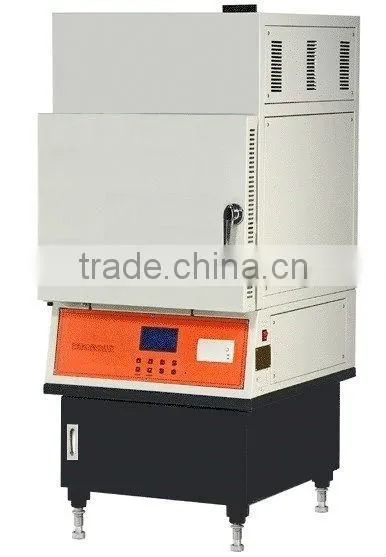

Asphalt Content Tester (Burning Furnace Method) Model SLH-6307

Summary:
SLH-6307 Asphalt Content Tester is designed and made as per ASTM D6307/98, AASHTO IP53-95, and BS DD250. SLH-6307 Asphalt Content Tester is used to determine asphalt content by combustion methods. It is environment friendly, safe, accurate, and rapid.

Technical parameters
1. Maximum sample weight: 3500 g;
2. Recommended weight: 1000~1500 g;
3. Balance accuracy: ±0.1g;
4. Full scale of balance: 10 kg;
5. Size of combustion chamber: 350×440×330mm;
6. Maximum working temperature of combustion chamber: 800 °C;
7. Standard working temperature of combustion chamber: 538 °C;
8. Measurement accuracy: Automatic end point determination; measurement accuracy for asphalt content can be 0.10%;
9. Test time: 20~30 minutes;
10. Power supply: 380V±5% three phases (Star shape); the electric current is not more than 20 A
