Specifications

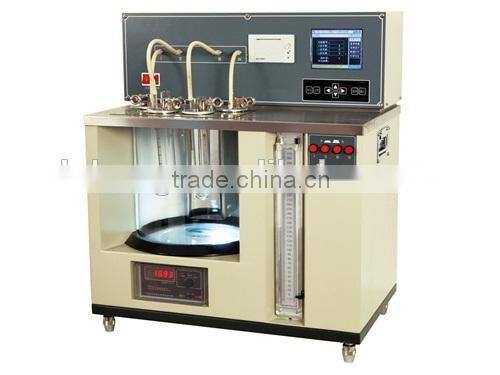

Bitumen / Asphalt Dynamic Viscometer- Vacuum Decompression Capillary Methods
Asphalt Dynamic Viscometer Model SLH-0620A
Introduction
The instrument is designed and made as per T0620 “Asphalt Dynamic Viscosity Test (Vacuum Decompression Capillary Methods)” in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering, and Petrochemical Standard SH/0557 “Test Methods for Viscosity of Petroleum Asphalt (Vacuum Capillary Methods)”. The instrument is suitable to determine dynamic viscosity of petroleum asphalt using a vacuum decompression capillary viscometer. If there is no otherwise stated, the testing temperature is 60 degrees centigrade, and its vacuum degree is 300 mmHg. The instrument is also suitable to determine other materials, the viscosity of which is at 0.0036~20.000Pa.s at 60 degrees centigrade, and 300 mmHg (40 kPa).
Working condition
1. Power supply: AC 220V±10%, 50 Hz;
2. Ambient temperature: 5~50 degrees centigrade;
3. Relative humidity: ≤85%;
Technical parameters:
(I) Technical parameter
1. Temperature controlling range: 0.00~100.00 degrees centigrade;
2. Temperature controlling accuracy: ±0.01degrees centigrade;
3. Pressure range: 300±0.5mmHg;
4. Timing range: 0.0s~999.9 s;
5. Timing accuracy: ≤0.05%;
6. Measurement range: about 4.2~580000Pa.s;
7. Sample quantity: 4 pieces;
(II) Main characteristics
1. It can save and print test data and measurement time;
2. It can control testing temperature and vacuum degree;
3. It has function of timing;
4. It can make determination and display test data automatically.
Asphalt Dynamic Viscometer / Dynamic Viscosity Tester (Vacuum Decompression Capillary Methods) / Capillary Viscometer / Asphalt Tester / Bitumen Instrument / Asphalt Test Apparatus /
