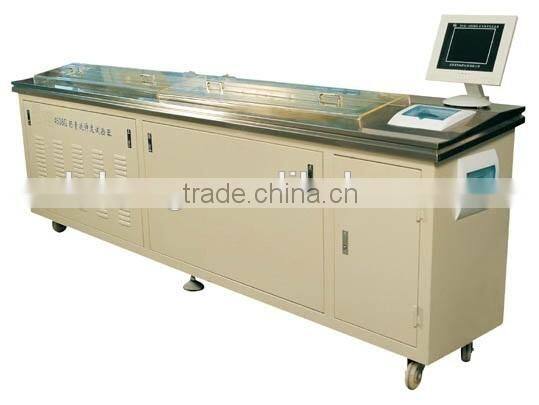

Help CenterAutomatic Asphalt Ductility Testing Machine / Asphalt Ductilometer / Ductility Test Apparatus / Asphalt Ductility Tester
Related Products
-
Penetration Apparatus,Needle Penetration Tester, PenetrometerUS$ 1,300 - 2,000MOQ: 1 Set -
Digital Display Asphalt Penetration Apparatus / Bitumen Needle Penetration Test Device / Asphalt PenetrometerUS$ 1,200 - 1,500MOQ: 1 Set
-
Asphalt Penetrometer / Bitumen Needle Penetration Test Device / Digital Display Asphalt Penetration ApparatusUS$ 1,500 - 2,000MOQ: 1 Set
-
Low Temperature Asphalt Penetration Apparatus / Asphalt Needle Penetration Test Device/asphalt PenetrometerUS$ 3,000 - 3,500MOQ: 1 Set
-
Automatic Asphalt Penetration Apparatus / Asphalt Needle Penetration Test Device/Bitumen PenetrometerUS$ 7,500 - 8,000MOQ: 1 Set
Specifications
Ductility Testing Machine1.Measurement range: 2.0m
2.10-50mm/min adjustable
3.With force measurement
4.With PC.
Asphalt Ductility Testing Machine Model: SLH -4508G
Summary
This instrument is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen, T0602-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials. It is suitable to determine the distance to which it will elongate before breaking when two ends of a briquet specimen of the material are pulled apart at a specified speed and at a specified temperature.
I. Main technical features
1. It adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. It adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform. The sample can be easily installed in and the maximum measurement distance can reach 1.5m.
2. It can determine ductilities of three samples and tensile forces of two sample by one analysis.
3. It adopts PC control technology. The temperature control accuracy is high. It has the function of automatic specimen positioning. The ductility determination can be operated remotely. Equipped with a communication port, it achieves the communication with PC conveniently.
4. It adopts large LCD to show the temperature, ductility, tensile force clearly.
5. It equips a needle microprinter to printer out the test results automatically(Ductility, average value, maximum tensile force and the changing curves).
6. The specimen can return and positioning automatically after the determination.
II. Main technical specifications
1. Power supply: AC(220±10%)V, 50Hz
2. Measurement distance: 1.5m(±10mm)
3. Heating power: 3200W
4. Temperature control: Range:(5~35) °C , accuracy: ±0.1 °C
5. Tensile speed: (10~50)mm/min,stepless adjustment. accuracy:±1mm
6. Tensile test: Range:(0~300)N, accuracy:±1N, resolution: 0.1N
7. Data output: (1)Communication port RS232 (2)Printed by microprinter
8. Refrigeration: Compressor 1.0P, input power is 800W
9. Ambient temperature: (-10~+35)°C.
10.Relative humidity: ≤85%
11.Maximum power consumption: 4100W
12.Dimension: 2365mm×530mm×1000mm
Asphalt Ductility Testing Machine / Bitumen Ductilometer / Ductility Test Apparatus / Ductility Tester / Ductility Instrument / Ductility Machine / Asphalt Tester / Bitumen Instrument / Asphalt Test Apparatus
