Technical Specifications

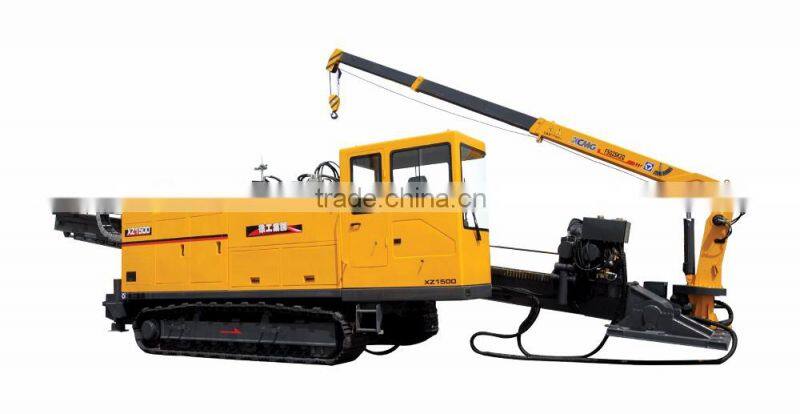

Product model: XZ1500 horizontal directional drilling rig
Manufacturer: Xuzhou Xugong Foundation Construction Machinery Co., Ltd
With the integral self-loading design, XZ1500 horizontal directional drilling rig adopts the closed energy saving circuit, electro-hydraulic proportional control, load sensing control and other advanced control technologies and the patent technologies of the Company. Its main performance parameters and control technologies have reached the international advanced level. The important components such as hydraulic system are all world famous brand, ensuring the high reliability.
I. Techinical Features
Hydraulic system: the closed energy saving circuit, load sensing control, electro-hydraulic proportional control and other advanced control technologies as well as imported elements with reliable quality are adopted.
Rotation: low-speed and high-torque motor drive, two speeds, automatic high-pressure protection
Push-pull: gear rack push-pull, continuous regulation of three speeds, high work efficiency.
Cab: all-weather double-person cab, in which the steering and operating devices are concentrated, and which is easy to operate.
Engine: turbine engine with high power reserve, ensuring the drilling power and emergency needs.
Drill tower: assembled high-strength drill tower suitable for drill stems of different length; cylinder driven sliding drill tower easy to adjust the angle.
Drill stem clamp: full-floating clamp and truck crane, making it easy to mount and dismount the drill stem
Crawler: self-propelled steel crawler with high moving strength
Wired travel: it’s easy and fast to transport the machine between work sites.
Supervision: including the engine, hydraulic pressure and filtration are supervised and alarmed, effectively to protect the machine.
Emergency operation: the manual operation system is installed to adapt for the emergency and ensure the construction safe.
III. Main Parts Manufacturers
