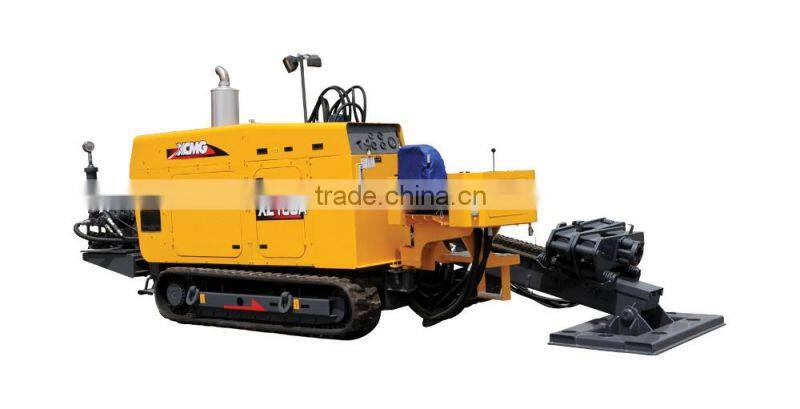

XCMG, XZ160A HDD Machine/ Horizontal Directional Drilling Machine

XCMG, XZ160A HDD Machine/ Horizontal Directional Drilling Machine thumbnail-1
XCMG, XZ160A HDD Machine/ Horizontal Directional Drilling Machine photo-1
US$ 30,000 - 300,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XCMG
Model Number:
XZ160A
Contact Supplier Request Quote Chat Now
Viva Complete Sdn. Bhd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name XCMG
Model Number XZ160A
After-sales Service Provided No overseas service provided
Product Description

Product Description

Technical Specifications Sheet

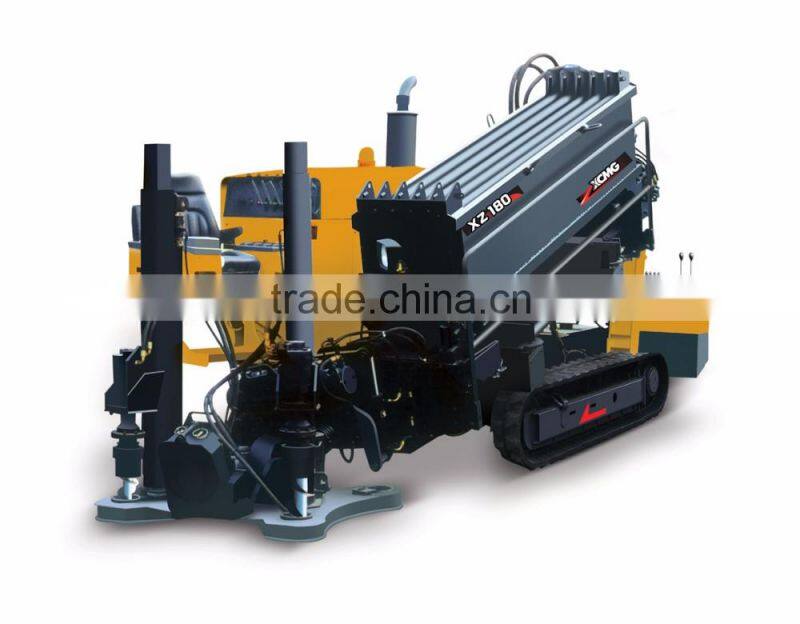

Product Model: XZ180 horizontal directional drilling rig
Producer: Xuzhou Xugong Foundation Construction Machinery Co., Ltd

The XZ180 horizontal directional drilling rig has a compact structure and decent appearance. Its main technical performance parameters have reached the domestic advanced level. The main parts and components and corollary parts are of the domestic or foreign famous brand and have good performance and reliable quality, ensuring the sound reliability of the whole machine.


Ⅰ. Technical features
Strong power: The 97kW turbo diesel engine ensures that the drilling rig can pave the pipes under various complex ground conditions.

Dual-speed power unit: The low drilling and pulling speed ensures the successful construction. The power unit can accelerate the sliding speed after the drill stem is removed, so that the auxiliary work time is reduced and the work efficiency is enhanced.

Rubber crawler: The influence of this kind of crawler on the road, lawn and sight spot is smallest.

Floating vice: The proprietary floating vice of the Company shall be adopted, which can prolong the service life of drill stem effectively.

Automatic loading and unloading of drill stem: The automatic drill stem loading and unloading device can reduce the work intensity of operators.

Automatic anchoring: The drilling and pulling of anchor rod is driven hydraulically and controlled by the cylinder and the low-speed and high-torque motor.

Rotary console: It enlarges the vision field of operators, reduce their work intensity and make the machine easier and more comfortable to operate.

Easy maintenance: It is easy to maintain the engine and change the filter element of hydraulic system.



Ⅱ. Main Technical Parameters

Item
Unit
QTY
Engine
Producer
Dongfeng Cummins
Model
Rated Power
kw/rpm
97/2200

Pusher and Puller
Type
Double-motor chain type
kN
180/180
Rotation Speed of Power Unit
m/min
0-20
Rotation
Type
Double-motor gear transmission
6000
r/min
0-140
Drill Stem
Type
Standard API drill stem
Diameter
mm
φ60
Length (single piece)
m
3
Drill stand
Type
Box-type drill stand
Adjusting angle
°
10-22
Travel drive
Type
Self-propelled rubber crawler
Travel speed
km/h
Slurry pump
Type
Hydraulic drive
Flow Rate
L/min
250
Overall Dimension
mm
6400 x 2270 x 2340
Weight (including one box-type drill stem)
t



Ⅲ. Configuration of main components
Engine
Dongfeng Cummins Engine Co., Ltd
Master pump
HCHC
Rotating motor
Jining Eaton
Valve
Yuci
Crawler
Bridgestone
Travel speed reducer
Ningbo Ini
Slurry pump
Hengyang Prospecting Machinery Works


Ⅳ. Optional parts for users

The drill stem produced by Hebei Xuanhua, Wuxi Mineral Exploration Machinery or other producers can be selected. The cutting-type or squeezing-type expansion head with a diameter of 200mm~600mm can be selected.

DCI wireless guide system can be selected.

This system is composed of the engine, sewage pump, slurry tank and swell soil mixer. The capacity of slurry tank can be 2m3 or 3m3 dependent on the user’s needs.



Ⅴ. On-board technical documents

The following technical documents are provided for XZ180 horizontal directional drilling rig:

Packing list

Certificate of conformity

Operation instructions

User’s manual of 6BT5.9-C130 engine

Operation instructions of BWF-250 slurry pump


Note: The products will be improved along with the technical advancement and the difference will be defined during ordering.
