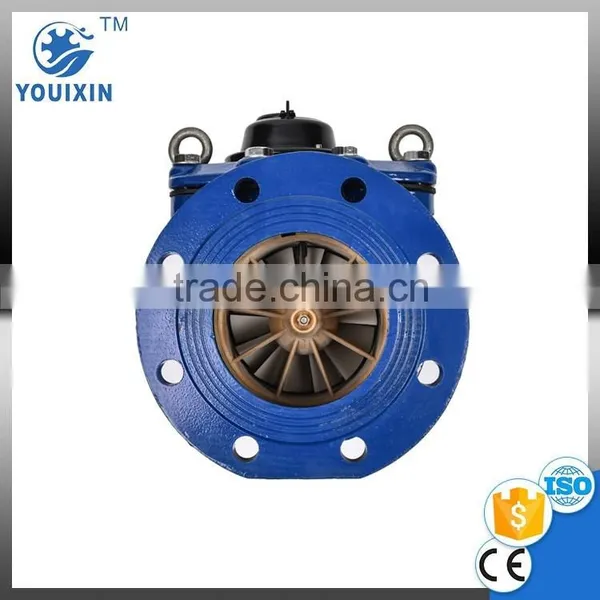

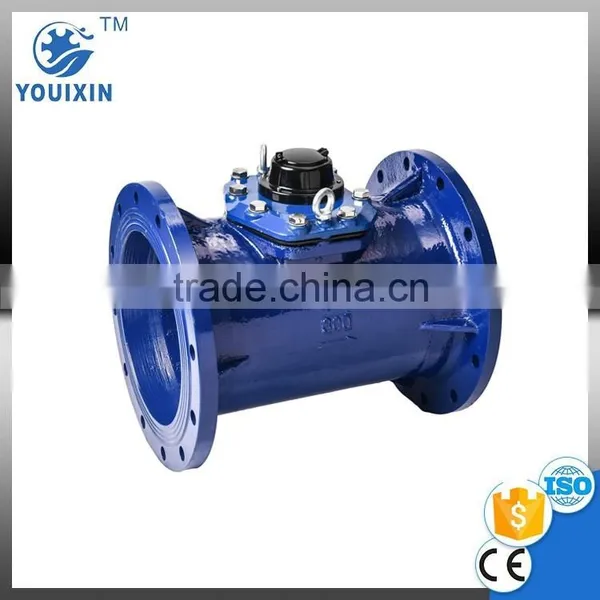

Digital wireless water flow meter
Type |
Dry dial ,Detachable,Horizontal |
Standard |
ISO4064(R50) |
Size |
DN150~DN300 |
Cold water |
0℃~40℃ |
Hot water |
40℃~90℃ |
Water Pressure |
1.0Mpa (1.6Mpa on request) |
| Function | Measuring the volume of cold or hot water passing through the pipeline |
FEATURE:
Large flow capacity and small pressure lose.
High quality material applied to guarantee its function efficient and reliable.

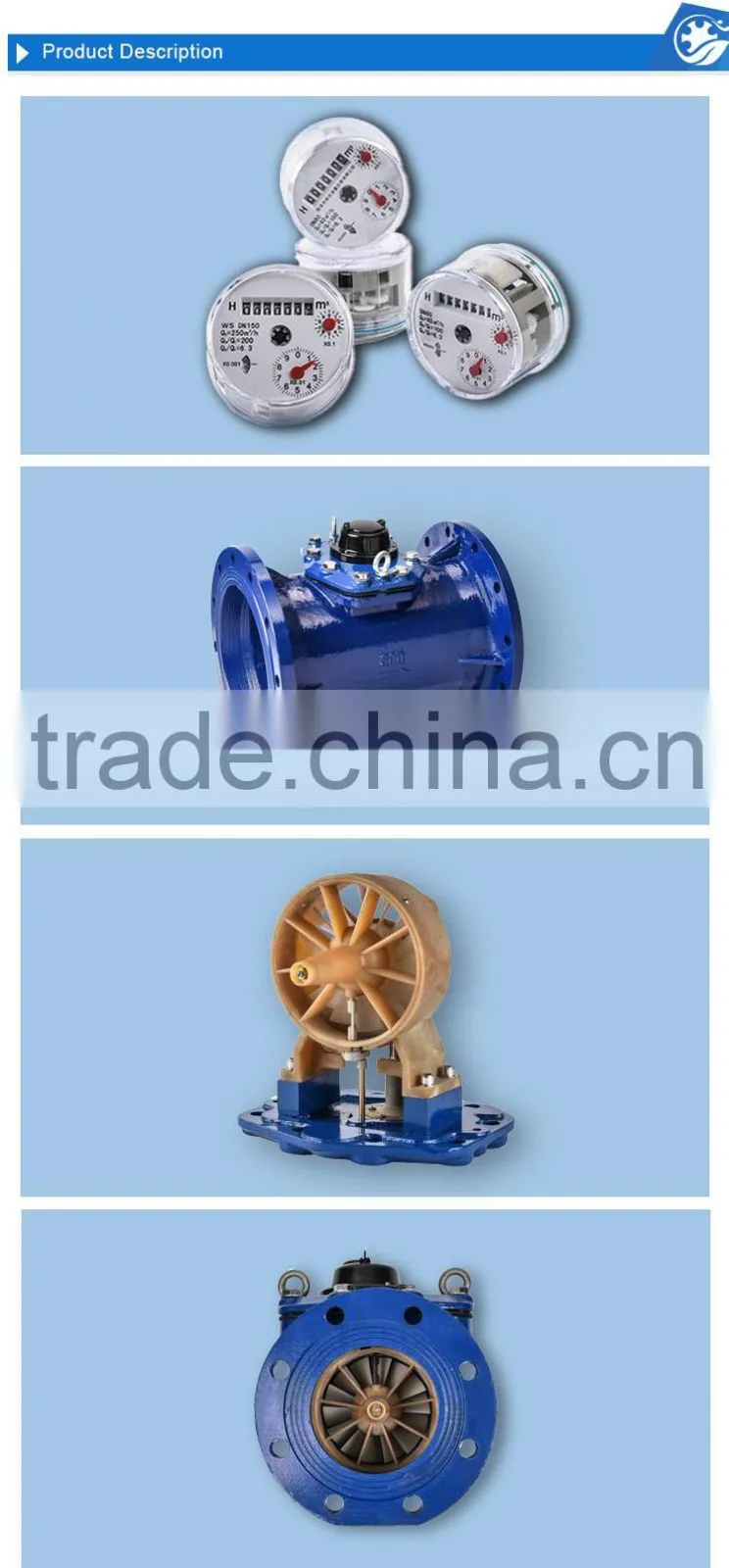

Magnet-drive, dry dial, protected by the steel cover,forever clean and legible dial for reading.
Register may be rotated through 360º.

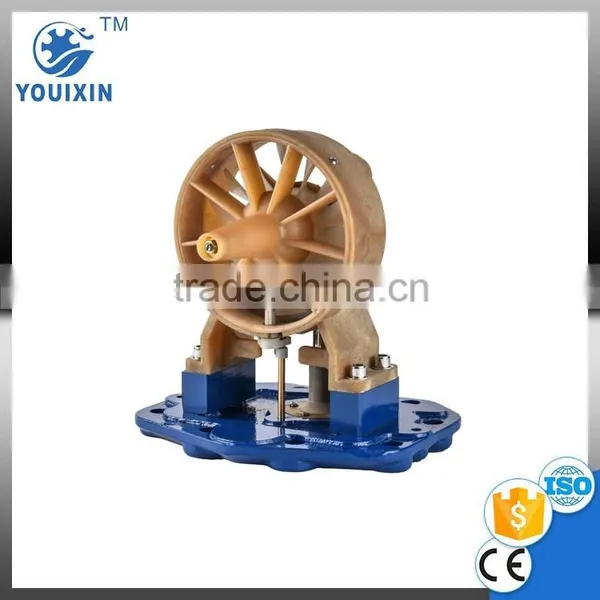

Removable mechanism is easy to replace or fix and not required detaching the body from the pipeline.
Pulse emitter can be installed to this type for remote reading(option).
MAXIMUM PERMISSIBLE ERROR:
a) In the lower zone , Q1≤Q≤Q2 is ±5%
b) In the upper zone ,Q2 ≤Q≤Q4 is ±2%;
| technical parameters | ||||||||
| product type | size | Measuring range | common flow(Q3) | Min reading | Max reading | Length | ||
| Q3/Q1 | Q2/Q1 | m3/h | m3 | mm | ||||
| LXLC-150M | 150MM | 6'' | R50 /R80 | 6.3 | 250 | 0.01 | 99999999 | 300 |
| LXLC-200M | 200MM | 8'' | 400 | 0.01 | 99999999 | 350 | ||
| LXLC-250M | 250MM | 10'' | 630 | 0.01 | 99999999 | 400 | ||
| LXLC-300M | 300MM | 12'' | 1000 | 0.01 | 99999999 | 500 | ||
| product type | width | height | flange connection | net weight | grass weight | ||
| mm | flange outside diameter | diameter of bolt hole center | bolt connection quantity and specification | kg | |||
| LXLC-150M | 300 | 370 | 285 | 240 | 8-M20 | 26 | 29 |
| LXLC-200M | 350 | 390 | 340 | 295 | 8-M20 | 48 | 51.5 |
| LXLC-250M | 400 | 450 | 405 | 355 | 12-M24 | 80 | 85 |
| LXLC-300M | 500 | 480 | 460 | 410 | 12-M24 | 95 | 103 |
Why Choose Us?
1,We have first-class production lion and strict quality management system.
2,We have professional team to provide comprehensive one-stop service for you .
3,We can give customers the most competitive price to meet your budget.
4,We have big production capacity to guarantee fast delivery and on-time shipment .
FAQ
Q:Why choose you?
A:We have professional team of worers,service and inspection,and we have our own factory.
Q:Can I get samples?
A:Of course,we provide the small size sample free.
Q:Could you print our company logo on the nameplate and package?
A:Yes,we can
Q:Where is your factory located?How can I visit there?
A:Cixi Cidong Instrument Co.,Ltd is located in Ningbo city,Zhejiang province.All our clients,from home or abroad,you are most welcome to visit us!
Q:How many colors of body are avaliable?
A:We have own spraying equipment,so we can do custom colors as your special request.So any Prantone color is avaliable.You just need to tell me your favorite Pantone color.
Q:Will you save my mold for future orders?
A:Yes.Once we creste your mold.you can use it as many times as you like at no cost for future orders.As long as you keep the same design there is never any new molding fees.
Q:Do you offer customized packing?
A:Yes!All of our products can be packed as your requirement.
