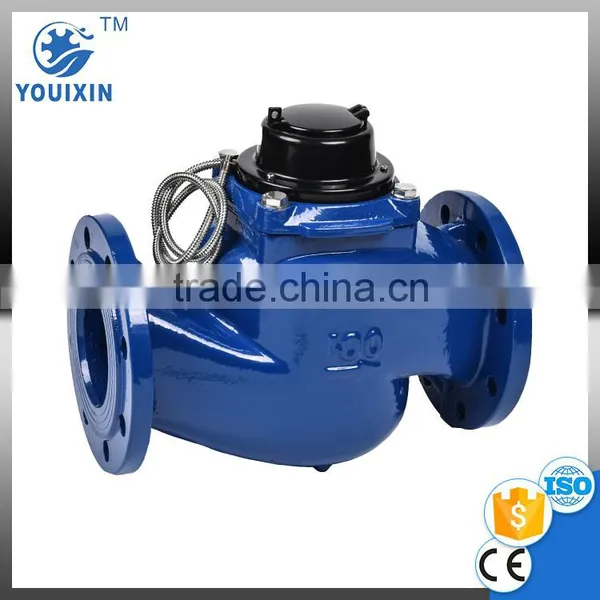

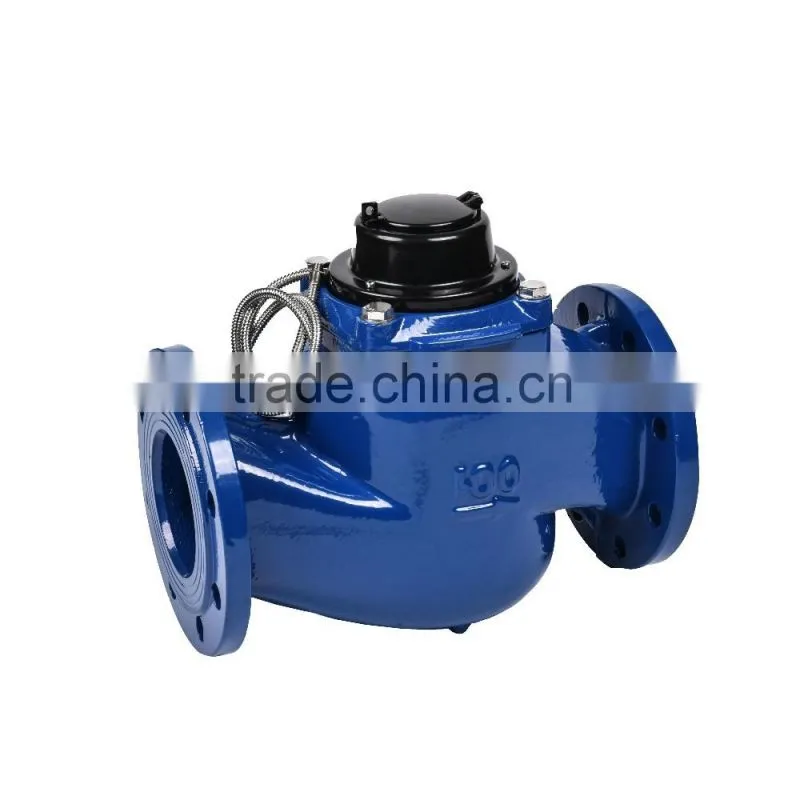

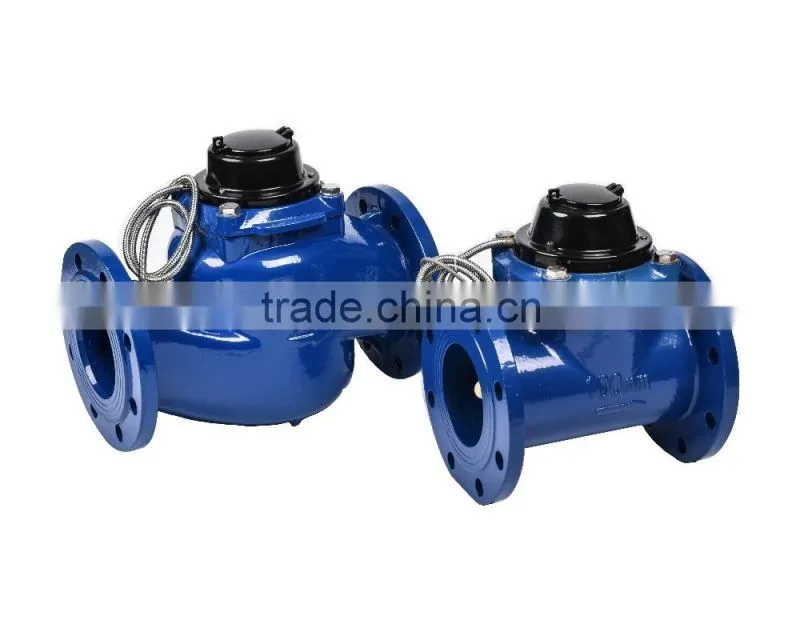

Remote Pulse Remote Vane Wheel Woltman Direct Reading Magnetic Detachable Mechanical Flow Water Meter Industrial Woltman Meter Water Flow Meter
LXLC-(50-300)R
Type: Dry dial ,Detachable
Standard: ISO4064(R50/R63/R80/R100)
Size: DN50~DN300
Working condition:
Temperature:
Cold water:0℃~40℃
Hot water :4 0℃~90℃
Water Pressure:
1.0Mpa (1.6Mpa on request)
FUNCTION:
Large flow capacity and small pressure lose.
High quality material applied to guarantee its function efficient and reliable.
Magnet-drive, dry dial,protected by the steel cover,forever clean and legible dial for reading.
Register may be rotated through 360º
Removable mechanism is easy to replace or fix and not required detaching the body from the pipeline.
Pulse emitter can be installed to this type for remote reading(option)
MAXIMUM PERMISSIBLE ERROR:
a) In the lower zone , Q1≤Q≤Q2 is ±5%
b) In the upper zone ,Q2 ≤Q≤Q4 is ±2%

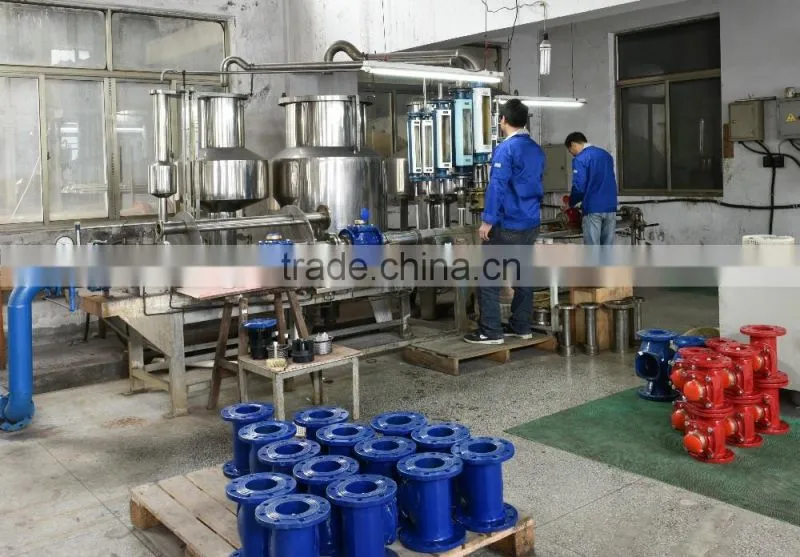

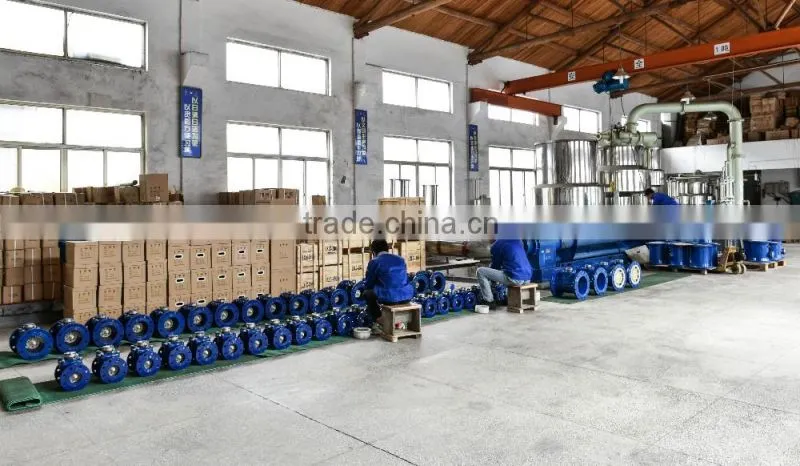

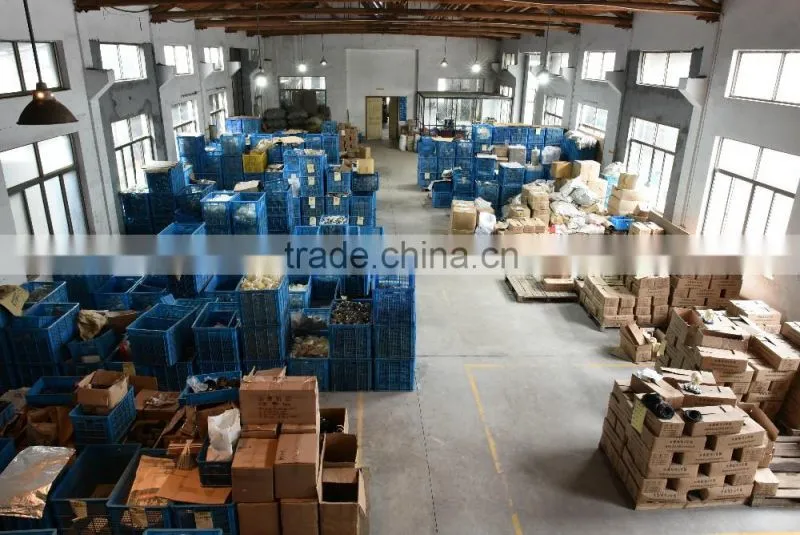

Cixi Cidong Water Meter Co.,LTD. Founded in 1985
We are the manufacture and have already applied ourselves into producing and exporting the water meters and accessories for over 30 years. We have already got the CE,GOST and ISO 9001 certificates and We will continue to focusing on improving our technology and production ,so that we can be more professional in this filed. Nowadays we have already achieved our success in many regions and countries ,like the Eastern Europe ,Western Europe ,Mid East and South Asia
