30000 liters LPG tanks, 30000 liters gas tanks, 30000 liters gas storage tanks, ground oil gas tanks.
- 10 Unit / Units per Month
- Shanghai Tianjin Qingdao
- T/T L/C D/P D/A
- cryogeinc Liquid Nitrogen container Spray 500ml tank 300ml bottom low temperature cryo device
- 30liter liquid gas machine liquid nitrogen dewar for medicine cryo use
- ln2 Self-pressurized container dewar factory trolley low pressure tank liquid nitrogen pipe 50l
- liquid argon tank sizes, liquid nitrogen cylinder sizes, liquid co2 tanks
- liquid petroleum gas tank, liquid co2 storage gas tank, liquid gas cylinder
- China Liquid Gas Tanks, Liquid Gas Tanks Manufacturers, Suppliers
Product Details
Condition: | New | Place of Origin: | Hubei, China | Brand Name: | CLW |
Model Number: | CLW | Dimension(L*W*H): | customized | Capacity: | customized |
Weight: | customized | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
30000 liters LPG tanks, 30000 liters gas tanks, 30000 liters gas storage tanks, ground oil gas tanks.
LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
Items | Unit | Parameter | |||||||||||||||
Product | LPG Tank | ||||||||||||||||
Model | GLG1600-10 | GLG2100-25 | GLG2400-32 | ||||||||||||||
Loading subject | propane | propane | propane | ||||||||||||||
Whole Dimension | mm | 5940*1620*2040 | 7570*2124*2600 | 7508*2428*2600 | |||||||||||||
Tank Dimension | mm | DN1600*10 thick*5940 length | DN2100*12 thick*7570 length | DN2400*14 thick*7508 length | |||||||||||||
Tank Volume | m3 | 10 cubic meter | 25 cubic meter | 32 cubic meter | |||||||||||||
Curb Weight | kg | 3165 | 5900 | 7410 | |||||||||||||
Designed pressure | Mpa | 1.77 | 1.77 | 1.77 | |||||||||||||
Working pressure | Mpa | <1.6 | < 1.6 | < 1.6 | |||||||||||||
Working temperature | C | < 50 | < 50 | < 50 | |||||||||||||
Water testing pressure | Mpa | 2.22 | 2.22 | 2.22 | |||||||||||||
Air testing pressure | Mpa | 1.77 | 1.77 | 1.77 | |||||||||||||
Tank materia | Q345R , 16 Mnlll | ||||||||||||||||
Manufacturer Standard | China GB 150 pressure vessel manufacturer standard. | ||||||||||||||||
Remark | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, | ||||||||||||||||

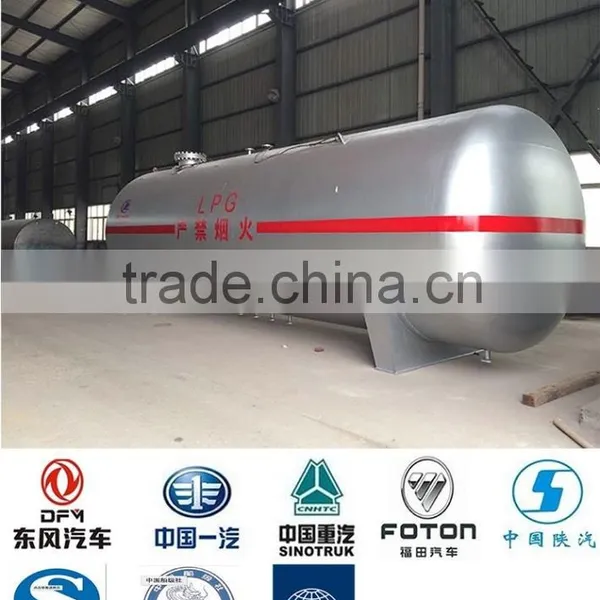

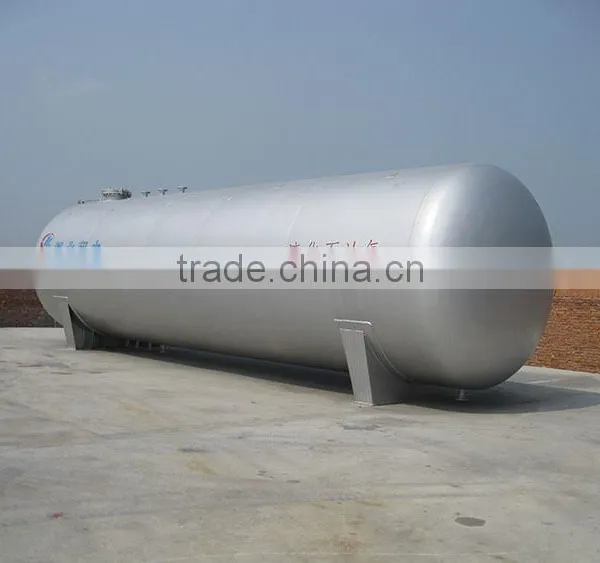

More photos showing about our LPG products.
Welcome for your inquiry.
