Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Cement Hydraulic Tile Molds
US$ 10,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Tile Forming Machine
Tile Type
Concrete
Use
Roof
Production Capacity
17-20pcs/minute
Place of Origin
Zhejiang, China
Brand Name
Weixing
Model Number
SM-20
Power(W)
30KW
Voltage
380V
Dimension(L*W*H)
25M
Weight
5Tons
Certification
ISO9001:2008
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.ISO9001 certification2.PLC control
3.Power:30KW
4.Molding speed:20pcs/minute
5.Capacity:2,400,000pcs

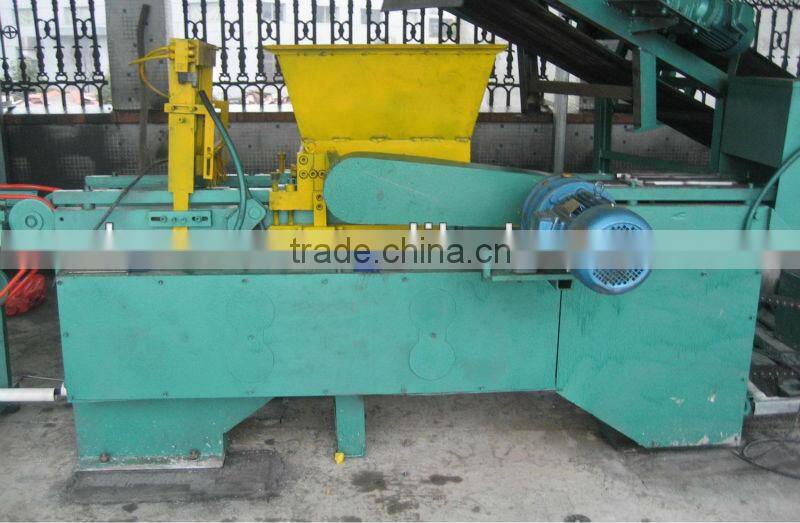

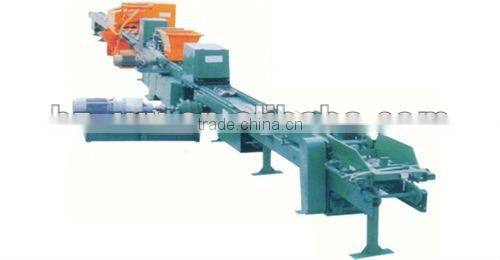

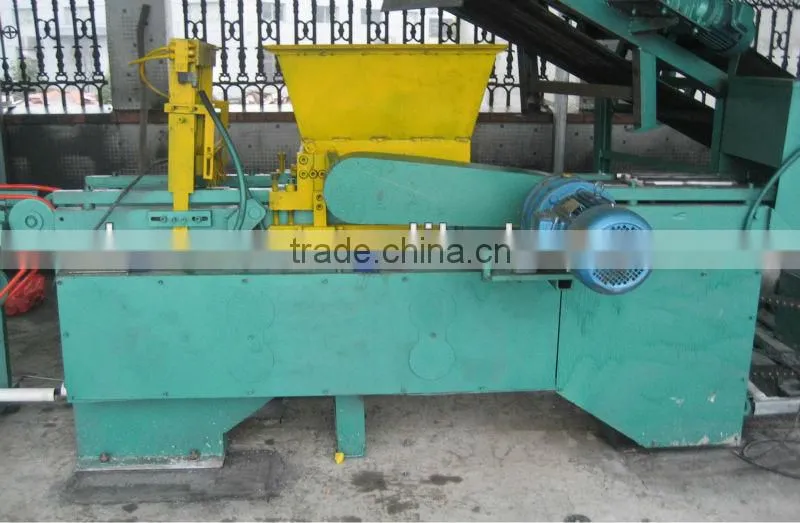

SM-20 Roller-type cement tile forming machine
Concrete roof tile machine
The SM-20 is a automatic cement roof tiles forming machine .It is high forming speed ,can make different shape tiles according to different molds.The tiles has been painting ,colorful and strong anti-seepage water,strong anti-knock. Cement and yellow sand are the raw material of the tile.Tile machine produces tiles fast with high yields.It can produce 20 pieces of tiles each minute.It is the preferred green building.
Technical Parameter
| Technical Parameter: | |
| Item NO.: | SM-20 |
| Product's name: | Concrete roof tile machine |
| Forming speed: | 20 pcs/minute |
| Annual production: | 2,400,000 pcs (8 hours/day) |
| Product Dimension: | 424*337mm |
| Method: | Roll-in |
| Voltage: | 380V |
| Power: | 30KW |
| Materials: | Rolled steel |
| Employee: | 18 persons/group |
| Surface color: | Optional |
| Packaging: | Bulk & Wooden case |
| Minimum order: | One set |
| Delivery time: | 20-30 days after have deposit |
| Cross weight: | About 22,000KG |
| Cube type: | 40 GP/Set |
Basic Scheme
| NO. | NAME | QUANTITY | UNIT |
| 1 | Roller-style main forming machine | 1 | Set |
| 2 | Mixing System(Mixer) | 1 | Set |
| 3 | Auto spray oil system | 1 | Set |
| 4 | Forming system(forming mould,squeeze roller) | 1 | Set |
| 5 | Electric control operation cabinet | 1 | Set |
| 6 | Match colors machine | 1 | Piece |
| 7 | Separator container/Vessel | 1 | Piece |
| 8 | Coloring machine | 1 | Set |
| 9 | Acrylic coating machine | 1 | Piece |
| 10 | Raw material conveyor line ( 5 m ) | 1 | Line |
| 11 | Semi-finished material conveyor line ( 4--5m ) | 1 | Line |
| 12 | Stripping and tile pallet conveyor line ( 4m ) | 1 | Line |
| 13 | Spray oil conveyor line ( 4m ) | 1 | Line |
| 14 | Blower conveyor line( 2m ) | 1 | Line |
| 15 | Coloring conveyor line( 4m ) | 1 | Line |
| 16 | Acrylic coating conveyor line( 2m ) | 1 | Line |
| 17 | Tile conveyor line( 4m ) | 1 | Line |

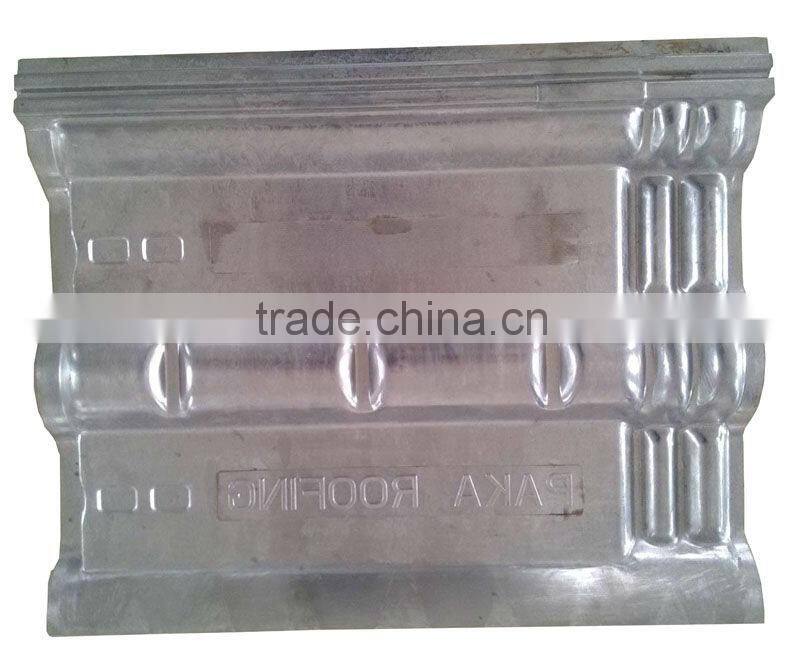

| 18 | Aluminium tile mould(Main tile mould) | 5000 | Piece |
| 19 | Other handmade tile mould | 9 | Piece |
Auxiliary Machine(customer owned by yourself )
| 1 | Workshop: 600 square meter | 1 space |
| 2 | Tile shelf: 120 pieces/shelf | 100 shelf |
| 3 | Air compressor: W-0.9/7 | 1 Set |
| 4 | Hand pallet truck: 3T | 1 -3 set |
| 5 | Maintenance room: 90 square meter | 1 space |
| 6 | Tile yard: 400 square meter | 1 space |

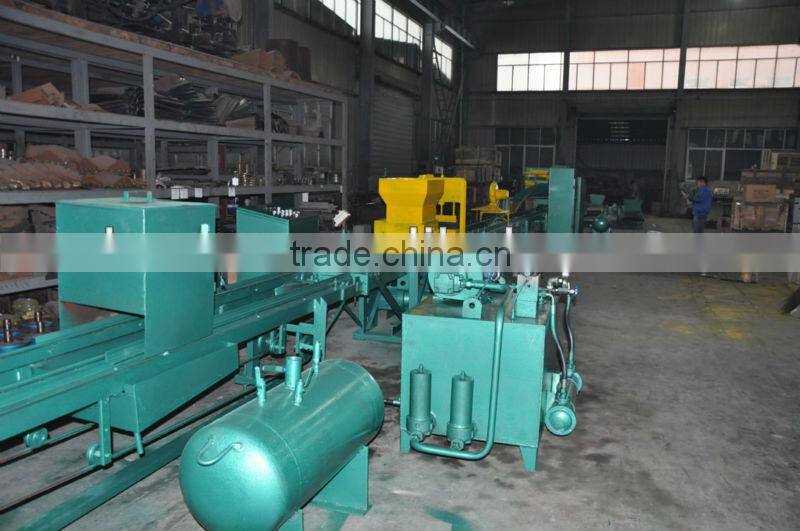

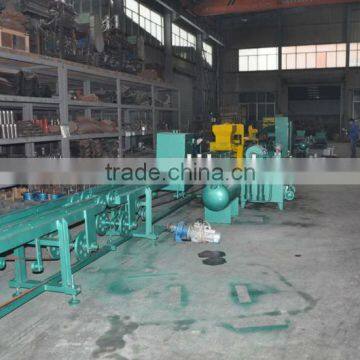

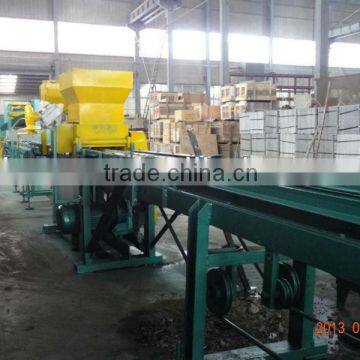

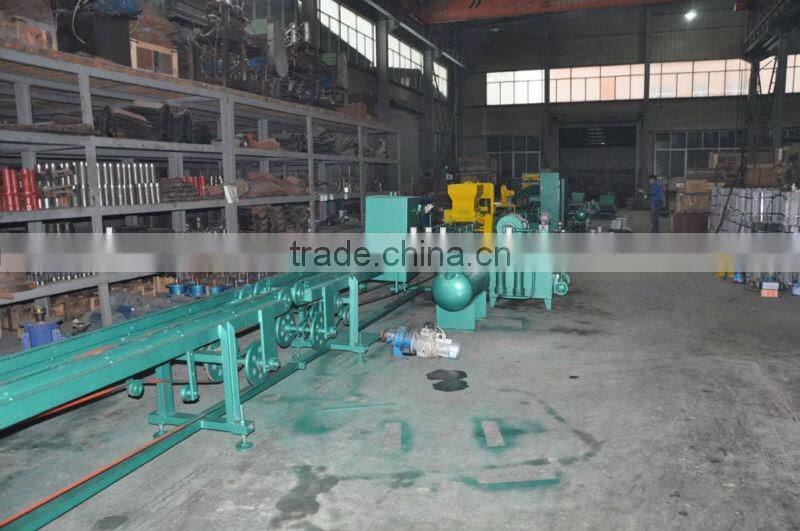

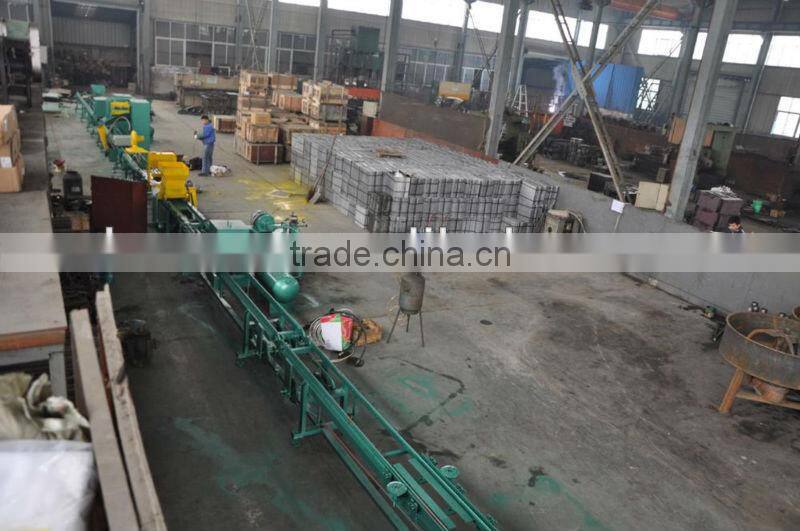

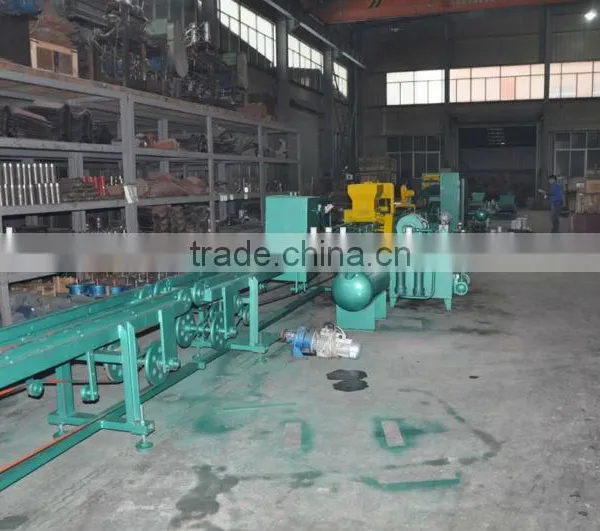

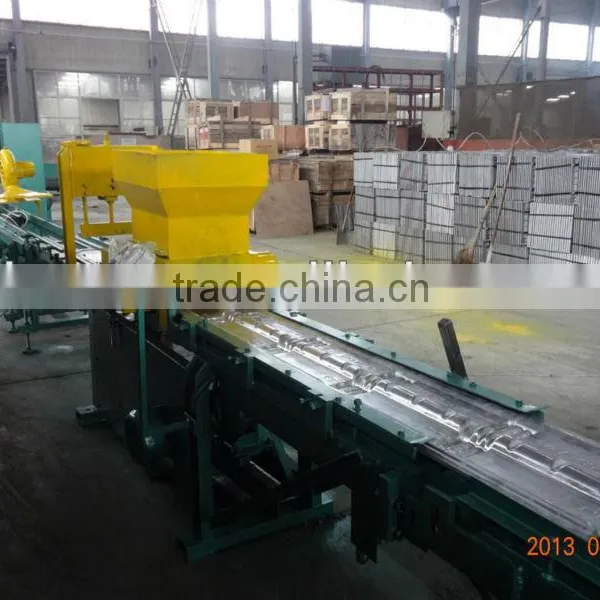

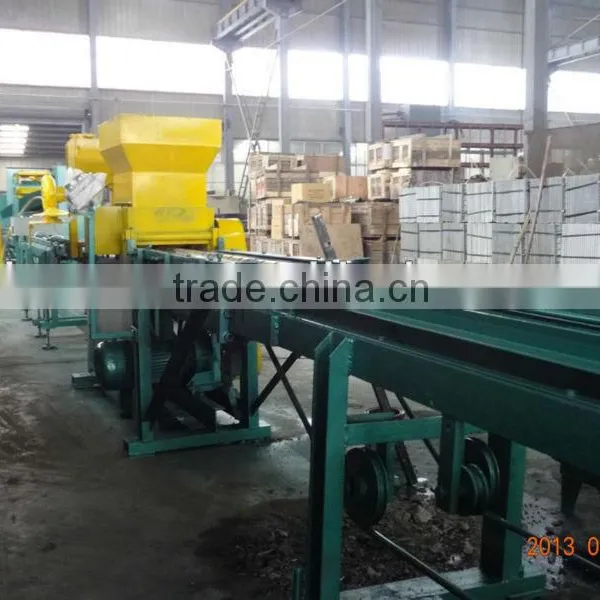

Factory & Workshop Pictures

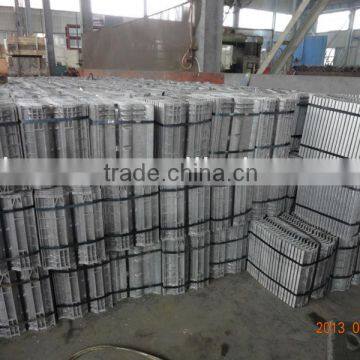

Aluminium Pallet
Steel Pallet
