Specifications
1.ISO 9001 Certificate2.Speed:6-9pcs/min
3.Method:press & sieve
4.Power:18KW;Pressure:128T
5.Hydraulic & PLC Auto control
cement tile manufacturing machine
1. New type of cylindrical tile molding machine whit high forming speed, large output, and reliable performance. Using PLC (Mitsubishi technology) automatic control, hydraulic pneumatic, the speed of production can up to 6-9 pieces/ min, in a high yield, cost-effective priorities.
2. A new type of cylindrical molding machine, the underside of slid platform is made of semi-circular guide rail, compared with the square guide rail more stable and more wear-resistant. Main oil cylinder and four-cylinder overall orientation, not only to improve the stability of the equipment, but also to extend the life of the mold.
3.Through the filter press type molding, product with beautiful structure, variety kinds, high density, strong strength, accurate size to meet the needs of various types of buildings are concrete products of quality products.

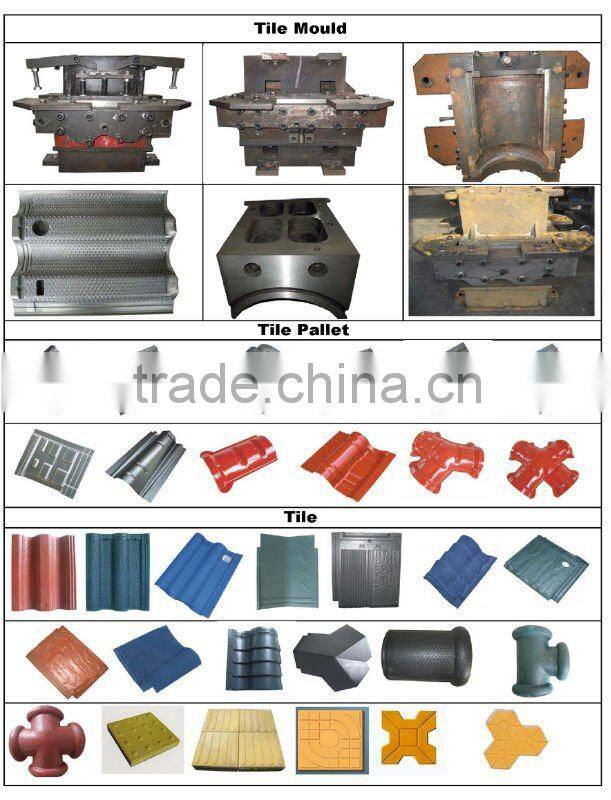

4.A multi-purpose machine, by replacing the mold, can produce various types main tile and matching tiles.
5.The Self-developed plates film can reduce the cost of cleaning up and oiling. The product has applied for a new use of patents.
.Patent Number. ZL200820085797·X
Technical Parameter
Technical parameter |
SMY8-128 |
Production capacity |
6-9 pieces / min |
Annual production capacity |
1,200,000pieces(based on 8 hours) |
Factory Area |
150 square meters |
Maintenance area |
60 square meters |
Total installed capacity |
18KW |
Manpower quota |
4 persons / class |
Product specification |
424×337mm2 |
Basic Scheme
No. |
Name |
Quantity |
Unit |
1 |
Forming host |
1 |
set |
2 |
Mixing System |
1 |
set |
3 |
Main mould of the tile |
1 |
set |
4 |
The pallet of the tile |
2000 |
piece |
5 |
Circle Ridge Pallet |
50 |
piece |
6 |
Cornices Pallet |
30 |
piece |
7 |
Circular ridge Manufacturing Machine |
1 |
set |
8 |
Eaves tile manufacturing machine |
1 |
set |
9 |
Drain tile mold |
10 |
piece |
10 |
TY Three-round ridge |
Each1 |
piece |
11 |
Oblique ridge seal |
1 |
piece |
12 |
Circular ridge seal |
1 |
piece |
13 |
Cornice seal |
1 |
piece |
14 |
Four-way mode |
1 |
piece |
15 |
plastic diaphragm rupport plate |
2000 |
piece |
