Home > Transportation > Truck > Tank Truck > 12000 Liter Road Stone Spreader With 8000 Liter Bitumen Spreader

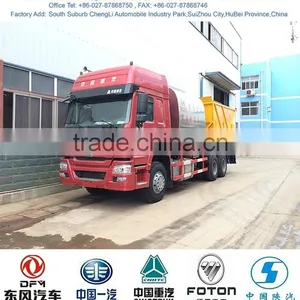

12000 Liter Road Stone Spreader With 8000 Liter Bitumen Spreader
US$ 10,000 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Storage:
Other, bitumen, road stone,
Drive Wheel:
6x4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12m3 Synchronous Asphalt Seal Paver TruckUS$ 88,650 - 198,500MOQ: 1 Unit -
Synchronous Seal Paver Bitumen Paver TruckUS$ 88,650 - 198,500MOQ: 1 Unit
-
SINOTRUK HOWO Bitumen Distributor Truck for SaleUS$ 30,000 - 40,000MOQ: 1 Unit
-
Dongfeng 3 Ton Bitumen Spreader Truck, Asphalt Bitumen TankerUS$ 10,000 - 100,000MOQ: 1 Unit
-
Hot Sale 3 Ton Bitumen Tanker Truck, Asphalt Bitumen TankUS$ 10,000 - 100,000MOQ: 1 Unit
Condition
New
Storage
Other, bitumen, road stone,
Drive Wheel
6x4
Horsepower
Other, < 150hp
Transmission Type
Manual
Fuel Type
Diesel
Engine Capacity
9726 cc
Dimensions (L x W x H) (mm)
12000*2500*3460
Brand Name
CLW
Place of Origin
Hubei, China
Model Number
CLW
Gross Vehicle Weight
10370
Asphalt tanker truck,bitumen spraying truck,which is mainly used for road construction.
Currently our company produce the asphalt spraying truck 3000~14000 liter design.
Meanwhile,our company also produce the multi-function truck that asphalt spraying with crush stone paver.
Welcome for your inquiry.
8000 liter bitumen spreader with 12000 liter crush stone paver
Main Specification
8000 liter bitumen spreader with 12000 liter crush stone paver
| Item | Unit | Description | ||||||||
| Model | Sino Brand Bitumen Spraying Truck | |||||||||
| Dimension | mm | 12000*2500*3460 | ||||||||
| Tank Dimension | m3 | Bitumen | 2500*2350*2100 / 8 m3 | |||||||
| Crush stone | 4500*2480*1400 / 12 m3 | |||||||||
| Curb Weight | kg | 10370 | ||||||||
| Wheel Base | mm | 1800+4600+1350 | ||||||||
| F/R track base | mm | 2022 / 2022 / 1830 | ||||||||
| F/R Axle-load | Kg | 6500 / 7000 / 16000 / 16000 | ||||||||
| Approach/Departure angle | . | 16 / 11 | ||||||||
| Traction system | 8*4 | Tire Specification/Number | 12.00-20 / 12+1 Unit | |||||||
| Max speed | 90 km/h | Number of axles | 4 | |||||||
| Engine model | WD615.96E | Emission/kw | 9726ml/276Kw, 370HP | |||||||
| Diesel, 6 cylinder, Tubocharged and Watercooling. | ||||||||||
| Engine Manufacturer | Wei Chai Engine Power Co.,Ltd | |||||||||
| Steering | Powering | Transmission | 10F&2R, HW13710C | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Driven System | Left hand or Right hand | |||||||||
| Air Condition | YES | CD player, Radio, | ||||||||
| Spraying Specification | ||||||||||
| Type | Intelligent Design | Intelligent Design | ||||||||
| China component | European Component | |||||||||
| Asphalt Pump | QGB950 | TGGP-185-125 | ||||||||
| 950 L/Min | 185 L /Min | |||||||||
| Fire Manner | Auto electronic | |||||||||
| Heating Manner | Thermal Oil heated by fuel | |||||||||
| Nozzle Quantity | 32 Unit | |||||||||
| Spraying width | 4 m | |||||||||
| Operation manner | Computer | computer | ||||||||

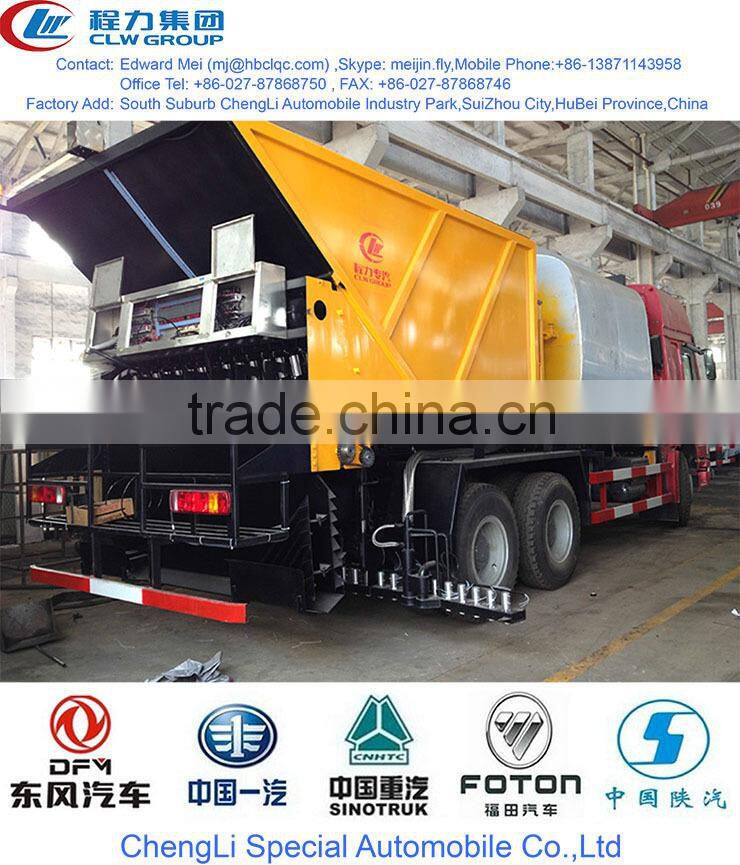

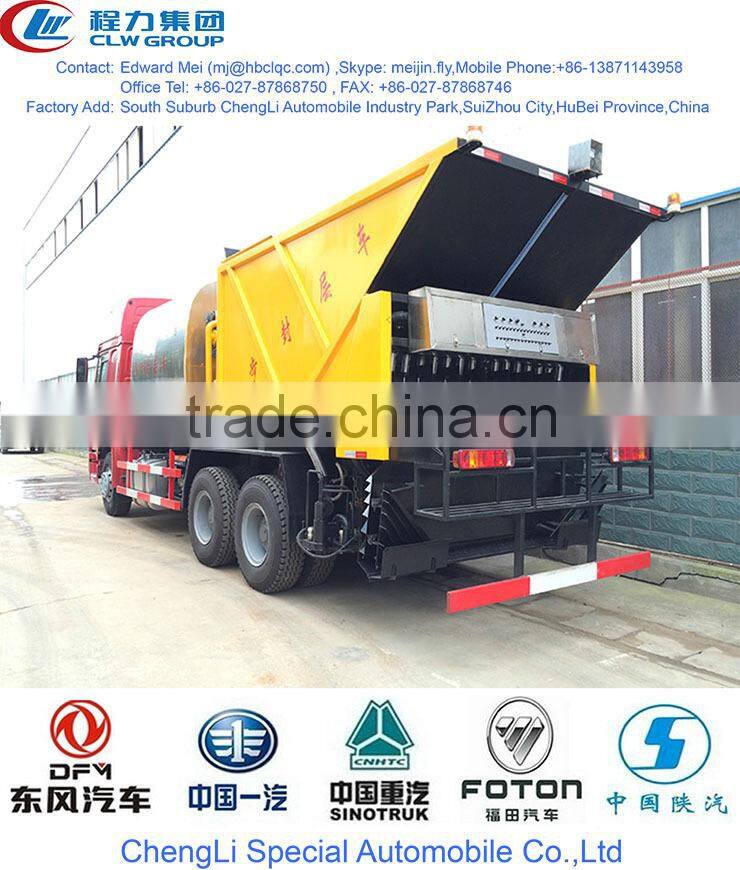

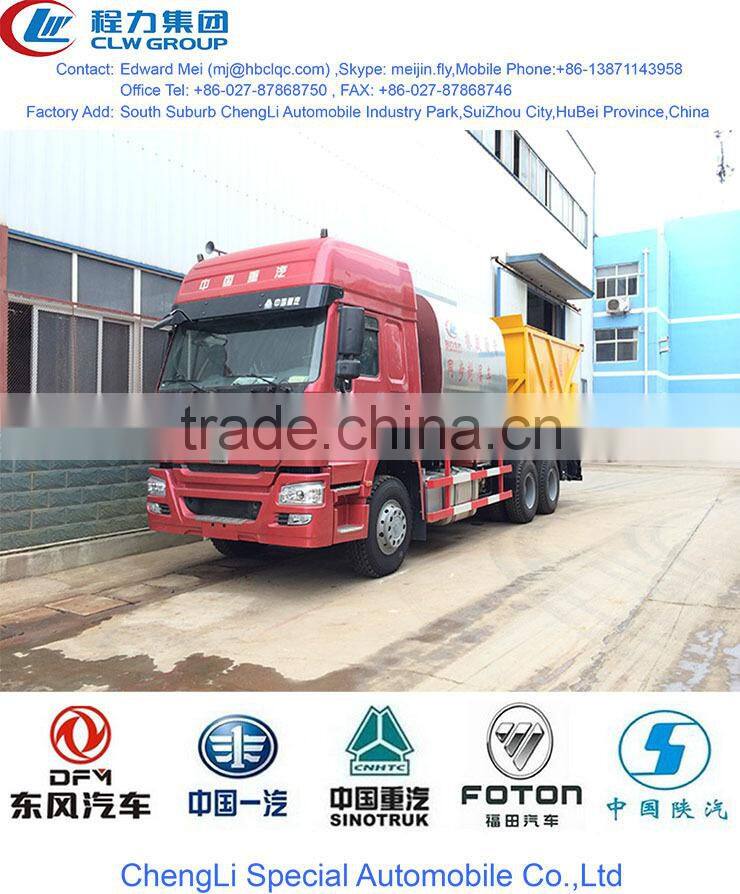

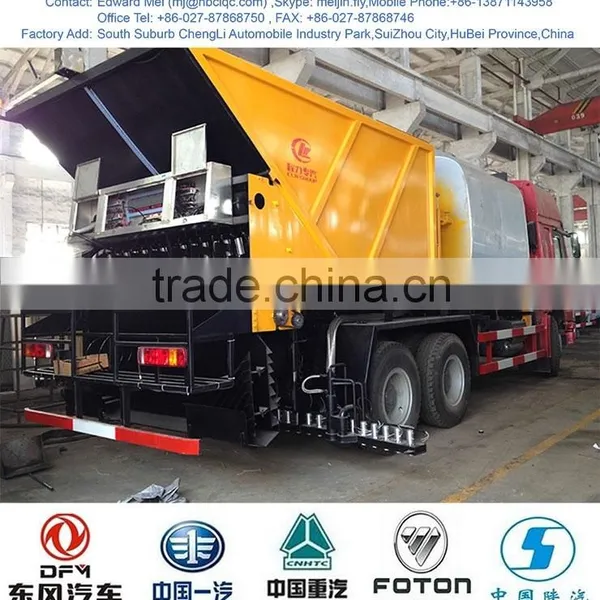

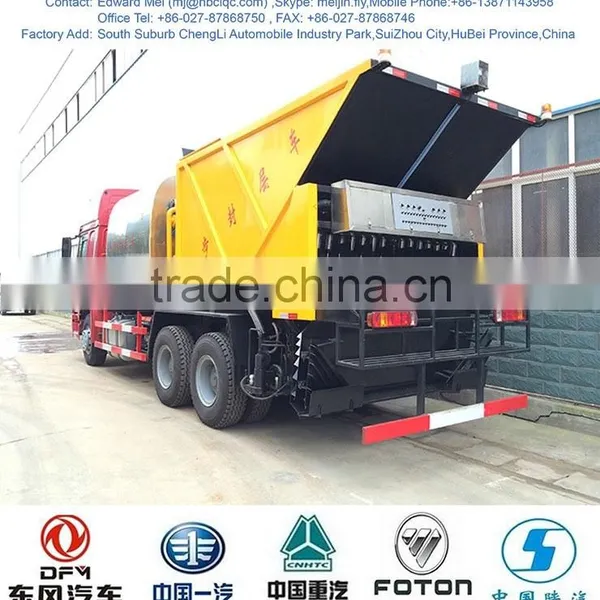

More photos showing.

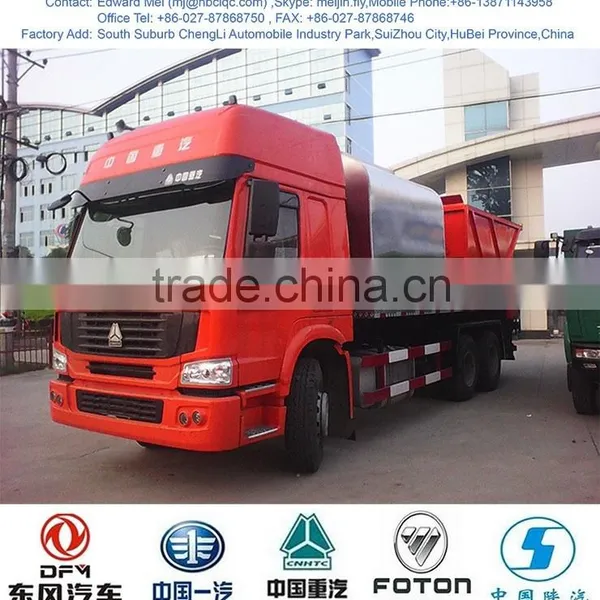

8000 liter bitumen spreader with 12000 liter crush stone paver

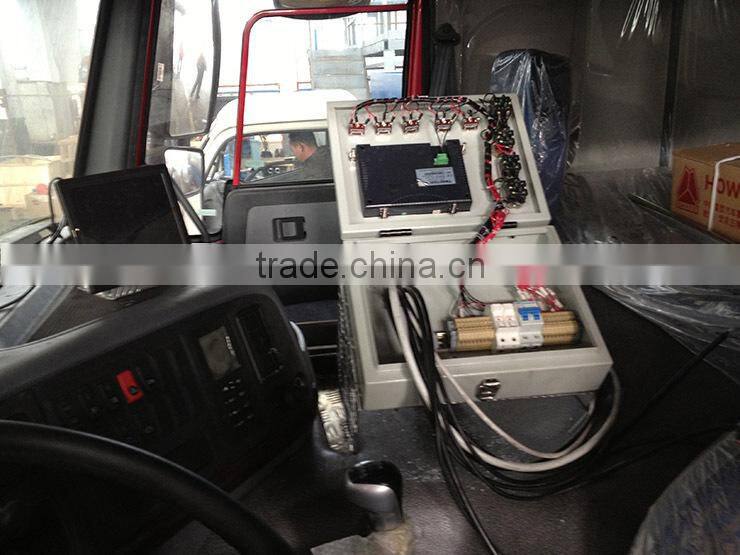

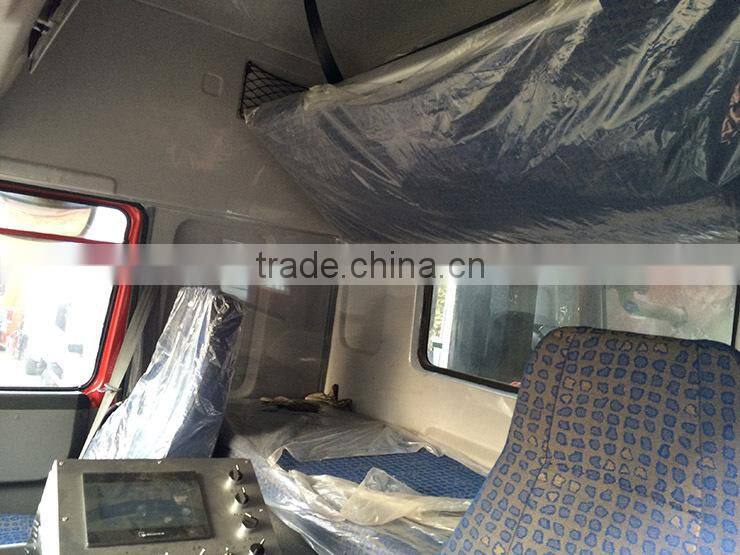

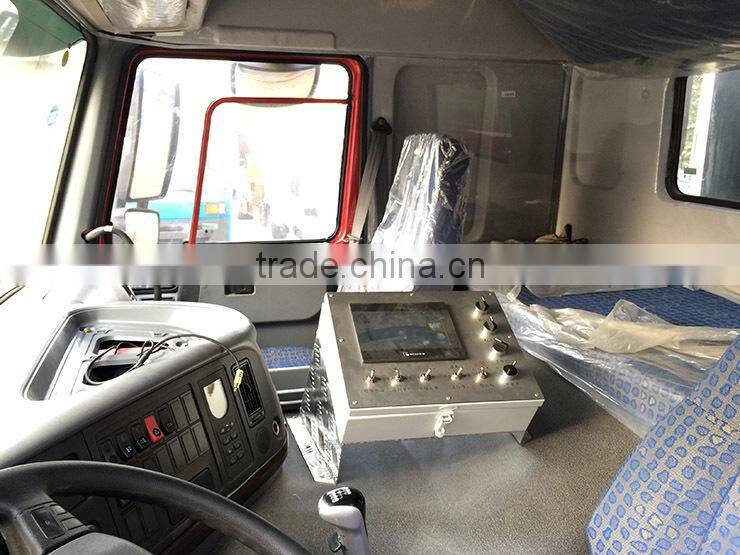

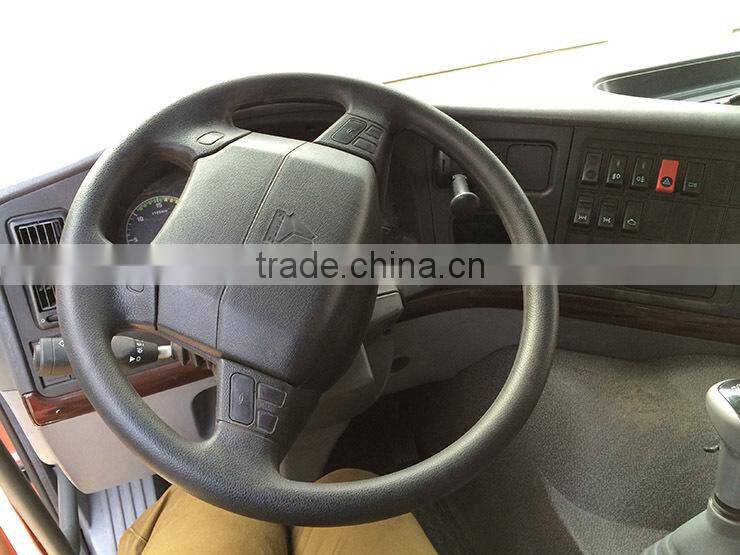

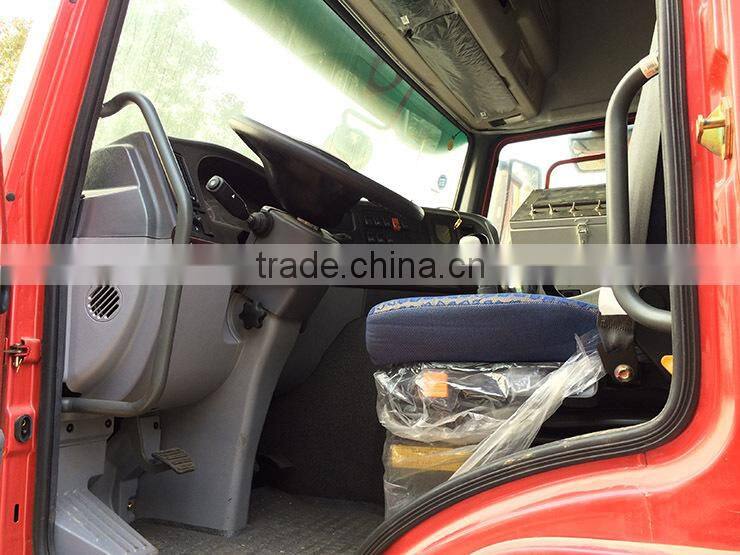

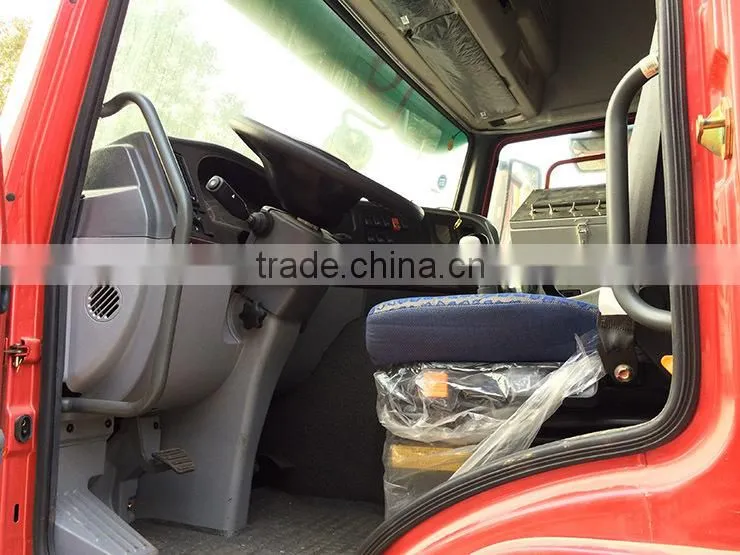

Cab inside showing
8000 liter bitumen spreader with 12000 liter crush stone paver

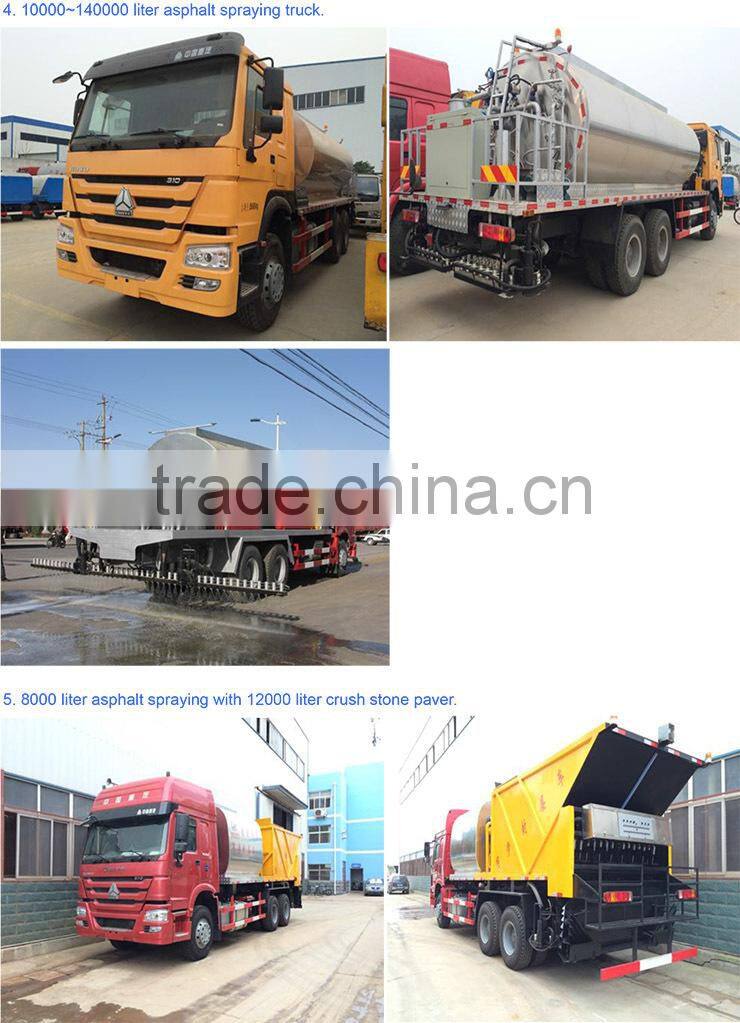

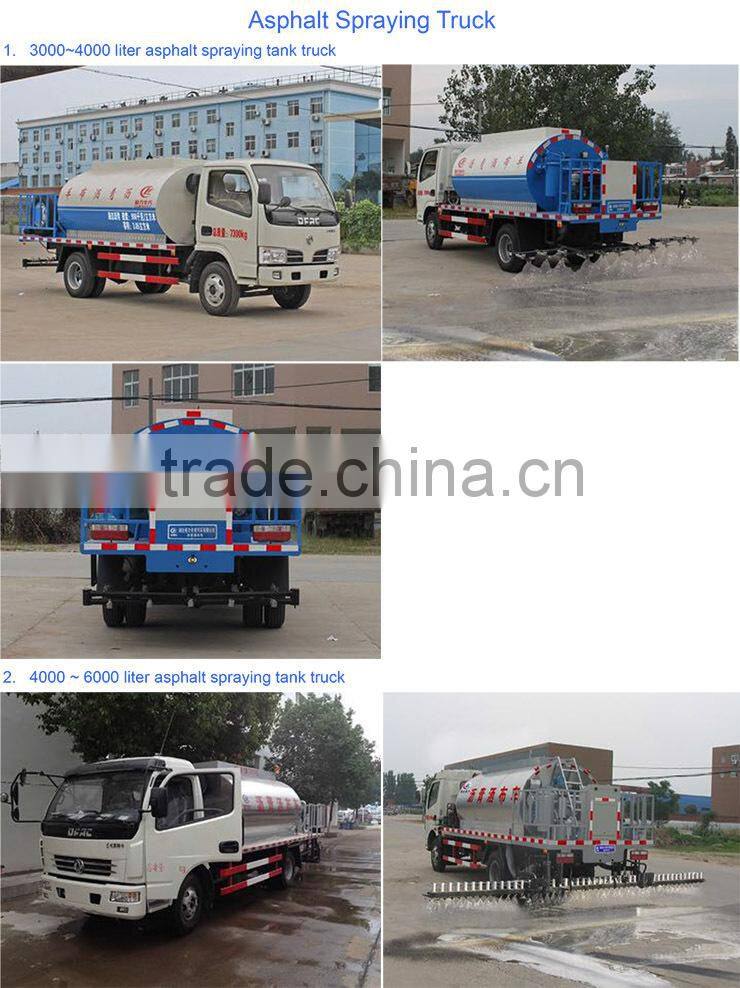

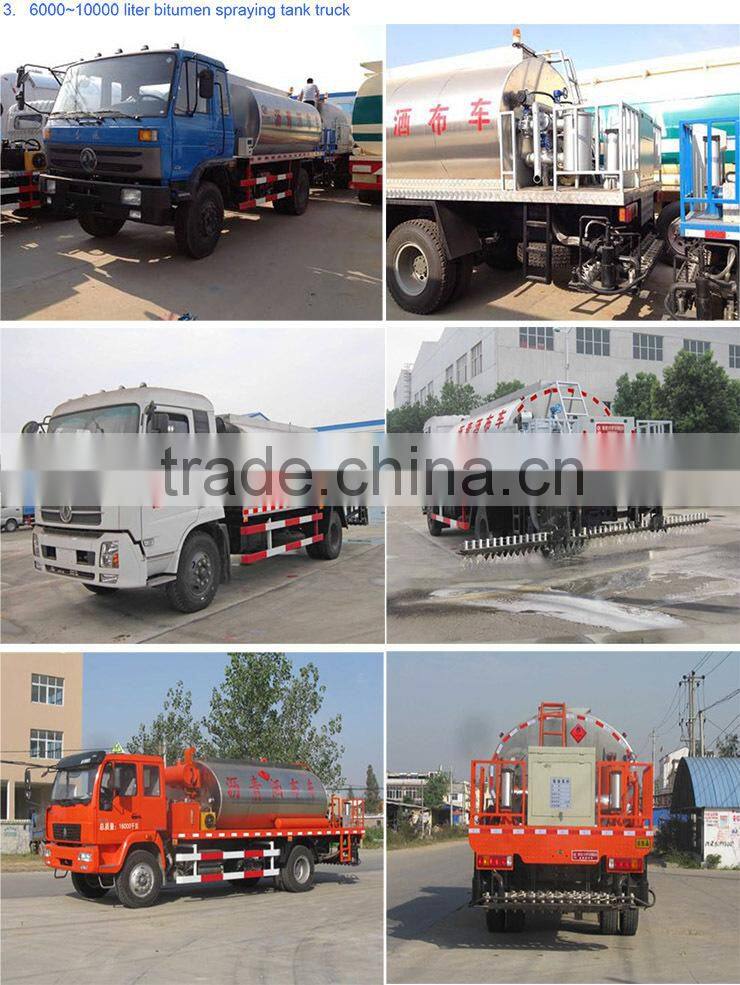

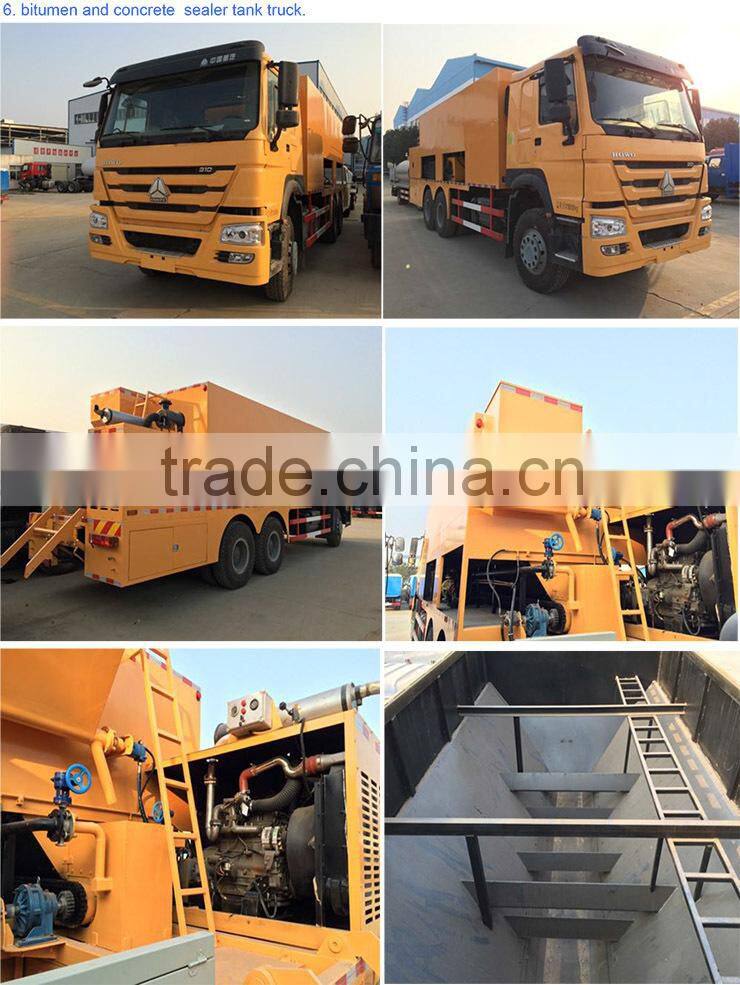

Related product show
8000 liter bitumen spreader with 12000 liter crush stone paver
