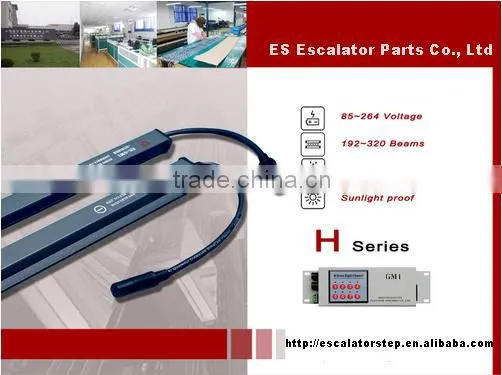

GM1, H Series, Light Curtain ,Elevator Light Curtain

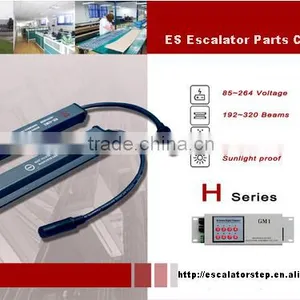

GM1, H Series, Light Curtain ,Elevator Light Curtain thumbnail-1
GM1, H Series, Light Curtain ,Elevator Light Curtain photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ES
Model Number:
GM1
Contact Supplier Request Quote Chat Now
ES (Nanjing) Escalator Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ES
Model Number GM1
 GM1, H Series, Light Curtain ,Elevator Light CurtainGM1, H Series, Light Curtain ,Elevator Light Curtain

Product Description
Specification                                  Model
192H 320HG
No. of diodes 64 64
Max. beams 192 320
Min. beams 192 192
Distance between Two Diodes emitter/ receiver 42/ 55 mm
Size 1980 height x 30 width x 9/16/35 thickness mm
Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available
Light curtain Detecting Distance 0~4.5 meters     Customized to reach 20 meter
Light-proof can work under the sunlight ≥100,000 lux
Installation Tolerance Vertical ≤±20mm, horizontal ≤± 10mm, angle ≤±7°
Working Temperature -25°C~+65°C
IP Ip33 circuit strip    Ip63 controller box
Response Time ≤80 ms
Cable Strength 3C, 4.5M*2, 1 million times of life
EMC En61000 GB/T17626
Timeout Response 25±5s Buzzer rouse
Power ≤7.5 VA
Voltage Range 85~264VAC 60/50Hz
