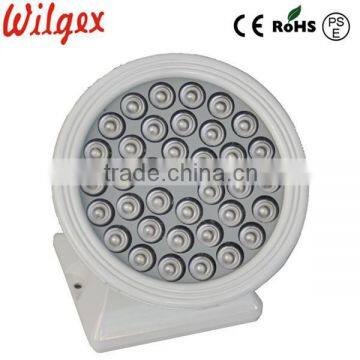

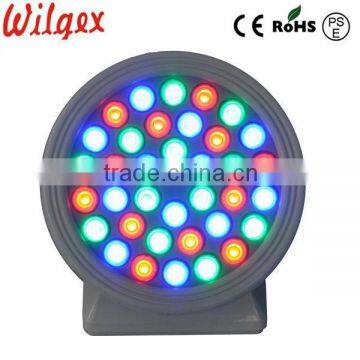

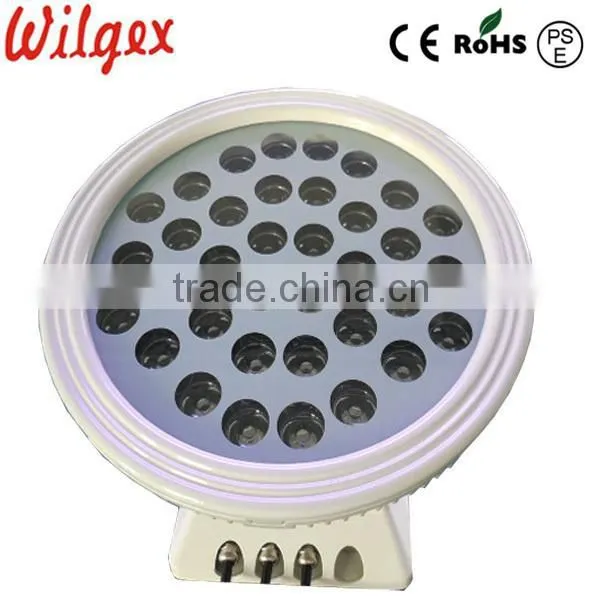

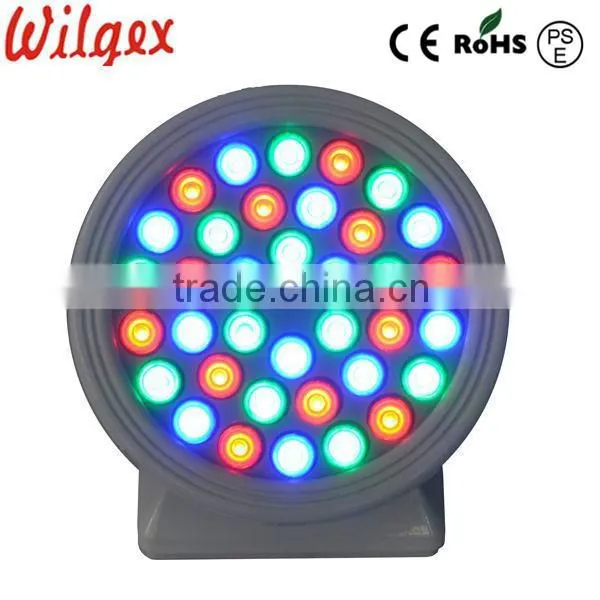

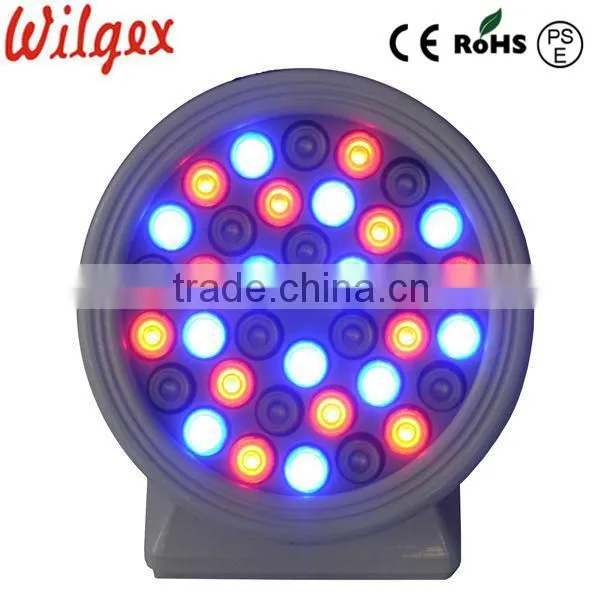

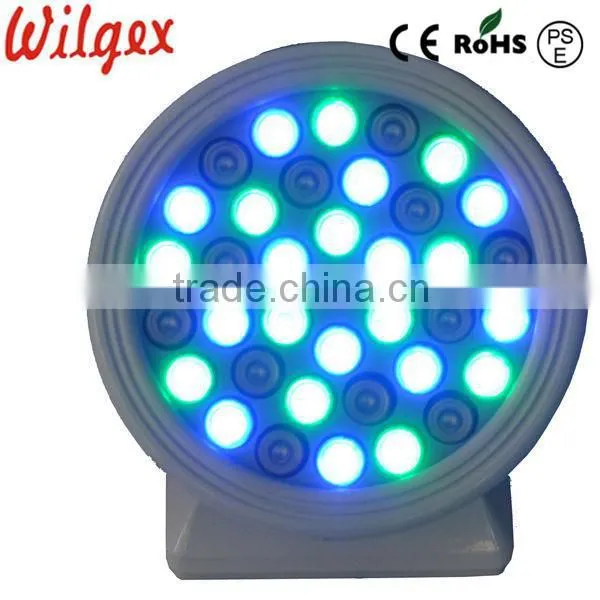

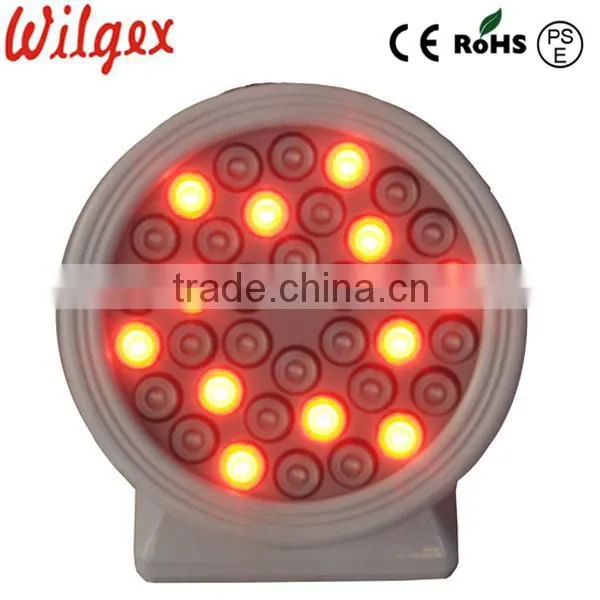

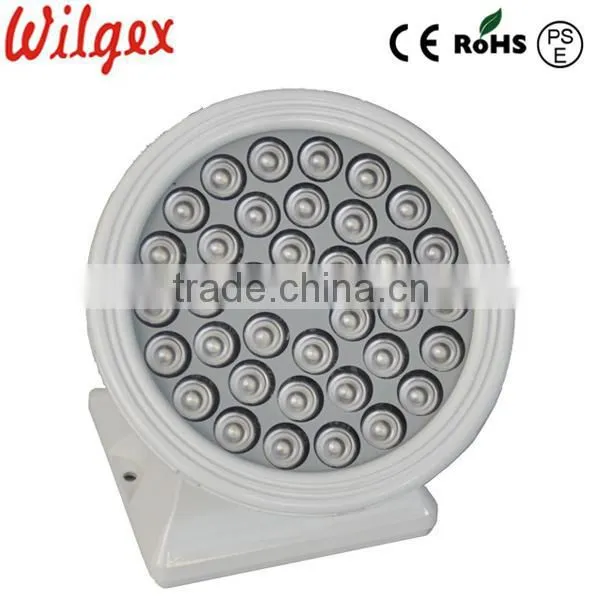

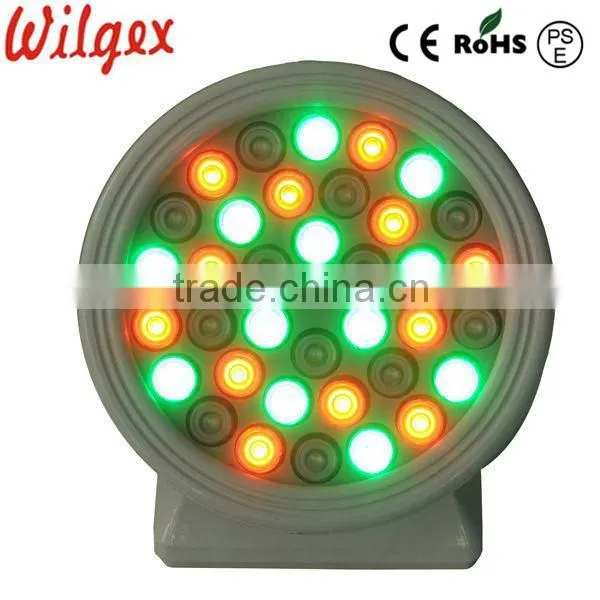

DMX LED lamp 36W

Name: DMX LED lamp 36W
Brand: WILGEX
Price: Negotiable

FOB Price

Negotiable / Piece

4 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Yantian Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Edison	Warranty(Year):	2	Input Voltage(V):	100-256V AC
Lamp Power(W):	36	Lamp Luminous Flux(lm):	2880	Lamp Luminous Efficiency(lm/w):	80
Color Temperature(CCT):	Other, RGB	Working Temperature(℃):	-20, 60	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP65	Certification:	CE, PSE
Place of Origin:	Guangdong, China	Brand Name:	WILGEX	Model Number:	WJ-LWW-6-36P-RGB

Product Description

Detailed Information for DMX LED lamp 36W

Features & Benefits

• High brightness LEDs creates a bright wash of light,projecting up to 65 feet

• Link up to 30 RGB LED Wallwasher in a single run

• Link multiple controllers together to create large scale synchronized lighting effects

• Suitable for heavy duty use(more than 12 hours per day)

• Can meet the most specific lighting-effect requirements with 16,777,216 possible available colors

• Mounting gears and simple rotating mechanisms included to aid easy installation and removal.

• Adjustable angle design and easy installation maximized on site flexibility

• RGB color-changing modes operating through our DMX controller can handle sophisticated tasks

• IP65 rated-perfect for both indoor and outdoor applications

• High quality LEDs used,ensuring RGB LED Wallwasher a long life span of over 50,000 hours

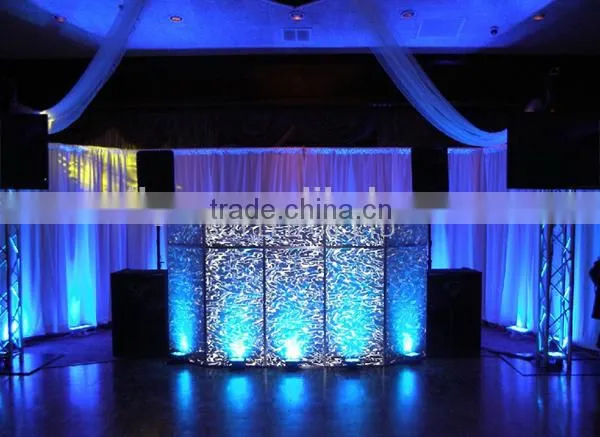

Applications & Uses

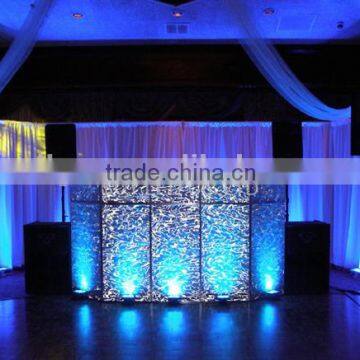

• Indoor/Outdoor social events:parties,weddings

• Corporate engagements & trade shows

• Restaurant & dance clubs

• Garden & outdoor accents

• Exterior & architectural lighting

• Indirect & accent lighting

• Billboard & outdoor signage

Certificates

• CE ROHS PSE

Specifications

Physical Specifications
Dimension	D230H190mm (D9.05H7.48inches)
Housing	Die-casting aluminum casing;tempered glass
Net weight	4.4KG
Rotary Angle	150°
IP Rating	IP65(suitable for dry,wet,and damp environments)

Electrical Specifications
Lighting Source	1W LED
LED Quantity	36 LEDs
Operation Temperature	-20°C~40°C(-4°F~104°F)
Input Voltage	100-256V AC
Power Consumption	36W
Control System	Independent,DMX,Master/Slave mode

Optical Specification
Chip type	Edison
Beam Angle	15 ° ,25 ° ,30°,45°,60°,90°,30 °*60 °
Color	RGB
Lighting Distance	20 meters

Three Different Shapes for RGB LED Wallwasher

Quick Link to other categories of Wilgex's products

Linear Type LED Wall Washers,

Round Type LED Wall Washers.

LED Underwater Lights,

LED Neon Flex

LED Inground Lights

LED Garden Lamp

Illustration of structures

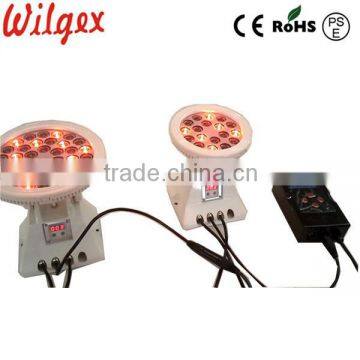

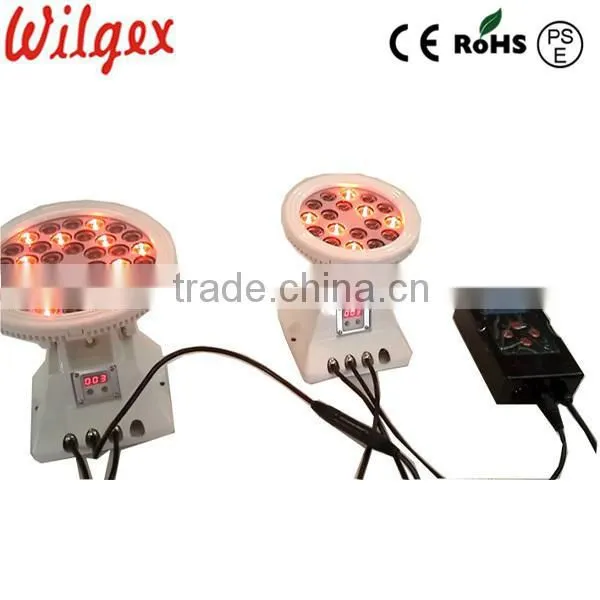

Connecting to DMX directly diagram

IP65 Raining Test for RGB LED Wallwasher

Workmanship for RGB LED Wallwasher

CE,ROHS,IP65,IP68 Certificates

Packaging Picture for RGB LED Wallwasher

Photo Gallery for Exhibitions
