Home > Products > LED Wall Washer > Remote Controll LED Wall Washer Die Casting Aluminum Housing

Share|

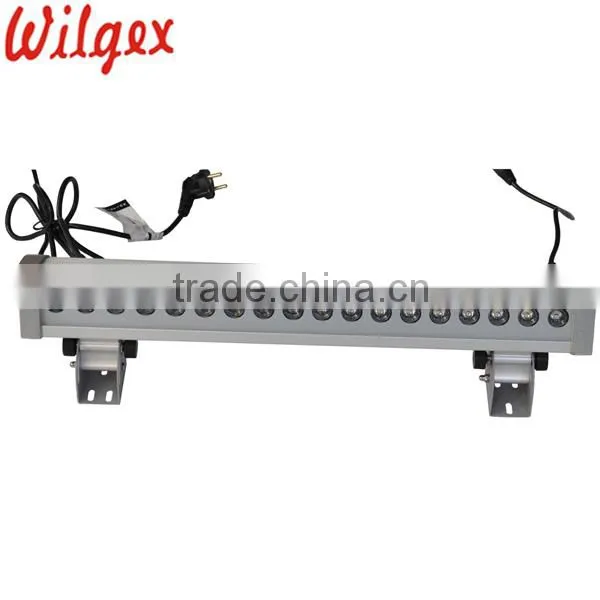

Remote Controll LED Wall Washer Die Casting Aluminum Housing

Name: Remote Controll LED Wall Washer Die Casting Aluminum Housing
Brand: Wilgex
Price: Negotiable

FOB Price

Negotiable / Piece

4 Pieces(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Edison	Warranty(Year):	2	Input Voltage(V):	100-256
Lamp Power(W):	18	Lamp Luminous Flux(lm):	1440	Lamp Luminous Efficiency(lm/w):	80
Color Temperature(CCT):	Other, Single color or RGB	Working Temperature(℃):	-20, 40	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	IP65	Certification:	CE, EMC, LVD, PSE
Place of Origin:	Guangdong, China	Brand Name:	Wilgex	Model Number:	WJ-LWW-5-18P-RGB-L580mm

Product Description

Detailed Information for 2014 Most Popular Remote Controll LED Wall Washer

Features & Benefits

• High brightness LEDs creates a bright wash of light,projecting up to 65 feet

• Link up to 30 DMX LED Wall Washer in a single run

• Link multiple controllers together to create large scale synchronized lighting effects

• Suitable for heavy duty use(more than 12 hours per day)

• Can meet the most specific lighting-effect requirements with 16,777,216 possible available colors

• Mounting gears and simple rotating mechanisms included to aid easy installation and removal.

• Adjustable angle design and easy installation maximized on site flexibility

• RGB color-changing modes operating through our DMX controller can handle sophisticated tasks

• IP65 rated-perfect for both indoor and outdoor applications

• High quality LEDs used,ensuring DMX LED Wall Washer a long life span of over 50,000 hours

Applications & Uses

• Indoor/Outdoor social events:parties,weddings

• Corporate engagements & trade shows

• Restaurant & dance clubs

• Garden & outdoor accents

• Exterior & architectural lighting

• Indirect & accent lighting

• Billboard & outdoor signage

Certificates

• CE ROHS PSE

Specifications

Physical Specifications
Dimension	L580W130H82mm(L22.83W5.12H3.23inches)
Housing	Die-casting aluminum casing;tempered glass
Net weight	3.0KG
Rotary Angle	150°
IP Rating	IP65(suitable for dry,wet,and damp environments)

Electrical Specifications
Lighting Source	1W LED
LED Quantity	18 LEDs
Operation Temperature	-20°C~40°C(-4°F~104°F)
Input Voltage	100-256V AC
Power Consumption	18W
Control System	Independent,DMX,Master/Slave mode

Optical Specification
Chip type	Edison
Beam Angle	30°,45°,60°,90°
Color	RGB
Lighting Distance	30 meters

Three Different Shapes for LED Wall Washers

Quick Link to other categories of Wilgex's products

Linear Type LED Wall Washers,

Round Type LED Wall Washers.

LED Underwater Lights,

LED Neon Flex

LED Inground Lights

LED Garden Lamp

Illustration of structures

Connecting to DMX directly diagram

Lighting Effects for DMX LED Wall Washer

IP65 Raining Test for LED Wall Washers

Workmanship for LED Wall Washers

CE,ROHS,IP65,IP68 Certificates

Packaging Picture for DMX LED Wall Washer

Photo Gallery for Exhibitions

Contact Us

Dongguan Wilgex Lighting Co., Ltd.: Contact nameAlex Sun; Phone86-769-81553949,85475606,85072; AddressBuilding 7B Minyi Road 6th Wusha Industrial District Changan Town Dongguan City Guangdong P.R.C China Dongguan,Guangdong
