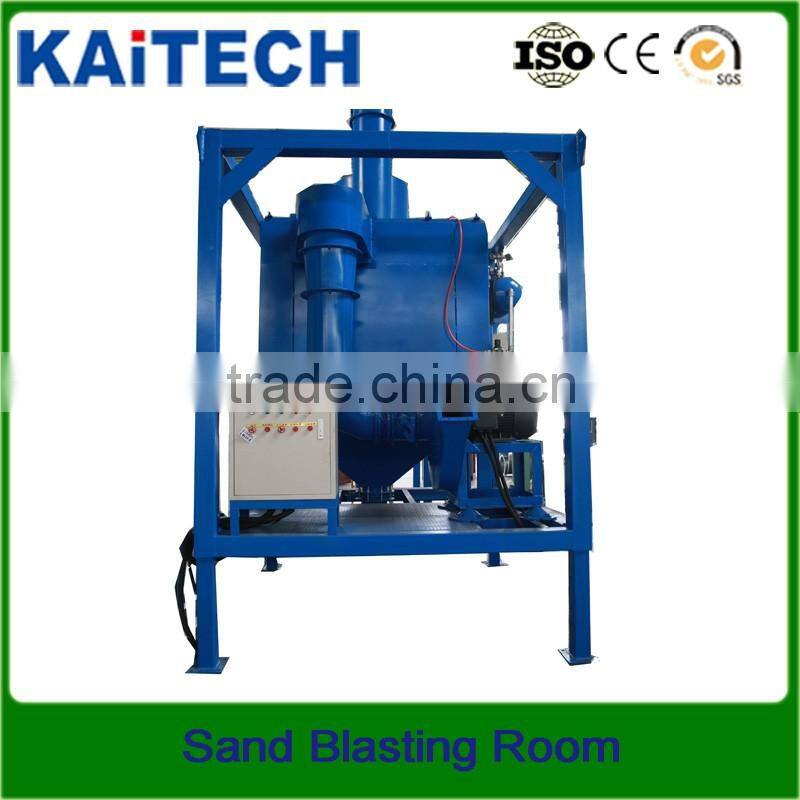

Environmentally Industry cleaning large parts: blasting room
Tell us your detailed needs:
1. What’s the Layout of your factory?
2. What’s the dimension and the material of your workpiece?
3. What’s the effect you wanted to reach? etc.

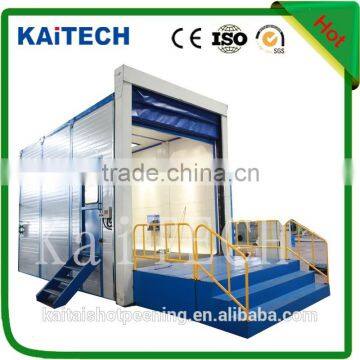

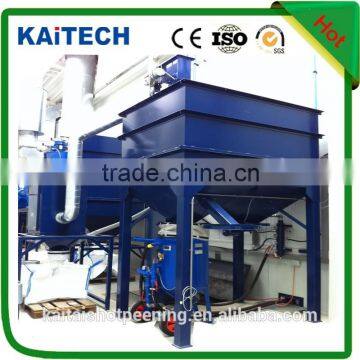

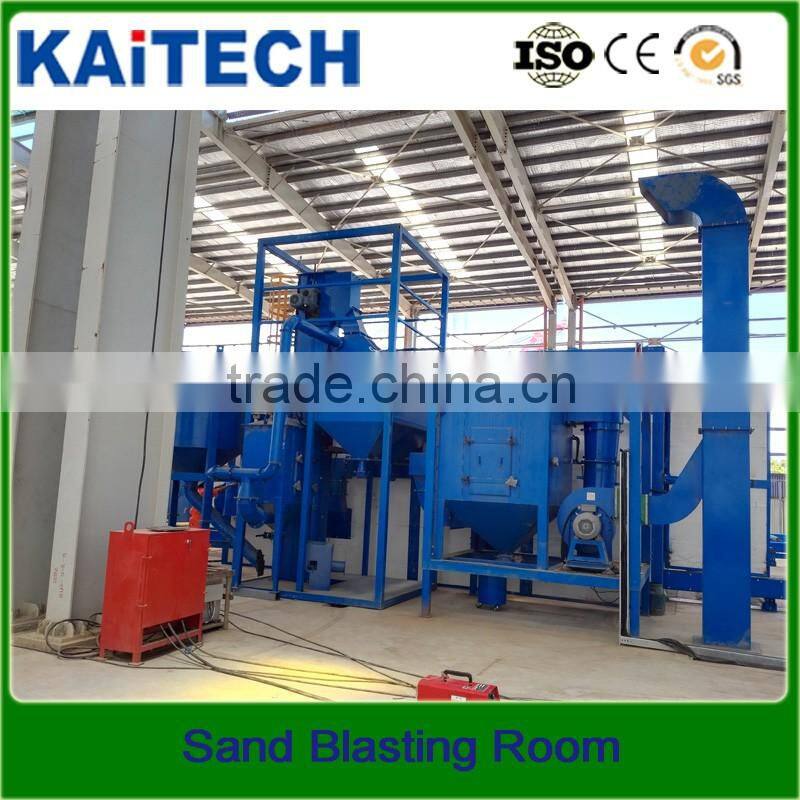

Blasting Room with Recovery System & Ventilation Dust Collector

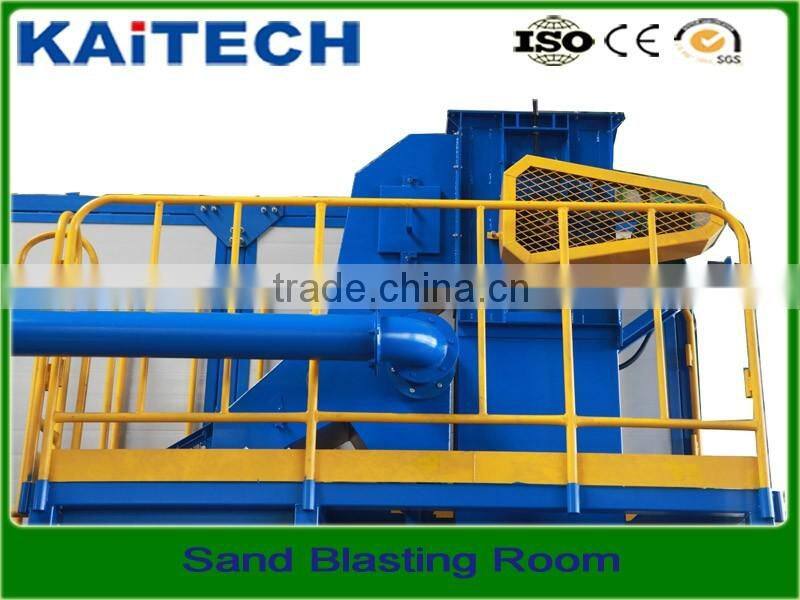

- Belt conveyor + Bucket Elevator + Air wash type separator
- Scrap + Belt Conveyor + Bucket Elevator + Air wash type separator
- Screw conveyor + Bucket Elevator + Air wash type separator
Performance
- The mechanic recovery blasting room adopts mechanic recovery system to recovery abrasives and the abrasives can be chosen according to requirements. The abrasive usage is high and process productivity is also high.

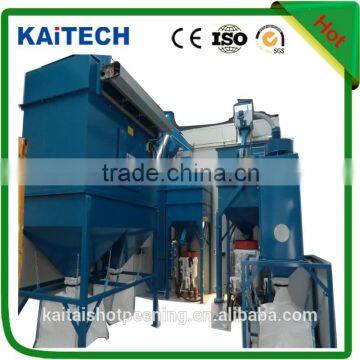

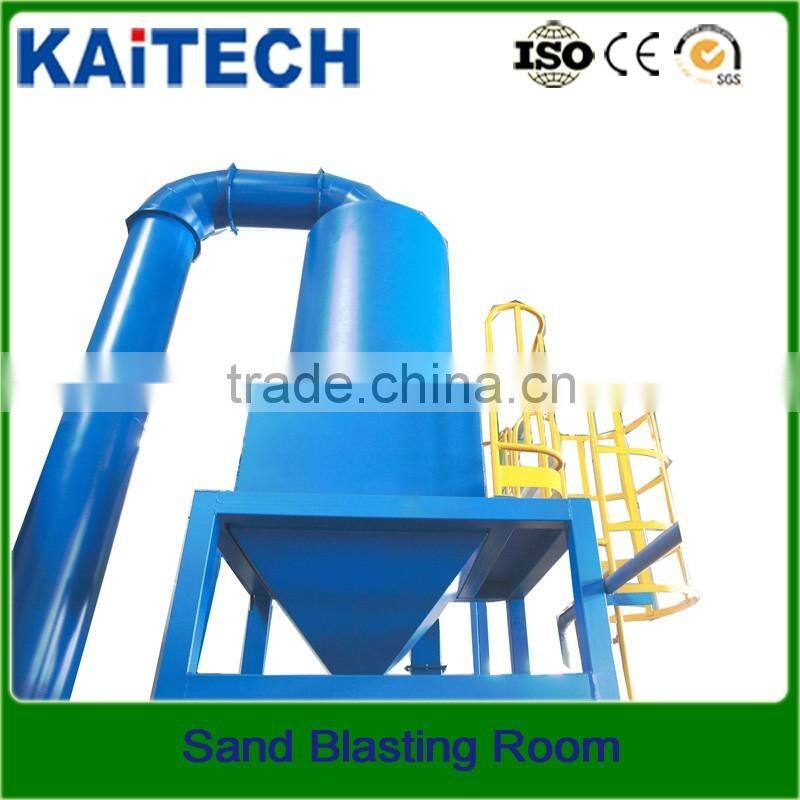

- The dust removing system adopts two stages dust removing, and the dust removing efficiency can reaches 99.99%.
- The air flow in ventilation in this kind of blasting room can be adjustable to prevent the abrasives from entering cartridge filters. Thus it can reduce the lost of abrasives and can have a good dust removing efficiency.
- The main electrical elements in this blasting room uses Japan/EU/USA brand. They have advantages of reliability, safety, long life service and easy maintenance.
- Use widely: It applies to middle and small size of blasting room to do pre-treatment jobs such as rough, casting, welding, heating, steel structure, container, transformer shell, special parts and so on.
Mechanic recovery blasting room size
No |
Model |
Size of room |
Size of jobs |
Spray gun quantity |
1 |
XDL-0606-M1 |
6000*6000*5000MM |
3000*3000*2500MM |
2 |
2 |
XDL-0606-M2 |
6000*6000*6000MM |
3000*3000*3500MM |
2 |
3 |
XDL-0606-M3 |
8000*6000*5000MM |
5000*3000*2500MM |
2 |
4 |
XDL-0606-M4 |
8000*6000*6000MM |
5000*3000*3500MM |
2 |
5 |
XDL-0606-M5 |
10000*6000*6000MM |
7000*3000*3500MM |
2 |
6 |
XDL-0606-M6 |
15000*6000*6000MM |
12000*3000*3500MM |
2 |
7 |
XDL-0606-M7 |
15000*8000*6000MM |
12000*5000*3500MM |
2 |
8 |
XDL-0606-M8 |
18000*8000*6000MM |
15000*5000*3500MM |
2 |
9 |
XDL-0606-M9 |
18000*10000*8000MM |
15000*7000*5500MM |
2 |
Benefits
(1)No need deep pit,save construction cost,shot construction period
(2)Can change different types of metal abrasive,strong adaptability,meet different technology requirement
(3)Recovery efficient of metal abrasive is high
(4)Key wear parts is standard,convenient repair and replacement,to avoid heavy repair tasks.
Equipment spare parts
Vacuum sand suction machine conveys metal abrasive into sand storage barrel through the pneumatic conveying system and using high speed air flow.In this way,metal abrasive recovery is most efficient,most economical and most effective, besides,small structure,easy operation,easy maintenance and high efficiency.
Product R&D
(1)High talent to lead R&D team, 3D design of sand (shot)blasting equipment,achieve part and overall sand(shot)blasting equipment standardization.
(2)Introduced by Holland Airblast professors, absorb advanced sand/shot blasting technology abroad, meantime, we analysis national situation and use into order from domestic and foreign customers effectively.
Sand blasting booth is a widely used pre-treatment equipment,main application is as follows:
shipyard,aerospace,military weapons,engineering machinery,petroleum and petrochemical,hydraulic machinery,mining machinery,electrical equipment,bridge,steel structure,railway vehicle, car,container parts,especially pre-treatment process for large irregular workpiece and small precision parts.
Shandong Kaitai Group is the biggest manufacturer of metal abrasive in Asia which integrates with technical research, development and production. Cooperating with Material Science & Engineering College of Shandong University and guided by experts and professors of metal abrasive field.
The company has developed 8 series including cast steel shot, cast steel grit, steel cut wire shot, stainless steel shot, stainless steel cut wire shot, aluminium shot, zinc shot, copper shot, 80 kinds of abrasive products. The company could produces 250,000 tons metal abrasive.
The company is Advanced & New Technology Enterprise of Shandong Province and National Blasting & Peening Standardization Technology Committee Unit. With strong technical force, advanced equipment like intermediate frequency induction furnace, centrifugal blasting machine and so on. The company could produces high strength, strong durability cast steel shot, cast steel grit through double quenching, tempering, screening and so on.
The company has perfect quality control system. The company has introduced two Ervin Test Machine from USA. Ervin Test Machine is mainly used for testing fatigue life of metal abrasive. In additional, the company also has introduced SPECTRO spectral analyzer from Germany to test ingredient of metal abrasive. The quality of products has met SAE & ISO international standards and the company has passed international standard ISO9001.
The products have exported to more than 20 countries and regions and have got good comments from domestic and abroad users of foundry plant, forging plant, heat treatment shop, steel structure plant, container manufacturer, shipyard, auto and locomotive manufacturer and stone industries.

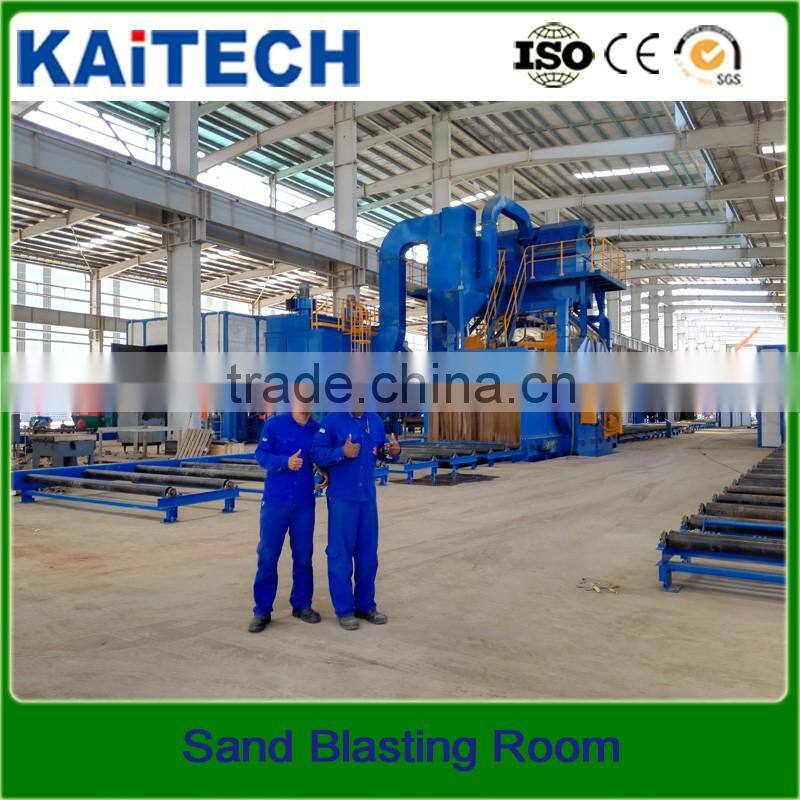

Pic for Factory
1. We promise the name, model, specification and quantity comply with technical protocol and assure the machine is new equipment with qualified material manufactured through perfect technology. There are no defects in design, material and technologies, which is suitable for propose of the demander, and meets the standard of national industry. The quality is stable and reliable.
2. Equipment warranty period is 12 months after the final acceptance (except force majeure, inappropriate operation and the quick-wear parts wears).
3. If there is quality problem in the warranty period, the supplier will reply by means of telephone, fax or e-mail in 2 hours after receiving the written notice of buyer.
4. The equipment will pass the installment and test before delivery, after the quality is qualified, we will disassemble the equipment, coating and deliver.
