Vacuum Sand Suction Machine Made in China
- 5 Set / Sets per Month
- Qingdao China
- T/T
- wood pulp oil filter distributors wanted hh150-32430 replacement oil filter for kubota
- Dongguan diesel generators engine assembly oil filter for generator
- 0020920601 High efficiency low cost diesel particulate filter cleaning diesel parts for MTU
- hot new products for 2015 companies looking for distributors alibaba express hot
- Best wholesale engine oil filter hydraulic oil filter cross reference
- china supplier alibaba express used engine oil specification
Product Details
Place of Origin: | Shandong, China | Brand Name: | Kaitai | Model Number: | VR-90 |
Type: | Other, Suction machine |
Product Description

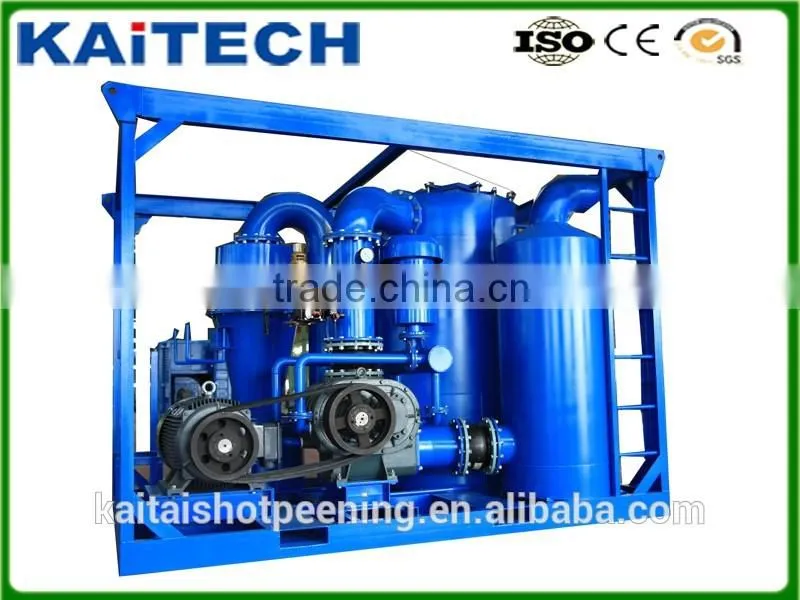

Vacuum Sand Suction Machine Made in China
The main capacity of the vacuum recovery system is to recovery the abrasives accumulated in cabins, oil tanks, or on dry ground and it can also be used to clean the abrasives in some complex structures. The vacuum recovery system design is based on the pneumatic conveying system, using high speed air flow to pick up all the abrasives through a wear-resistant suction pipe and convey the abrasives to the sand storage barrel. It’s much more easy for recovery. The system has the following features:
- It can provide higher productivity compared with the traditional method.
- No mechanical movement on the abrasive recovery pipeline, less faults
- The surface of the workpieces can be painted in time
- There’s no need to move the vacuum recovery system when operating, and it’s easy for maintenance.
Technical data:
Model | VR90 |
Deal with wind volume | 3600 m³/h |
vacuum pressure | -450mmHg |
vacuum pump rotation speed | 1318 rpm |
motor model | 90kw IP55 F class insulation |
voltage | 380- 415V/50Hz |
driving type | V belt transmission |
dust removing type | cyclone dust removal and filtering cartridge impulse |
vacuum overload protection | vacuum pressure-release valve |
machine protection | Phase error,thermal overload ,material level alarm |
filtrate cleaning type | air impulse back flushing |
filtrate efficiency | 99.50% |
air source filtrate type | Oil mist separation /pressure regulating |
noise | 85 dB |
machine structure | frame construction |
startup type | starlike-triangle reduction voltage start |
electric cabinet | IP55 Protection grade |
instrument showing | running current /vacuum degree |
air consumption | 750 l/min at max 10 bar |
Connection pipe size | φ187mm in |
vacuum pump model | 250 |
weight | ~4.2tons |
machine structure size | L3.65×W2.25×H2.5m |
sand tank | Capacity 3.8m3 |
sand tank size | L2.08×W1.86×H3m |
sand tank weight | 0.8 tons |
recovery efficiency | 8~10t/h horizontal distance 15mand vertical distance 30m |
The manual type metal abrasive recovery wastes time and resources, but the vacuum recovery system will do this job in a most efficient, economical and effective way. This suit is designed in small structure, easy operating, easy maintaining and high efficiency. It can finish its job perfectly and completely.
