Home > Products > substation > Mobile Substation ZBW19 Combination Box Type Substation

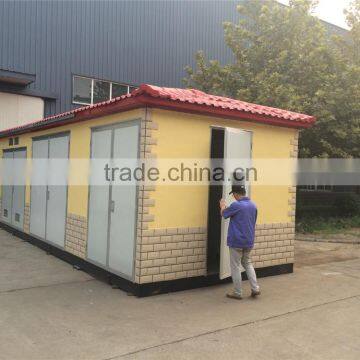

Mobile Substation ZBW19 Combination Box Type Substation
- 200 Set / Sets per Month
- Qingdao Rizhao or According to your requirements
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | Oriental Electrical | Model Number: | ZBW19 |
Product Description
Mobile Substation ZBW19 Combination Box Type Substation
NO. | Item | Unit | high-voltage electrical apparatus | transformer | low-voltage apparatus |
1 | Rated voltage | KV | 6;10 | 6(10)/04 | 0.4 |
2 | rated capacity | KVA |
| 50~1250X2 |
|
3 | rated current | A | 200~630 |
| 100~3000 |
4 | Rated breaking current | A | load switch 400~630 |
| 15~63 |
KA | Combined electrical appliances depend on the fuse |
| |||
5 | Rated short circuit with stand current | KAXS | 20X2 | 200~400kVA | 15X1 |
12.5X4 | >400kVA | 30X1 | |||
6 | Rated peak value withstand current | KA | 31.5;50 | 200~400kVA | 30 |
>400kVA | 63 | ||||
7 | Rated value withstand current | KA | 31.5;50 |
|
|
8 | power frequency withstand voltage(1min) | KV | Phase to phase and to ground:42 | HSNK 35 | ≤300V,2 |
isolating distance:48 | dry-type 28 | >300V,2.5 | |||
9 | lightning impulse withstand voltage (Peak) | KV | Phase to phase and to ground:75 | 75 |
|
isolating fracture:85 | |||||
10 | IP grade |
| IP33 | IP23 | IP33 |
11 | noise level
| dB |
| HSNK <55 |
|
dry-type <65 | |||||
12 | Execution standard: GB 17467-2010 / IEC 17467-2010: 2006 <high voltage/low voltage preinstalled type transformer substation> | ||||
Note: when less than 200 KVA transformer capacity, project 5, 6donot make the request. |
Mobile Substation ZBW19 Combination Box Type Substation
1 | Using the three cooling measures of the natural convection, horizontal natural convection and forced air cooling at the bottom of the special fan, temperature rise there is a big margin. |
2 | Light weight, small volume, high stiffness.
|
3 | High and low voltage electrical room, transformer room, metering box, capacitance are ark into modules, choose combination according to users’ needs. |
4 | Good appearance, low noise, and coordinate with environment and increase the appearance. |
5 | Powerful function, complete facilities, high pressure can meet ring network power supply, and low pressure chamber can have 8 power outlet and 4 road lighting qualification. |

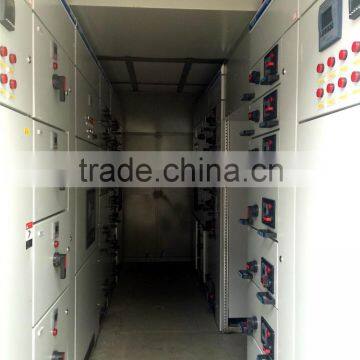

6 | High and low voltage operate corridor is 1 meter wide, all around are outward open door. So, the operation and maintenance is very convenient. |
7 | The adaptability is strong, which can satisfy different design, different customers' requirements. So, it can suit any kind of 10kV high-voltage ring net switch cabinets. Low pressure chamber have low-voltage complete switch equipment's overall function. The transformer room has full sealed or dry type transformer, and the capacity is 50 ~ 1250 KVA.
|
8 | Having the measures of preventing dust-proof, rain, small animals and condensation; having the characteristic of convenient operation, maintenance and installation, etc.
|
High-end equipment/ Mobile Substation ZBW19 Combination Box Type Substation
Workshop/ Mobile Substation ZBW19 Combination Box Type Substation
We are professional manufacturer of high and low voltage switchgear, mining electrical
equipment, industrial and mining automation system, etc. Meanwhile, the company has
obtained ISO9001 quality management system certificate, ISO14001 environmental
management system certificate, OHSAS18001 occupational health and safety
management system certificate.
Q1.Are you a factory or trading company?
We are factory.
Q2.Does the company provide ODM service for others?
Yes.
Q3:Do you have inspection procedures for your products?
Yes. We have standard inspect procedures, professional inspect device and independent inspect area.
Q4:Can I have a visit to your factory before the order?
Sure, we warmly welcome to visit our factory. If necessary, we will provide reception and accommodation booking services.
