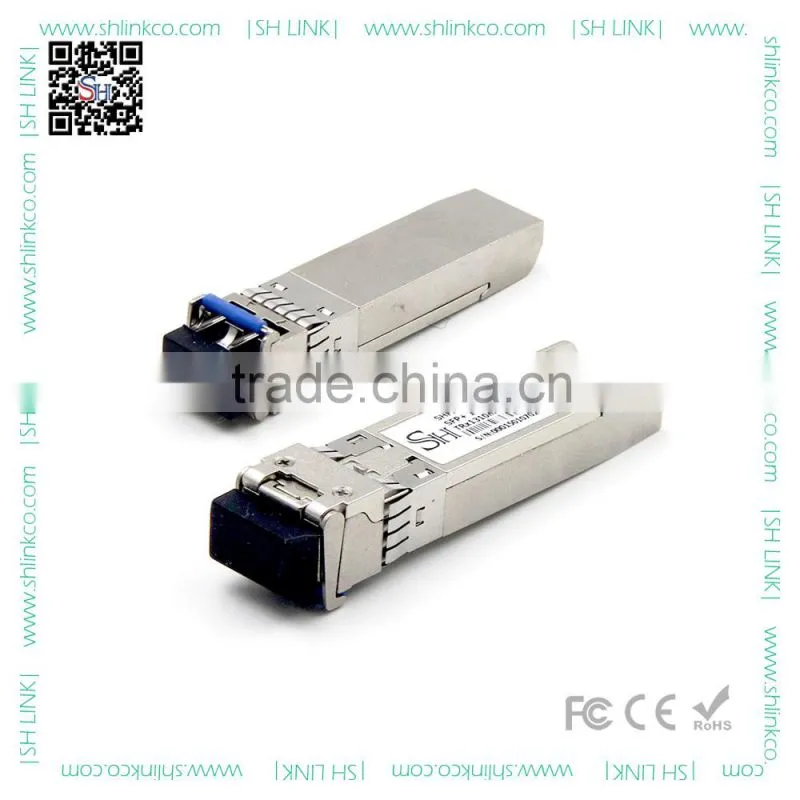

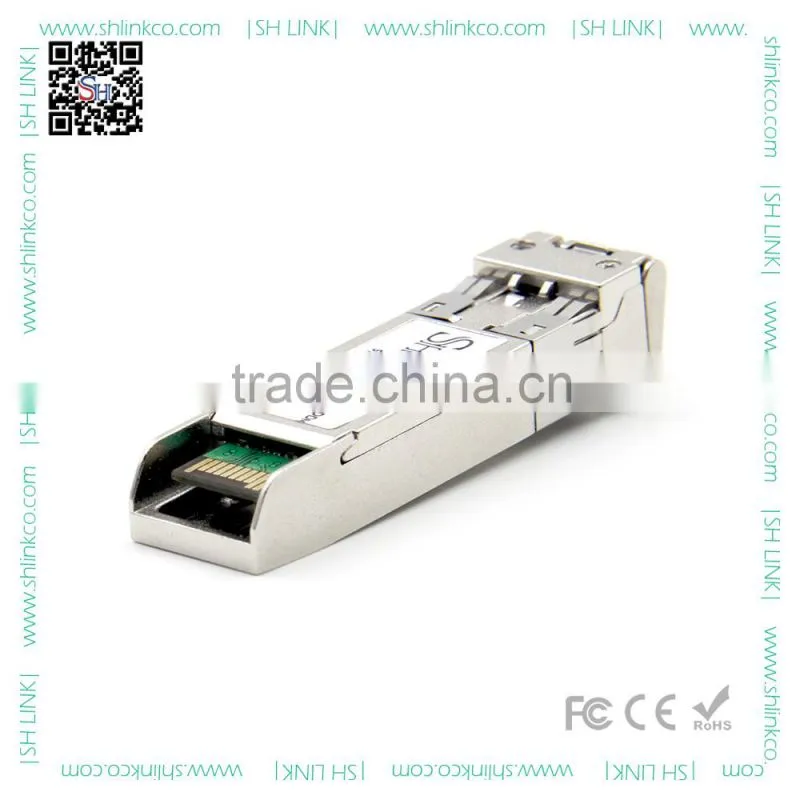

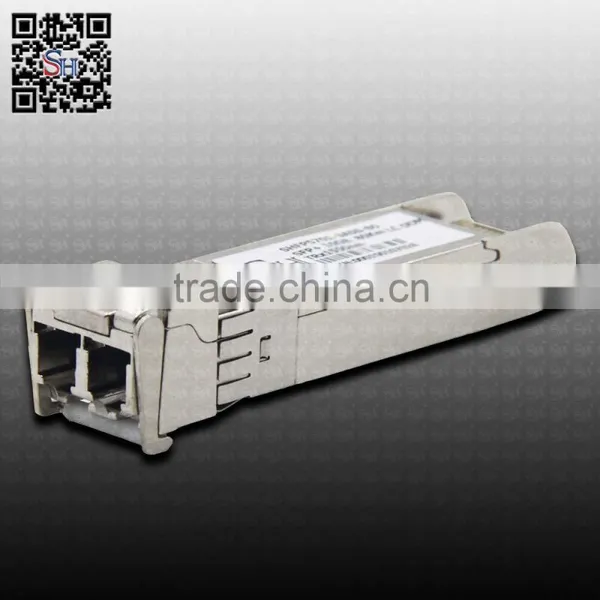

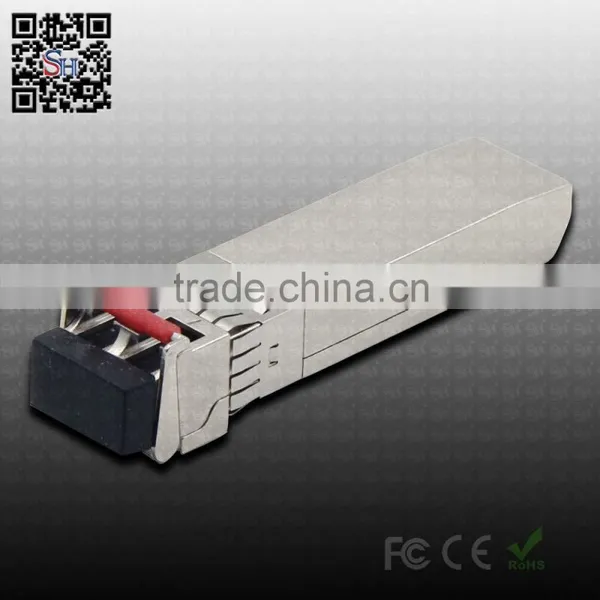

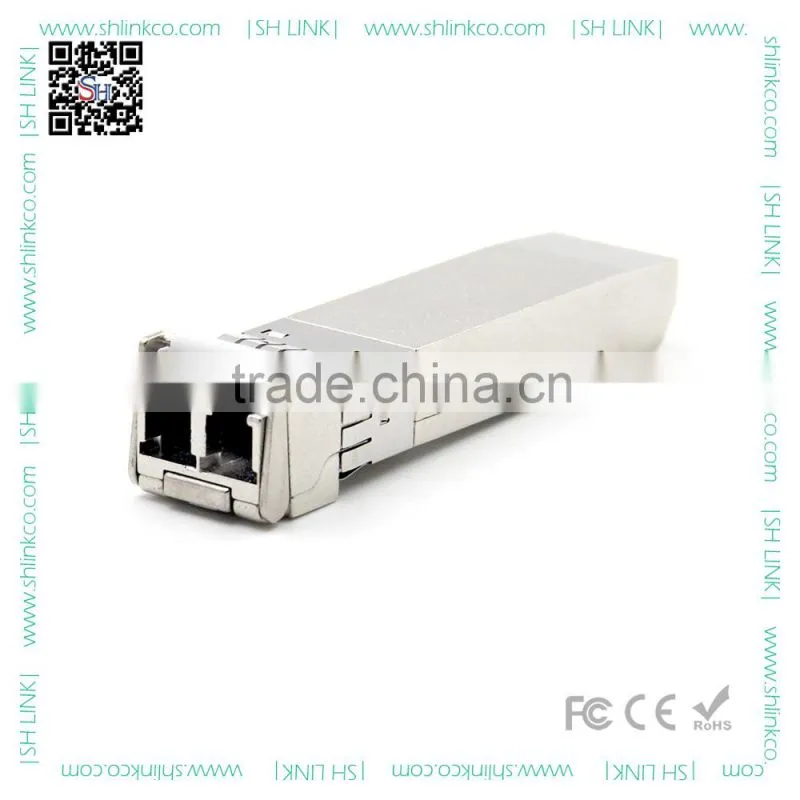

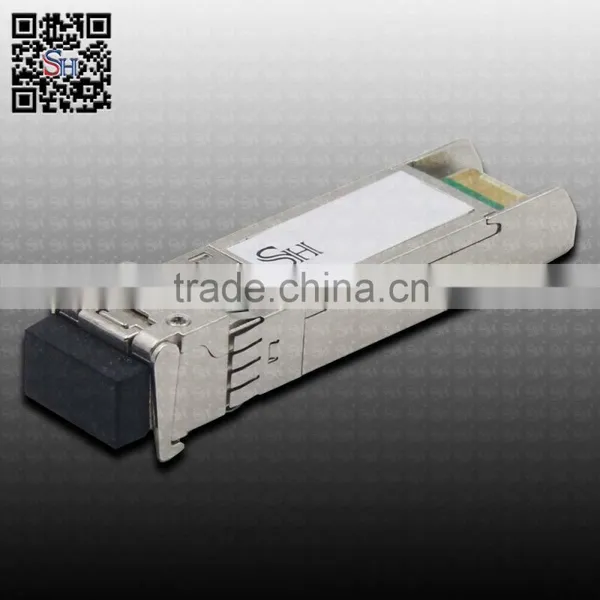

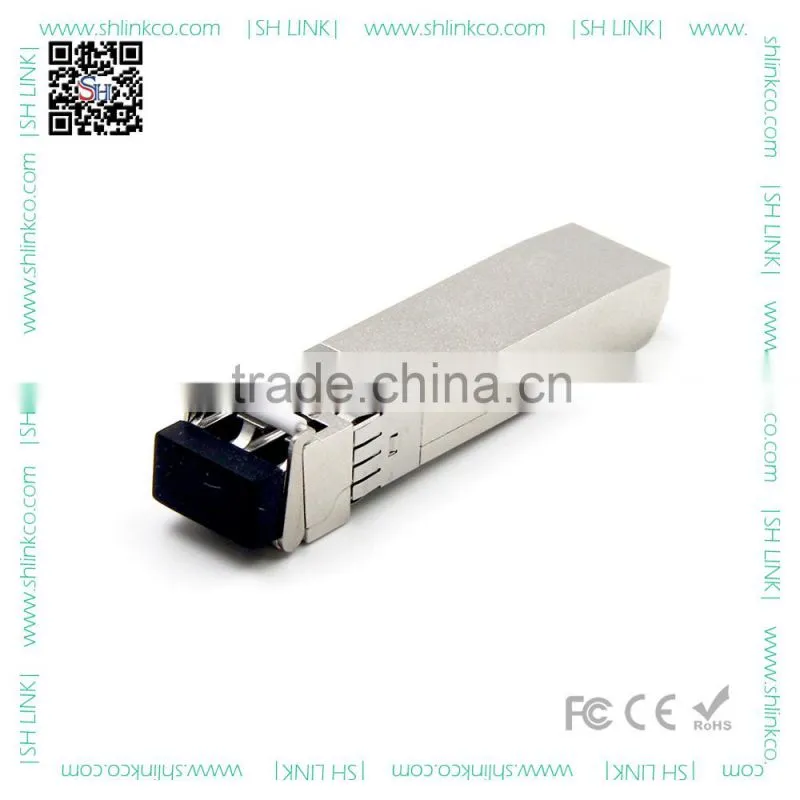

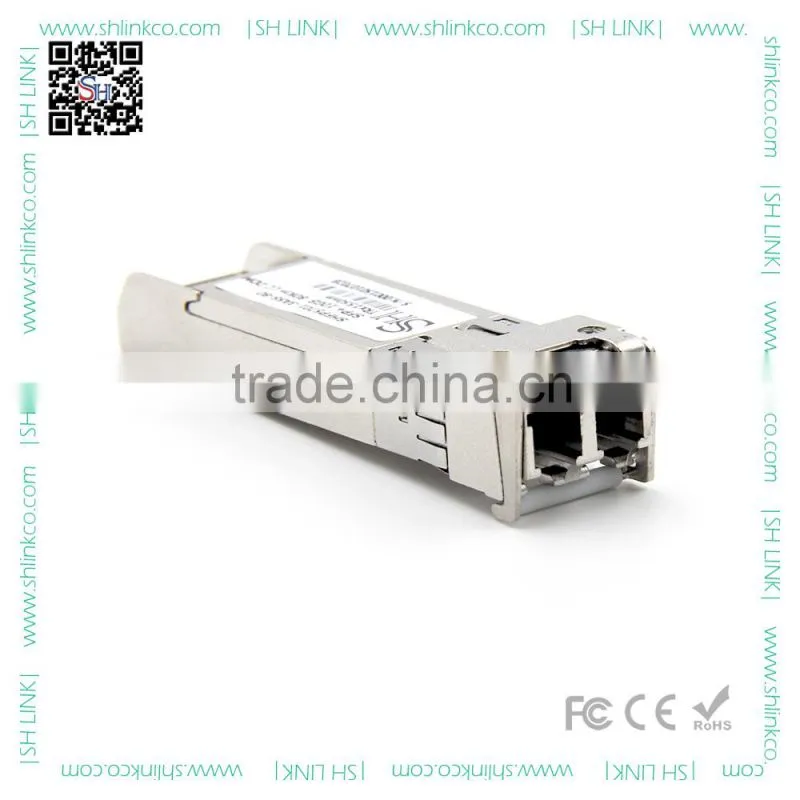

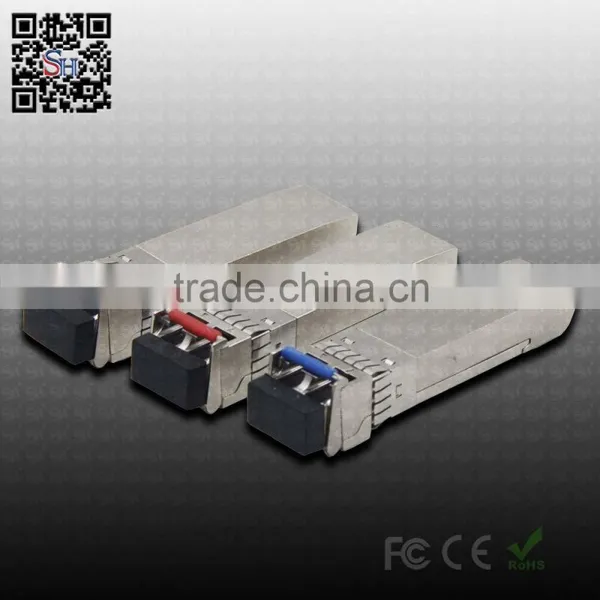

10GBase-LR 1310nm 10km SFP+ Transceiver
SHPP-10G-LR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s, inter-converting the 10Gb/s serial electrical data stream with the 10Gb/s optical signal. It complies with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It features hot plug, easy upgrading and low EMI emission. The high-performance 1310nm DFB transmitter and high-sensitivity PIN receiver provide superior performance for Ethernet applications up to link length of 10km on single mode fiber.
- Supports 9.95 to 11.3Gb/s bit rates
- Hot-Pluggable
- Duplex LC connector
- 1310nm DFB transmitter, PIN photo-detector
- SMF links up to 10km
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1.5W
- Temperature Range: 0~ 70°C
- RoHS compliant
- 10GBASE-LR/LW Ethernet
- SONET OC-192 / SDH
- 10G Fibre Channel
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
Transmitter Section: | ||||||
Center Wavelength |
λt |
1290 |
1310 |
1330 |
nm |
|
spectral width |
Δλ |
|
|
1 |
nm |
|
Average Optical Power |
Pavg |
-8.2 |
|
0.5 |
dBm |
1 |
Optical Power OMA |
Poma |
-5.2 |
|
|
dBm |
|
Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.2 |
dB |
2 |
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
Receiver Section: | ||||||
Center Wavelength |
λr |
1260 |
|
1355 |
nm |
|
Receiver Sensitivity |
Sen |
|
|
-14.5 |
dBm |
4 |
Stressed Sensitivity (OMA) |
SenST |
|
|
-10.3 |
dBm |
4 |
Los Assert |
LOSA |
-25 |
|
- |
dBm |
|
Los Dessert |
LOSD |
|
|
-15 |
dBm |
|
Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
Overload |
Sat |
0 |
|
|
dBm |
5 |
Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
shdal
Part Number |
Data Rate |
Distance |
Wavelength |
Laser |
Fiber |
DDM |
Connector |
SHPP-10G-LR |
10Gb/s |
10km |
1310nm |
DFB/PIN |
SM |
Yes |
Duplex LC |
SHPP-10G-LR/n |
10Gb/s |
10km |
1310nm |
DFB/PIN |
SM |
No |
Duplex LC |
1. How can I pay?
We accept Bank T/T, CASH, ,
2. What's the shipment means?
We can arrange the various shipment means per request.
3. What's the package of the products?
We provide two ways to pack the transceivers:
Click below, do not hesitate to contact us for any further information!
