General Mining High Voltage Switchgear Electrical Distribution Box
Rated working voltage |
10(6)kV |
maximum voltage |
12(7.2)kV |
Rated current |
Rated current |
Rate frequency |
50HZ |
Auxiliary circuit control supply voltage |
110(220)V |
AC remote control voltage |
36V |
rated short-circuit breaking current |
31.5kA |
Rated current peak tolerance(rated dynamic stable current peak) |
80KA |
Rated short circuit duration (rated thermal stability time) |
4s |
rated short-circuit closing current |
80kA |
Rated operation sequence |
open-0.3S-close open-180S-close open |
Mechanical life |
10000times |
Dimensions |
2000×800(1000)×1200(mm) |
Execution standard |
GB/T12173-2008<The mining general electrical equipment> |

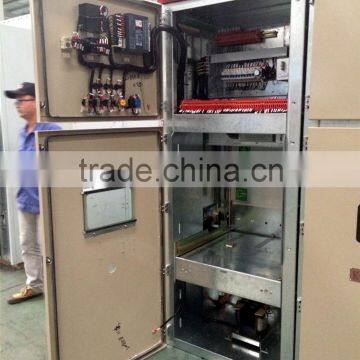

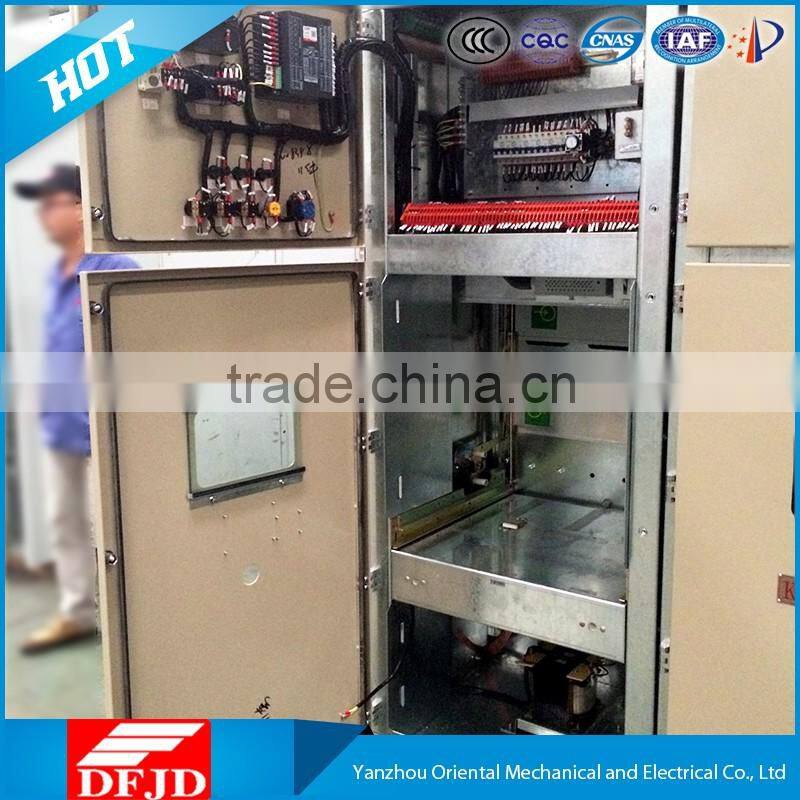

General Mining High Voltage Switchgear Electrical Distribution Box
General Mining High Voltage Switchgear Electrical Distribution Box is reasonable, compact, superior performance, reliable, simple operation, good heat dissipation, small temperature rise, and it has a strong resistance to corrosion and oxidation resistance
Due to adopting Multiple folding process, it greatly improve the fitting precision of cabinet;
Insulation coordination for the trolley and cabinet body. mechanical interlocking safety, import and export is very convenient and flexible, strong interchangeability;
Product maintenance and repair is convenient, cover an small area, easy to install, overall are light weight, high mechanical strength, good appearance than other similar equipment.
High-end equipment/ General Mining High Voltage Switchgear Electrical Distribution Box

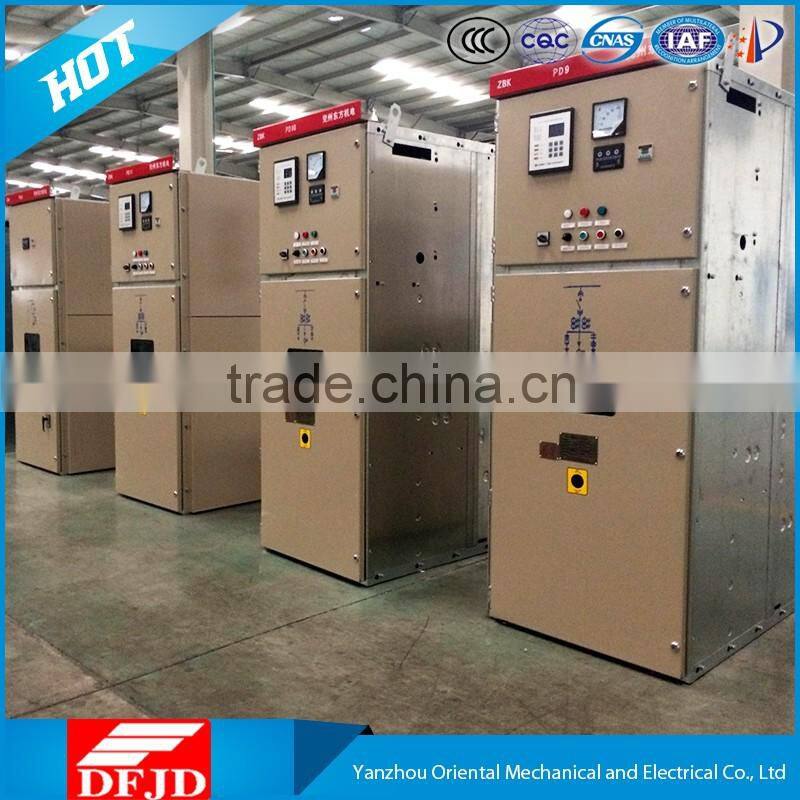

Workshop/ General Mining High Voltage Switchgear Electrical Distribution Box
We are professional manufacturer of high and low voltage switchgear, mining electrical
equipment, industrial and mining automation system, etc. Meanwhile, the company has
obtained ISO9001 quality management system certificate, ISO14001 environmental
management system certificate, OHSAS18001 occupational health and safety
management system certificate.
