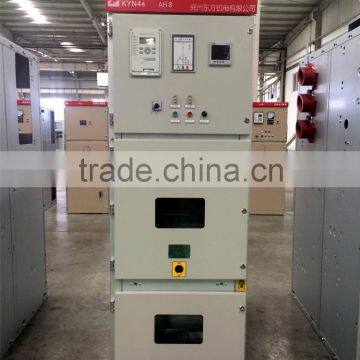

Manufacturer Directory KYN44 Metal-clad Switchgear

Name: Manufacturer Directory KYN44 Metal-clad Switchgear
Brand: Oriental Electrical
SKU: 106549111
Availability: InStock

US$ 3022.00 - 7255.00 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Oriental Electrical

Model Number:

KYN44(28)-12

Yanzhou Oriental Mechanical And Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Rizhao or According to your requirements

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Oriental Electrical

Model Number KYN44(28)-12

Manufacturer Directory KYN44 Metal-clad Switchgear

Rated voltage	12kV
Rated current	≤3.15kA
Rate frequency	50Hz
rated short-circuit breaking current	≤50 kA
Breaking times of rated short circuit breaking current	20
Rated short-circuit close current(Maximum)	≤125 kA
rated dynamic current(Maximum)	≤125 kA
4s thermal current	≤50 kA
Rated operating sequence	open-0.3S, close open-180S

Rated voltage

lightning impulse withstand voltage

(Maximum)kV

1minpower frequency withstand voltage

(virtual value) kV

To ground, phase to phase and normal fracture

isolation

fracture

To ground, phase to phase and normal fracture

isolation

fracture

Auxiliary way back to earth

Using the vacuum circuit breaker		VS1,VD4	VB2
Height B(mm)		2200	2200
Width A(mm)	Branch busbar current rating1250A,thermal current 31.5KA.	650 800	650 800
Width A(mm)	Branch busbar current rating over 1600A, thermal current 40KA.	1000	1000
depth C(mm)	Outlet and inlet line of cable	1450	1600
depth C(mm)	Outlet and inlet line of overhead	1600	1750
weight(kg)		700~1200	700~1200

Manufacturer Directory KYN44 Metal-clad Switchgear

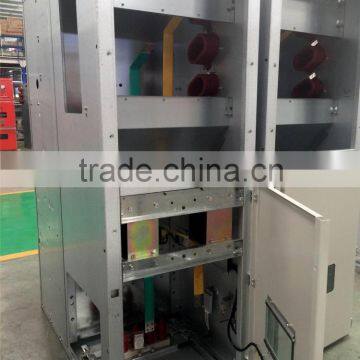

1	KYN44 Metal-clad Switchgear made of coated aluminum zinc plate after multiple bending assemblies.
2	All operations were carried out in the cupboard door closed.
3	High protection level can prevent the clutter and pest invasion.
4	Simple and effective "five prevention", locking to prevent wrong operation.
5	Manufacturer Directory KYN44 Metal-clad Switchgear can be equipped with VS1 (ZN63A) or used VD4 type vacuum circuit breaker according to user requirements.
6	replacement of the circuit breaker is simple,handcart interchangeability is good.
7	Manufacturer Directory KYN44 Metal-clad Switchgear can be installed against the wall, serviced in front, reduce area.
8	cable room space is abundant,can connect a plurality of cables.
9	Rapid grounding switch is used for ground and loop short circuit.
10	Circuit breaker rooms, relay room, cable room can be separately installed heater according to user requirements,can prevent the occurrence of condensation and corrosion
11	Circuit breaker room, cable room can be installed the lighting device according to user requirements, in order to facilitate maintenance and maintenance.
