10X20mm SMD2835 Soft LED Neon Tube Light

Dongguan Wilgex Lighting Co., Ltd.
10X20mm SMD2835 Soft LED Neon Tube Light thumbnail-1
10X20mm SMD2835 Soft LED Neon Tube Light thumbnail-2
10X20mm SMD2835 Soft LED Neon Tube Light thumbnail-3
10X20mm SMD2835 Soft LED Neon Tube Light thumbnail-4
10X20mm SMD2835 Soft LED Neon Tube Light thumbnail-5
10X20mm SMD2835 Soft LED Neon Tube Light thumbnail-6
10X20mm SMD2835 Soft LED Neon Tube Light photo-1
10X20mm SMD2835 Soft LED Neon Tube Light photo-2
10X20mm SMD2835 Soft LED Neon Tube Light photo-3
10X20mm SMD2835 Soft LED Neon Tube Light photo-4

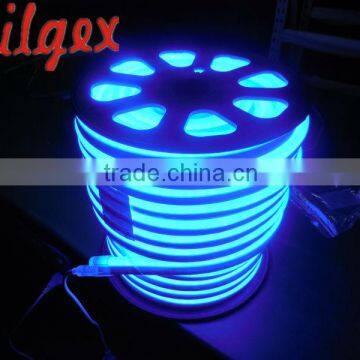

10X20mm SMD2835 Soft LED Neon Tube Light photo-5

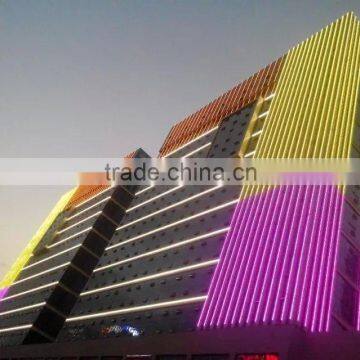

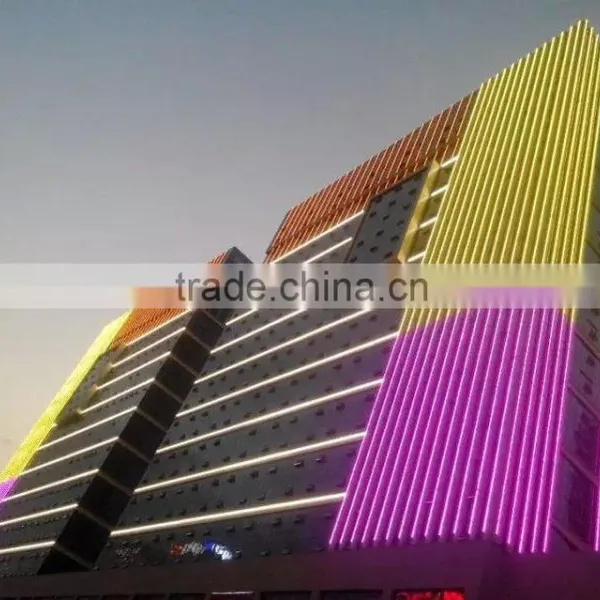

10X20mm SMD2835 Soft LED Neon Tube Light photo-6
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Input Voltage(V):
12,24,110,220
Lamp Power:
9
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Input Voltage(V) 12,24,110,220
Lamp Power 9
Lamp Luminous Flux(lm) 376
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, all single color
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP65
Certification CE, EMC, LVD, PSE
Emitting Color Warm White
Place of Origin Guangdong, China
Brand Name Wilgex
Model Number WJ-NF-SMD2835-10*20MM



10X20mm SMD2835 Soft LED Neon Tube Light



10X20mm SMD2835 Soft LED Neon Tube Light





Product Description



 Features & Benefits

 •  Milky,Crystal and Colored PVC jacket design

•  Dome/flat surface,continous and uniform illumination,no LED dot or dark spot.

•  Extremely flexible

•  100% waterproof ( IP65 and IP68 level)

•  100% breakage free

•  Low voltage or line voltage options

•  Durability,Impact Resistant

•  Weather Resistant , UV protection

•  Minimal heat output(Safe to the touch)

•  Longer life to 50,000 Hours

•  Easy to install(Cuttable on location)

•  Extremely low maintenance costs

•  80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED Neon Flex

•  Does not interfere with Video/Audio systems nearby

•  Available in all single colors,RGB colors & Digital RGB colors

•  2 years warranty



Parameter for Wilgex'sLED Neon Flex

Latest design SMD 2835  120PCS type LED neon flex--single color
Item No.WJ-NF-SMD2835-15*26mmWJ-NF-SMD2835-10*20mm
LED TypeSMD 2835SMD 2835
LED Spacing0.83cm0.83cm
LED qty/M120pcs120pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length100cm50cm8.33cm4.17cm100cm50cm8.33cm4.17cm
Watt/meter9W/m9W/m
Max.loading Length100m50m20-25m10-15m100m50m20-25m10-15m
LED colorRedGreenBluePinkWhiteYellowOrangePurpleWarm white
Lumen / m233388156158450228235158340
Size15x26mm10x20mm
Latest design SMD 2835  96PCS type LED neon flex--single color
Item No.WJ-NF-SMD2835-15*26mmWJ-NF-SMD2835-10*20mm
LED TypeSMD 2835SMD 2835
LED Spacing1.04cm1.04cm
LED qty/M96pcs96pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length100cm50cm12.5cm6.25cm100cm50cm12.5cm6.25cm
Watt/meter7W/m7W/m
Max.loading Length100m50m20-25m10-15m100m50m20-25m10-15m
LED colorRedGreenBluePinkWhiteYellowOrangePurpleWarm white
Lumen / m233388156158450228235158340
Size15x26mm10x20mm



Latest design SMD 5050 RGB type LED neon flex
Item No.WJ-NF-SMD5050-15*26mmWJ-NF-SMD5050-10*20mm
LED TypeSMD 5050SMD 5050
LED Spacing0.83cm0.83cm
LED qty/M120pcs120pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length100cm50cm8.33cm4.17cm100cm50cm8.33cm4.17cm
Watt/meter12W/m12W/m
Max.loading Length100m50m10-20m5-10m100m50m10-20m5-10m
LED colorRGBRGB
Lumen / m443443
Size15x26mm10x20mm
Latest design SPI Digital 5050 type LED neon flex
Item No.WJ-NF-SMD5050-15*26mmWJ-NF-SMD5050-10*20mm
LED TypeSMD 5050SMD 5050
LED Spacing1.67cm1.67cm
LED qty/M60pcs60pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length--10cm10cm--10cm10cm
Watt/meter12W/m12W/m
Max.loading Length--8-10m8-10m--8-10m8-10m
LED colorRGBRGB
Lumen / m443443
Size15x26mm10x20mm



10X20mm SMD2835 Soft LED Neon Tube Light

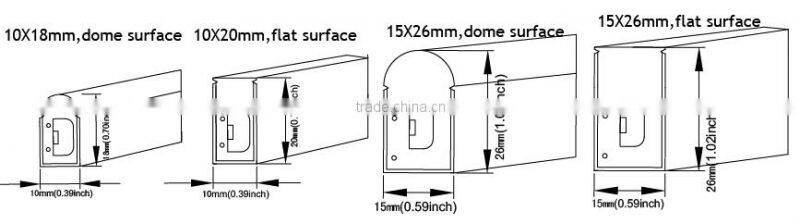

Different Size and Shape Options for Our Color Jacket LED Neon


10X20mm SMD2835 Soft LED Neon Tube Light



10X20mm SMD2835 Soft LED Neon Tube Light

Control method for RGB LED Neon Flex--4 wires 3 loops

Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V



I: Votage:DC12V/24V connection diagram

 10X20mm SMD2835 Soft LED Neon Tube Light

II: Voltage:AC110-120V,or AC 220V-230V

10X20mm SMD2835 Soft LED Neon Tube Light

Control Method for Digital RGB LED Neon Flex



I:   SPI control connection drawing:

10X20mm SMD2835 Soft LED Neon Tube Light

II: Directly DMX 512 programmes control connection drawing:

10X20mm SMD2835 Soft LED Neon Tube Light







Power connection drawing of Single Color LED Neon Flex

10X20mm SMD2835 Soft LED Neon Tube Light

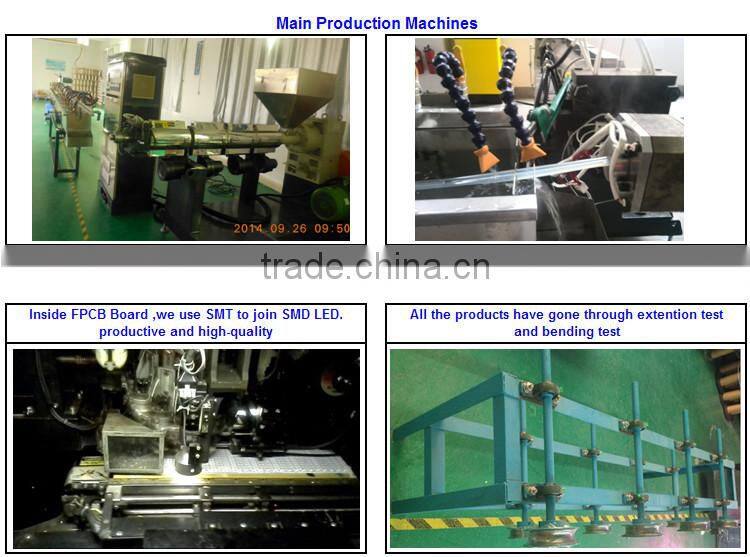

Main Machine

10X20mm SMD2835 Soft LED Neon Tube Light

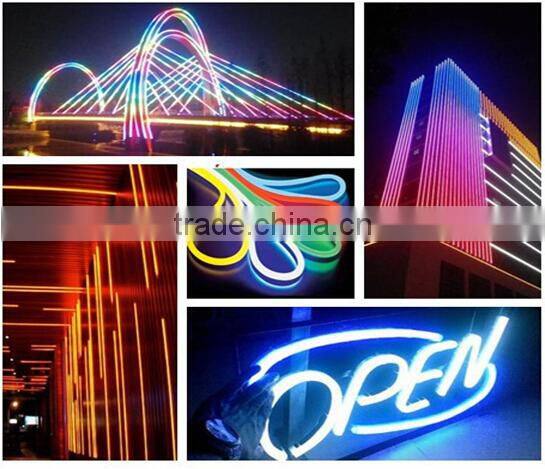

Application for LED Neon Flex



LED Neon Flex is widely used in city lighting engineering, architectural outline sketch, business travel façade decoration, billboards, taxi signing ballroom, stage, background production and a large number of places such as night scene decoration. 10X20mm SMD2835 Soft LED Neon Tube Light



Certifications:

10X20mm SMD2835 Soft LED Neon Tube Light

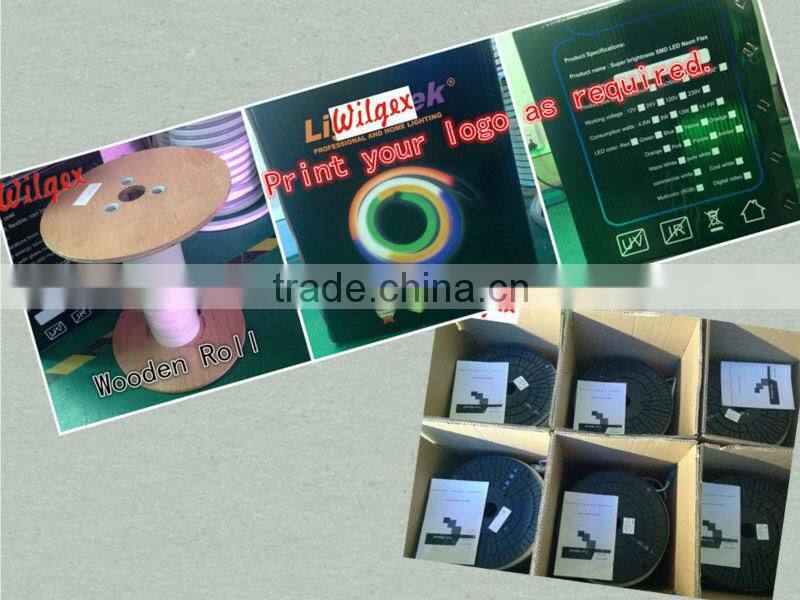

Package:

10X20mm SMD2835 Soft LED Neon Tube Light



Our Services





Our Promise: 1. Provide solutions and high quality products

                      2. Streamline the buying and paying processes

                      3. Deliver the goods to our customers all over the world with speed and precision

                      4. Protection of your sale area, ideas of design and all your private information

Our Service: 1. Provide professional person to communicate with you before the order.

                     2. Provide strict quality check for each part, each process before export.

                     3. Provide optimum system solution based on each client’s specific requirement.

                     4. Send extra accessories to help fix the lamp for free international express.

                         If accessories can’t solve the problem, we will send you the replacement lamp directly.
