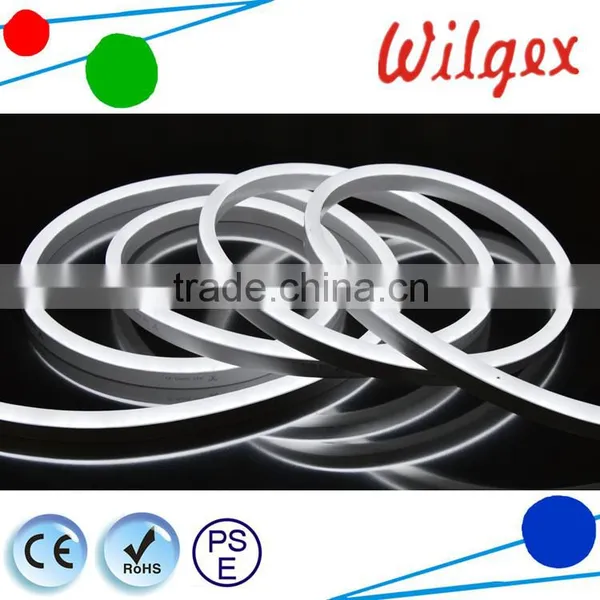

Super Bright IP65 Waterproof rgb led neon tube
Features & Benefits
• Milky,Crystal and Colored PVC jacket design
• Dome/Flat surface,continous and uniform illumination,no LED dot or dark spot.
• Extremely flexible
• 100% waterproof ( IP65 and IP68 level)
• 100% breakage free
• Low voltage or line voltage options
• Durability,Impact Resistant
• Weather Resistant , UV protection
• Minimal heat output(Safe to the touch)
• Longer life to 50,000 Hours
• Easy to install(Cuttable on location)
• Extremely low maintenance costs
• 80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED led neon tube
• Does not interfere with Video/Audio systems nearby

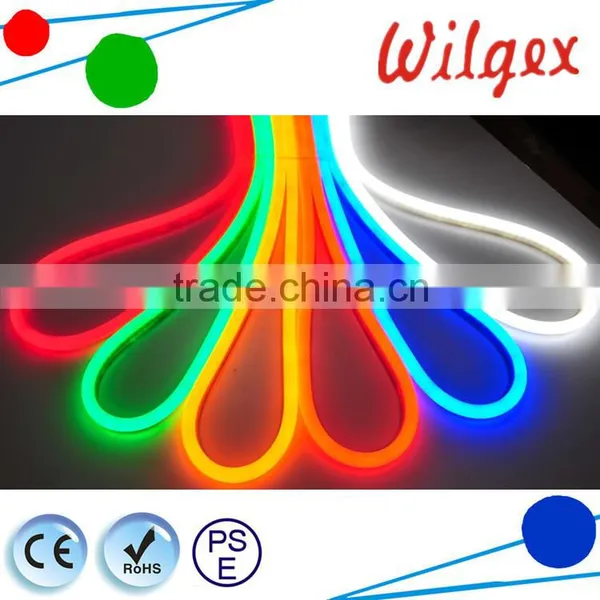

• Available in all single colors,RGB colors & Digital RGB colors
• 2 years warranty
Different Size and Shape Options for Our Color Jacket LED Neon
Parameter
| Latest design SMD 2835 120PCS type LED neon tube--single color | |||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | |||||||
| LED Type | SMD 2835 | SMD 2835 | |||||||
| LED Spacing | 0.83cm | 0.83cm | |||||||
| LED qty/M | 120pcs | 120pcs | |||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V | |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm | |
| Watt/meter | 9W/m | 9W/m | |||||||
| Max.loading Length | 100m | 50m | 20-25m | 10-15m | 100m | 50m | 20-25m | 10-15m | |
| LED color | Red | Green | Blue | Pink | White | Yellow | Orange | Purple | Warm white |
| Lumen / m | 233 | 388 | 156 | 158 | 450 | 228 | 235 | 158 | 340 |
| Size | 15x26mm | 10x20mm | |||||||
| Latest design SMD 2835 96PCS type LED neon tube--single color | |||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | |||||||
| LED Type | SMD 2835 | SMD 2835 | |||||||
| LED Spacing | 1.04cm | 1.04cm | |||||||
| LED qty/M | 96pcs | 96pcs | |||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V | |
| Cutting length | 100cm | 50cm | 12.5cm | 6.25cm | 100cm | 50cm | 12.5cm | 6.25cm | |
| Watt/meter | 7W/m | 7W/m | |||||||
| Max.loading Length | 100m | 50m | 20-25m | 10-15m | 100m | 50m | 20-25m | 10-15m | |
| LED color | Red | Green | Blue | Pink | White | Yellow | Orange | Purple | Warm white |
| Lumen / m | 233 | 388 | 156 | 158 | 450 | 228 | 235 | 158 | 340 |
| Size | 15x26mm | 10x20mm | |||||||
| Latest design SMD 5050 RGB type LED neon tube | ||||||||
| Item No. | WJ-NF-SMD5050-15*26mm | WJ-NF-SMD5050-10*20mm | ||||||
| LED Type | SMD 5050 | SMD 5050 | ||||||
| LED Spacing | 0.83cm | 0.83cm | ||||||
| LED qty/M | 120pcs | 120pcs | ||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm |
| Watt/meter | 12W/m | 12W/m | ||||||
| Max.loading Length | 100m | 50m | 10-20m | 5-10m | 100m | 50m | 10-20m | 5-10m |
| LED color | RGB | RGB | ||||||
| Lumen / m | 443 | 443 | ||||||
| Size | 15x26mm | 10x20mm | ||||||
| Latest design SPI Digital 5050 type LED neon tube | ||||||||
| Item No. | WJ-NF-SMD5050-15*26mm | WJ-NF-SMD5050-10*20mm | ||||||
| LED Type | SMD 5050 | SMD 5050 | ||||||
| LED Spacing | 1.67cm | 1.67cm | ||||||
| LED qty/M | 60pcs | 60pcs | ||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V |
| Cutting length | - | - | 10cm | 10cm | - | - | 10cm | 10cm |
| Watt/meter | 12W/m | 12W/m | ||||||
| Max.loading Length | - | - | 8-10m | 8-10m | - | - | 8-10m | 8-10m |
| LED color | RGB | RGB | ||||||
| Lumen / m | 443 | 443 | ||||||
| Size | 15x26mm | 10x20mm | ||||||
Control method for RGB LED neon tube--4 wires 3 loops
Available voltage:DC12V/24V
Votage:DC12V/24V connection diagram
Control Method for Digital RGB LED neon tube
I: SPI control connection drawing:
II: Directly DMX 512 programmes control connection drawing:
Power connection drawing of Single Color LED neon tube
Main Machine
Application for LED neon tube
LED neon tube is widely used in city lighting engineering, architectural outline sketch, business travel façade decoration, billboards, taxi signing ballroom, stage, background production and a large number of places such as night scene decoration.
Package:
Dongguan Wilgex Lighting Co., Ltd was established in year 2003. We are specialized in developing, designing and manufacturing LED decorating and lighting proodcuts for more than 12 years.
Our products assortment includes LED neon flex, LED wall washer, LED underwater / fountain / pool light, and LED undergroud light as well as garden lights.
All of our products are manufactured to the highest industry standards and utilize some of the best quality components available such as San'an, Edison and CREE LEDs, and MeanWell Power Supplies and are backed by a conservative 2 Year Warranty. All of our products are CE (EMC, LVD, EMF) and RoHS certified and can reach to IP65, IP68 waterproof grade.
