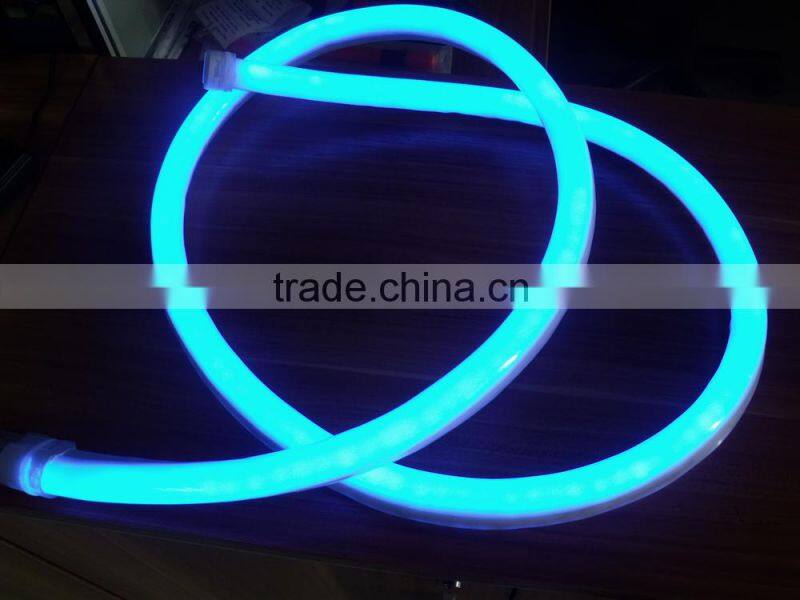

Color changing flexible SMD 24V 12V led neon tube light
Features & Benefits
- Milky, Crystal and Colored PVC jacket design
- Dome/flat surface, continous and uniform illumination, no LED dot or dark spot.
- Extremely flexible, easy to install(Cuttable on location)
- 100% waterproof ( IP65 and IP68 level)
- 100% breakage free, durability, Impact Resistant
- Low voltage or line voltage options
- Weather Resistant , UV protection
- Minimal heat output (Safe to the touch)
- Longer life to 50,000 Hours
- Extremely low maintenance costs
- 80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED neon tube light
- Does not interfere with Video/Audio systems nearby
- Available in all single colors,RGB colors & Digital RGB colors
- 2 years warranty
- Meet up various light and lighten up a dynamic modern city.
- Maximum efficiency and minimum project length to satisfy customized projects.
- Most up-to-date technique applied to make sure the brightest light, stable quality and longest life span.
- More color options with multiple changing modes to bring a strong vision impact.
Parameter
| Latest design SMD 2835 120PCS type LED neon tube light--single color | |||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | |||||||
| LED Type | SMD 2835 | SMD 2835 | |||||||
| LED Spacing | 0.83cm | 0.83cm | |||||||
| LED qty/M | 120pcs | 120pcs | |||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V | |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm | |
| Watt/meter | 9W/m | 9W/m | |||||||
| Max.loading Length | 100m | 50m | 20-25m | 10-15m | 100m | 50m | 20-25m | 10-15m | |
| LED color | Red | Green | Blue | Pink | White | Yellow | Orange | Purple | Warm white |
| Lumen / m | 233 | 388 | 156 | 158 | 450 | 228 | 235 | 158 | 340 |
| Size | 15x26mm | 10x20mm | |||||||
| Latest design SMD 2835 96PCS type LED neon tube light--single color | |||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | |||||||
| LED Type | SMD 2835 | SMD 2835 | |||||||
| LED Spacing | 1.04cm | 1.04cm | |||||||
| LED qty/M | 96pcs | 96pcs | |||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V | |
| Cutting length | 100cm | 50cm | 12.5cm | 6.25cm | 100cm | 50cm | 12.5cm | 6.25cm | |
| Watt/meter | 7W/m | 7W/m | |||||||
| Max.loading Length | 100m | 50m | 20-25m | 10-15m | 100m | 50m | 20-25m | 10-15m | |
| LED color | Red | Green | Blue | Pink | White | Yellow | Orange | Purple | Warm white |
| Lumen / m | 233 | 388 | 156 | 158 | 450 | 228 | 235 | 158 | 340 |
| Size | 15x26mm | 10x20mm | |||||||
| Latest design SMD 5050 RGB type LED neon tube light | ||||||||
| Item No. | WJ-NF-SMD5050-15*26mm | WJ-NF-SMD5050-10*20mm | ||||||
| LED Type | SMD 5050 | SMD 5050 | ||||||
| LED Spacing | 0.83cm | 0.83cm | ||||||
| LED qty/M | 120pcs | 120pcs | ||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm |
| Watt/meter | 12W/m | 12W/m | ||||||
| Max.loading Length | 100m | 50m | 10-20m | 5-10m | 100m | 50m | 10-20m | 5-10m |
| LED color | RGB | RGB | ||||||
| Lumen / m | 443 | 443 | ||||||
| Size | 15x26mm | 10x20mm | ||||||
| Latest design SPI Digital 5050 type LED neon tube light | ||||||||
| Item No. | WJ-NF-SMD5050-15*26mm | WJ-NF-SMD5050-10*20mm | ||||||
| LED Type | SMD 5050 | SMD 5050 | ||||||
| LED Spacing | 1.67cm | 1.67cm | ||||||
| LED qty/M | 60pcs | 60pcs | ||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V |
| Cutting length | - | - | 10cm | 10cm | - | - | 10cm | 10cm |
| Watt/meter | 12W/m | 12W/m | ||||||
| Max.loading Length | - | - | 8-10m | 8-10m | - | - | 8-10m | 8-10m |
| LED color | RGB | RGB | ||||||
| Lumen / m | 443 | 443 | ||||||
| Size | 15x26mm | 10x20mm | ||||||
Different Size and Shape Options
Control method for RGB LED Neon tube light--4 wires 3 loops
Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V
I: Votage:DC12V/24V connection diagram
II: Voltage:AC110-120V,or AC 220V-230V
Control Method for Digital RGB LED Neon tube light
I: SPI control connection drawing:
II: Directly DMX 512 programmes control connection drawing:
Power connection drawing of Single Color LED Neon tube light
Main Machine
Application
LED Neon tube light is widely used in city lighting engineering, architectural outline sketch, business travel façade decoration, billboards, taxi signing ballroom, stage, background production and a large number of places such as night scene decoration.
Package:
Our Promise: 1. Provide solutions and high quality products
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
Our Service: 1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client’s specific requirement.
4. Send extra accessories to help fix the lamp for free international express.
If accessories can’t solve the problem, we will send you the replacement led neon tube light directly.
Dongguan Wilgex Lighting Co., Ltd was established in year 2003. We are specialized in developing, designing and manufacturing LED decorating and lighting proodcuts for more than 12 years.
Our products assortment includes LED neon neon tube light, LED wall washer, LED underwater / fountain / pool light, and LED undergroud light as well as garden lights.
All of our products are manufactured to the highest industry standards and utilize some of the best quality components available such as San'an, Edison and CREE LEDs, and MeanWell Power Supplies and are backed by a conservative 2 Year Warranty. All of our products are CE (EMC, LVD, EMF) and RoHS certified and can reach to IP65, IP68 waterproof grade.
