Outdoor IP65 8 Segment Digital SMD LED Underground Light
Description of underground light
1. 4mm stalinite for the cover, high transparent rate, excellent light-admitting quality, anti impact force.
2. 6063 aluminum alloy sections for the housing, through anodizing or spraying plastics according to the environment background.
3. Heat-conducting silica gel pour into the inner of the lamp, good for waterproof and heat dissipation.
4. IP rating reach to IP65,pass the inspection of The National Lamp Quality Inspection Center
5. Single chip SMD3528 LED as the light source
6. Each pixel could achieve 256 color grey.
7. The installation of the lamp are rational, suitable for the effect of special architectural outline
Technical data underground light
| Product name | Outdoor IP65 8 Segment Digital SMD LED Underground Light |
| Model No. | WJ-SMD3528-S11-WW-L1000 |
| Light source | 336pcs Epistar SMD3528 |
| Color | W/WW/all single color |
| Beam angle | 120 degree |
| Cover material | 4mm frosted oil injection stalinite |
| Cover color | Frosted |
| Housing material | 6063 aluminum alloy |
| Power supply | External constant voltage driver |
| Working voltage | 24V DC |
| Control mode | DMX512 |
| Control segments | 8 Segment/M(16 segment for option) |
| Grey grade | 256X256X256 |
| Electrical security level | CLASSⅢ |
| Working temperature | -20°C~55°C |
| Weight | 1.5kgs |

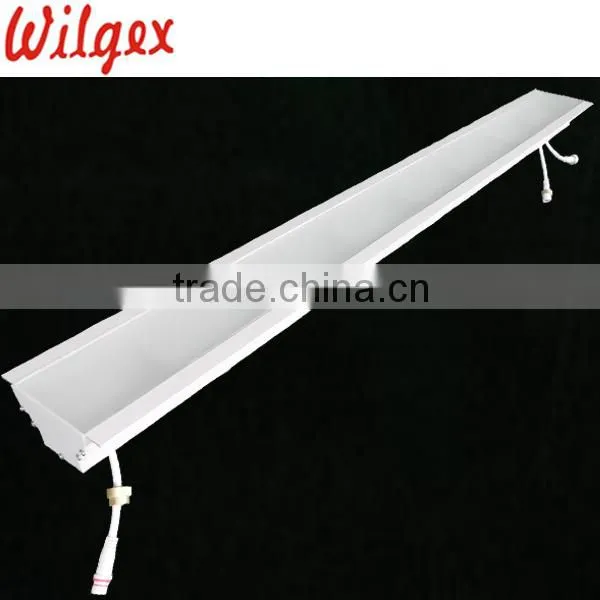

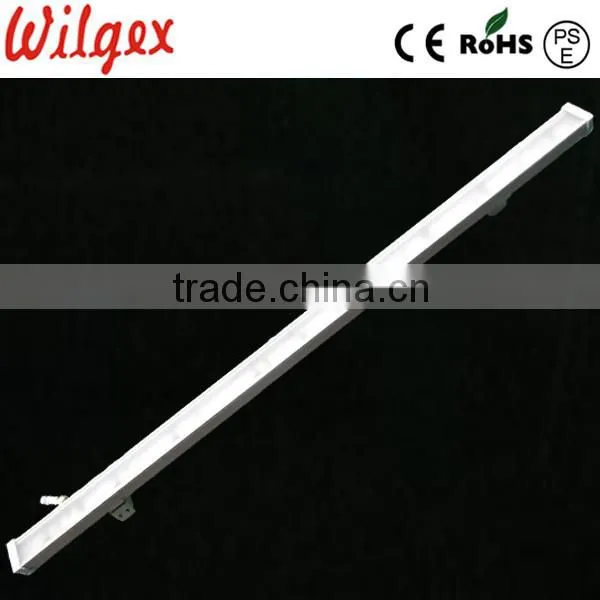

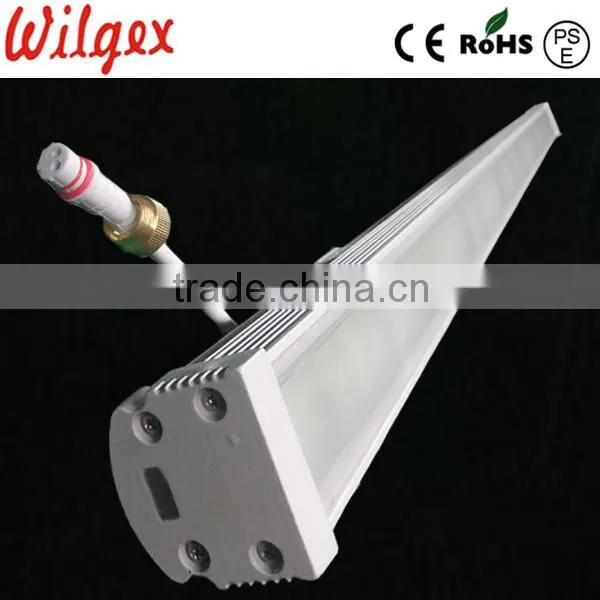

Details of underground light

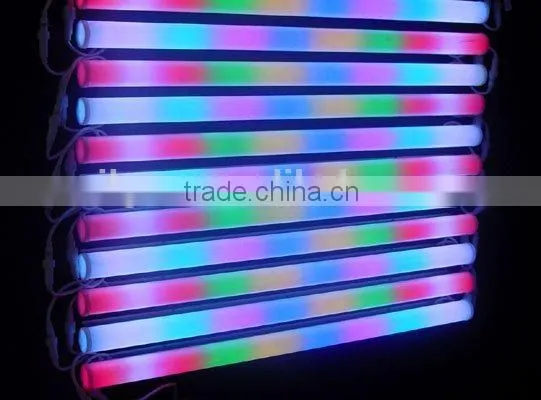

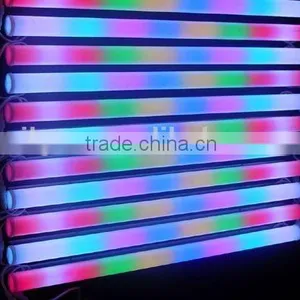

Images of underground light

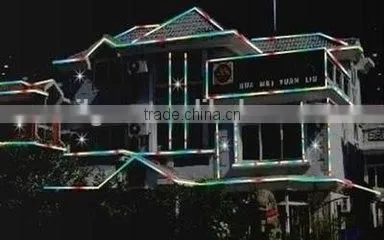

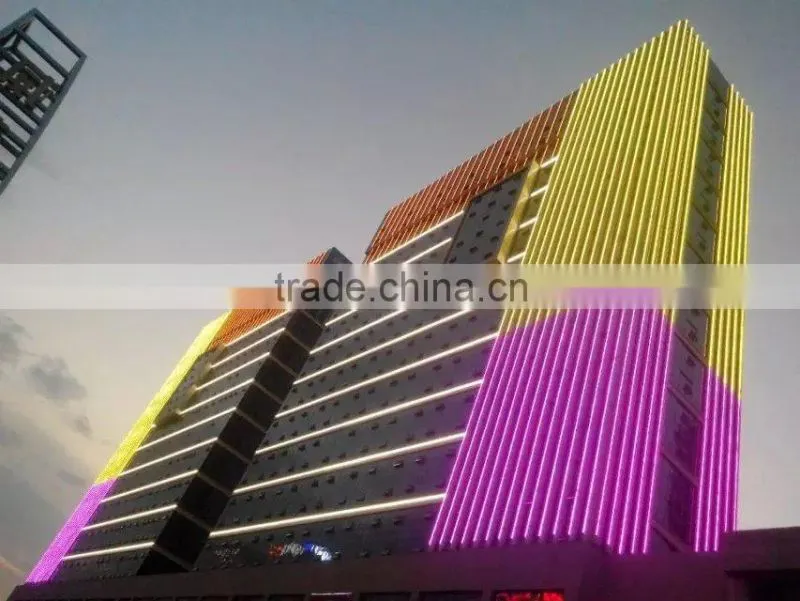

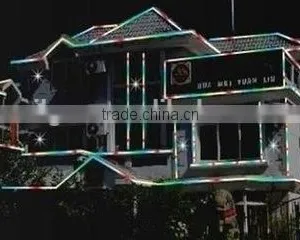

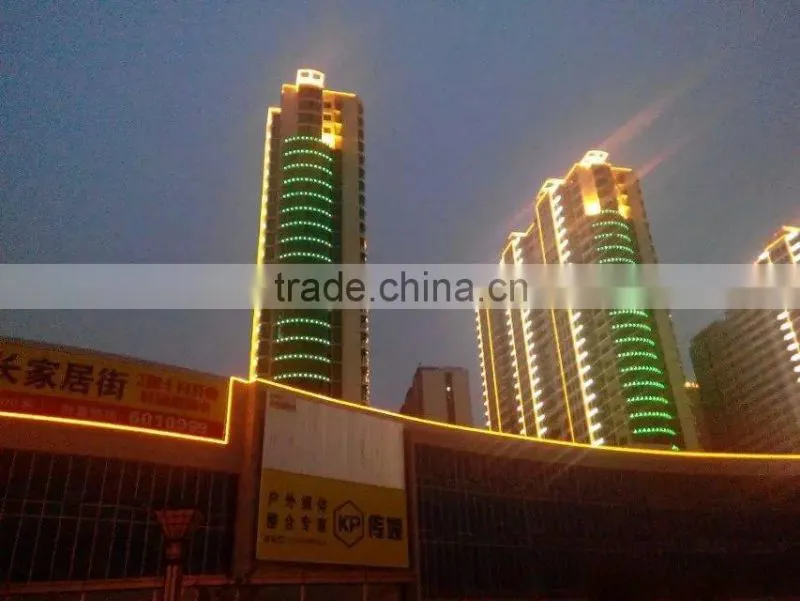

Application Pictures
FAQ of Underground light
Q: What kind of LED do you use?
S: Normally we use Taiwan Original Edison as the light source, but if you have special demands for the LED brand(Epistar, Cree etc.), we could customize.
Q: What kind of LED Wall Washers do you supply?
A: The shape of our LED Wall Washers have Square type, Linear type, Round type for your option, different color are all available.
Q: What do you use for the packing?
A: We use thick PE foam with box for the packing. We could also accept colorful packing, but you have to send us the design of the box to us.
Q: Can you help us to put our company logo into the label?
A: Yes, we could put your company logo or even your email address in the label according to your comments.
Q: What’s your shipping methods?
A: We use express(DHL, Fedex, UPS) for shipping, for large quantity, we could arrange shipment by sea or by air as you requested.
Q: How many days do you need to produce the wall washers?
A: 7 days for normal order, large quantity for 10-12 days.
Guarantee of Underground Light
1. We will arrange delivery of the goods on time.
2. Within the warranty period, we will bear all the quality problem of our products.
3. Without the warranty period, we will despatch the replacement parts to help fix the lamps, but the parts will be charged.
4. Without any problem, we will gain the feedbacks of our products to help improve better products.
5. When the goods are damaged, you should take some photos, we will send you the extra lamp as soon as possible so that it won't effect your daily sales. We bear the product cost and the freight cost. And then, we will try to find the reason and solve it, to make sure that this kind of problem won't happen again.
