IP65 12V LED Neon Flex

IP65 12V LED Neon Flex thumbnail-1
IP65 12V LED Neon Flex thumbnail-2
IP65 12V LED Neon Flex thumbnail-3
IP65 12V LED Neon Flex thumbnail-4
IP65 12V LED Neon Flex thumbnail-5
IP65 12V LED Neon Flex thumbnail-6
IP65 12V LED Neon Flex photo-1
IP65 12V LED Neon Flex photo-2
IP65 12V LED Neon Flex photo-3
IP65 12V LED Neon Flex photo-4
IP65 12V LED Neon Flex photo-5
IP65 12V LED Neon Flex photo-6
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Sanan
Input Voltage(V):
12,24,110,220
Lamp Power:
13
Contact Supplier Request Quote Chat Now
Dongguan Wilgex Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sanan
Input Voltage(V) 12,24,110,220
Lamp Power 13
Lamp Luminous Flux(lm) 1040
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, all single color
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP65
Certification CE, PSE
Emitting Color Warm White
Place of Origin Guangdong, China
Brand Name Wilgex
Model Number WJ-NF-SMD5050-15*26-RGB

IP65 12V LED Neon Flex

IP65 12V LED Neon Flex

Various lighting effects for our lastest design LED Neon Flex

  IP65 12V LED Neon Flex

Product Description



 Features & Benefits

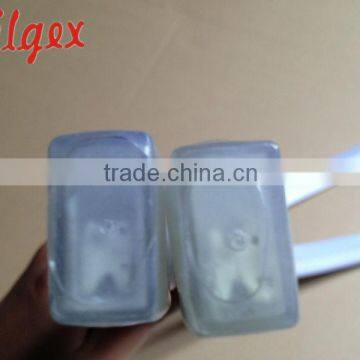

•  Milky,Crystal and Colored PVC jacket design

•  Dome/flat surface,continous and uniform illumination,no LED dot or dark spot.

•  Extremely flexible

•  100% waterproof ( IP65 and IP68 level)

•  100% breakage free

•  Low voltage or line voltage options

•  Durability,Impact Resistant

•  Weather Resistant , UV protection

•  Minimal heat output(Safe to the touch)

•  Longer life to 50,000 Hours

•  Easy to install(Cuttable on location)

•  Extremely low maintenance costs

•  80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED Neon Flex

•  Does not interfere with Video/Audio systems nearby

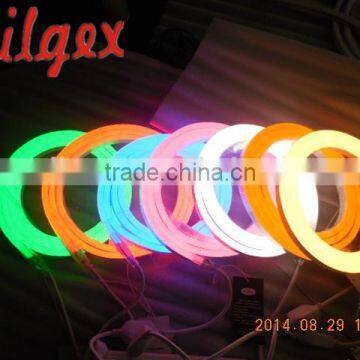

•  Available in all single colors,RGB colors & Digital RGB colors

•  2 years warranty



Parameter for Wilgex's LED Neon Flex

Latest design SMD 2835 type LED neon flex--single color
Item No. WJ-NF-SMD2835-15*26mm WJ-NF-SMD2835-10*20mm
LED Type San'an Brand SMD 2835 San'an Brand SMD 2835
LED Spacing 13.9mm 13.9mm
LED qty/M 72pcs 72pcs
Input voltage 230Vac 110Vac 24Vdc 12Vdc 230Vac 110Vac 24Vdc 12Vdc
Cutting length 100cm 50cm 8.33cm 4.17cm 100cm 50cm 8.33cm 4.17cm
Watt/meter 9W/m 9W/m 9W/m 9W/m
Max.loading Length 100m 50m 15~20m 8~10m 100m 50m 15~20m 8~10m
LED color Red, Green, Blue, Yellow, Orange, Purple, Pink, White, Warm white
Size 15x26mm 10x20mm

Latest design SMD 2835 type LED neon flex--single color
Item No. WJ-NF-SMD2835-15*26mm WJ-NF-SMD2835-10*20mm
LED Type San'an Brand SMD 2835 San'an Brand SMD 2835
LED Spacing 10.4mm 10.4mm
LED qty/M 96pcs 96pcs
Input voltage 220Vac 110Vac 24Vdc 12Vdc 220Vac 110Vac 24Vdc 12Vdc
Cutting length 100cm 50cm 12.5cm 6.25cm 100cm 50cm 12.5cm 6.25cm
Watt/meter 9W/m 9W/m 9W/m 9W/m
Max.loading Length 100m 50m 15~20m 8~10m 100m 50m 15~20m 8~10m
LED color Red, Green, Blue, Yellow, Orange, Purple, Pink, White, Warm white
Size 15x26mm 10x20mm

Latest technology SMD5050 type LED Neon Flex -- RGB Color
Item No. WJ-NF-SMD-RGB-15*26mm WJ-NF-SMD-RGB-10*20mm
LED Type San'an Brand SMD5050 San'an Brand SMD5050
LED Spacing 13.9mm 13.9mm
LED qty/M 72pcs 72pcs
Input voltage 220Vac 110Vac 24Vdc 12Vdc 220Vac 110Vac 24Vdc 12Vdc
Cutting length 100cm 50cm 8.33cm 4.17cm 100cm 50cm 8.33cm 4.17cm
Watt/meter 13W/m 13W/m 13W/m 13W/m
LED color Seven colors changing, fading
Max.loading Length 100m 50m 15~20m 8~10m 100m 50m 15~20m 8~10m
Size 15x26mm 10x20mm



Unique design Digital RGB Magic color SMD5050 LED Neon Flex-SPI control
Item No. WJ-NF-SMD-RGB-15*26mm-SPI
LED Type San'an Brand SMD5050
LED Spacing 15.6mm 16.7mm
LED qty/M 64pcs 60pcs
Pixel 4 LEDS/Pixel, 16 Pixels/M  6 LEDS/Pixel, 10 Pixels/M
LED Color Magic color changing (DMX DIY available )
Input voltage 12V DC 24V DC
Cutting length 6.25cm 10cm
Watt/meter 13W/m 13W/m
Max. Loading Length 8~10m 10~15m
LM/M
Brightness		 12.5%: 56.8LM,  25%: 100.8LM, 37.5%: 143.2LM,
50%: 187.80LM, 62.5%: 231.6LM, 75%:276.5LM, 87.5%:320.3LM, 100%: 368.2LM
Size 15x26mm



Latest design SMD2835 type 360 Degree D25mm Round LED Neon Flex--single color
Item No. WJ-NF-SMD2835-D25-72x2 WJ-NF-SMD2835-D25-96x2
LED Type San'an Brand SMD 2835 San'an Brand SMD2835
LED Spacing 13.9mm 10.4mm
LED qty/M 144 pcs 192 pcs
Input voltage 220V AC 110V AC 24V DC 12V DC 220V AC 110V AC 24VDC 12V DC
Cutting length 100cm 50cm 8.33cm 4.17cm 100cm 50cm 12.5cm 6.25cm
Watt/meter 13W/m 13W/m
LED color Red, Green, Blue, Yellow, Orange, Purple, Pink   White, Warm white
Max.loading Length 100m 50m 10~20m 5~8m 100m 50m 12~15mm 6-8m
Size Dia 25mm Dia 25mm

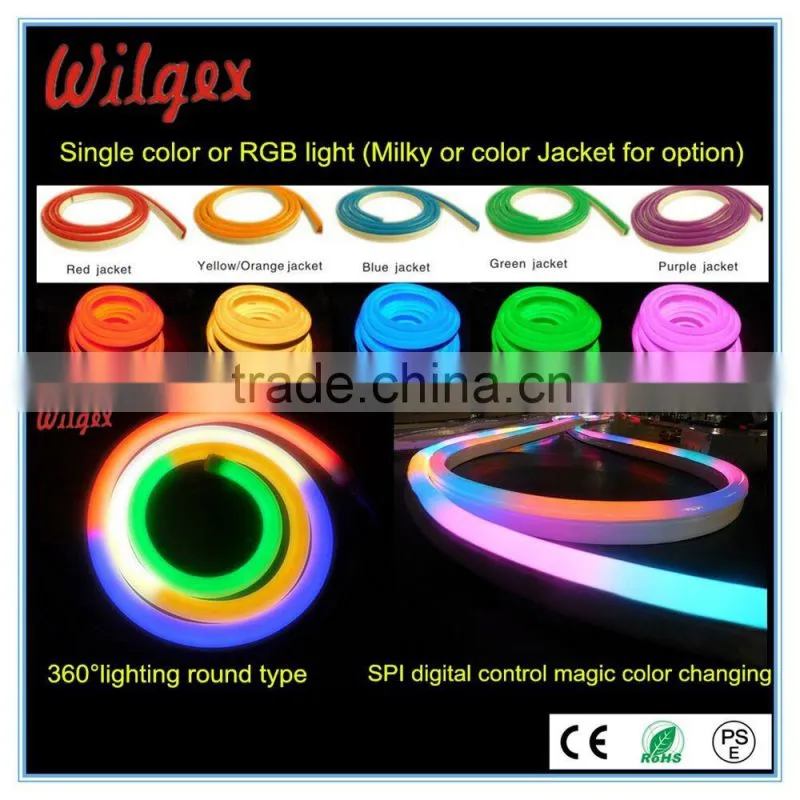

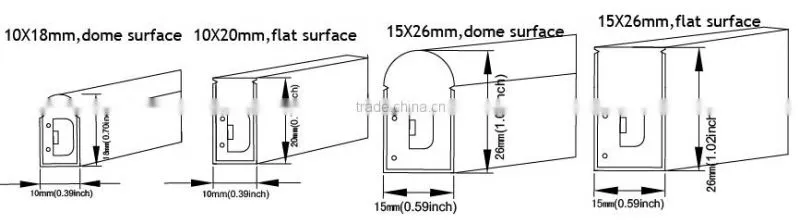

Different Size and Shape Options for Our LED Neon Flex Color JacketIP65 12V LED Neon Flex

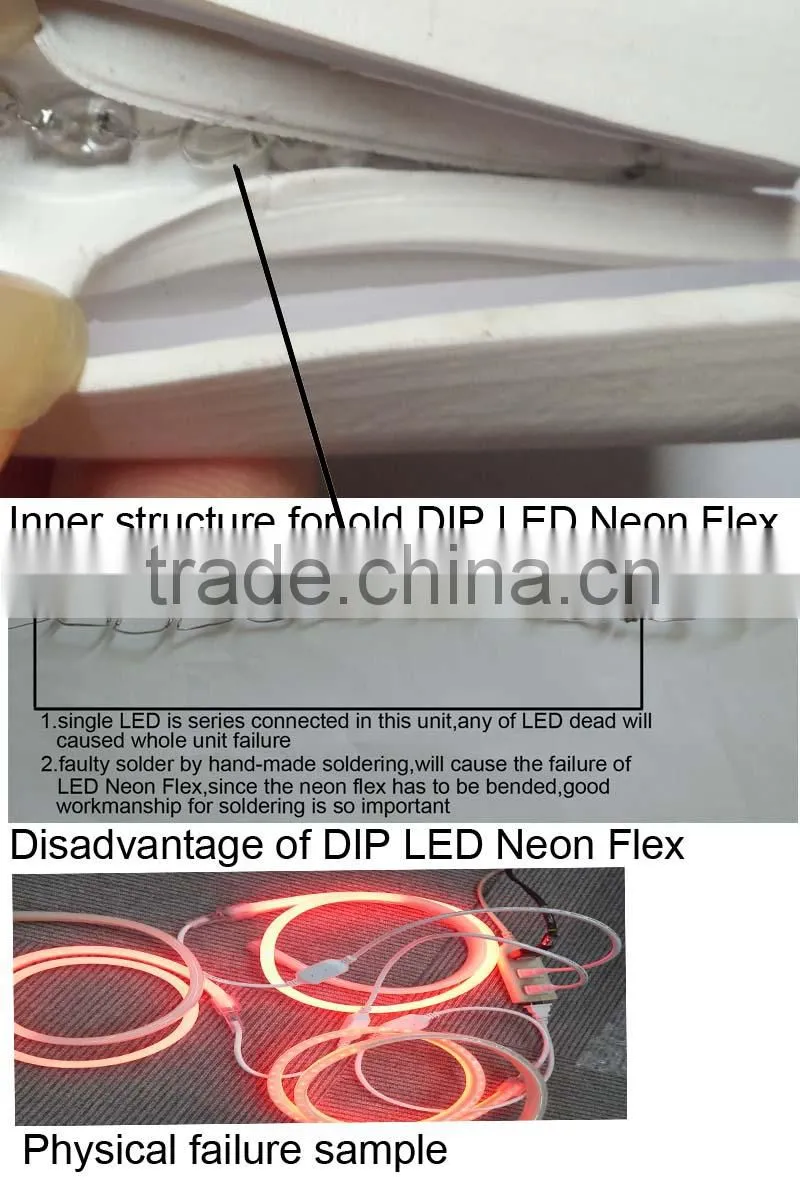

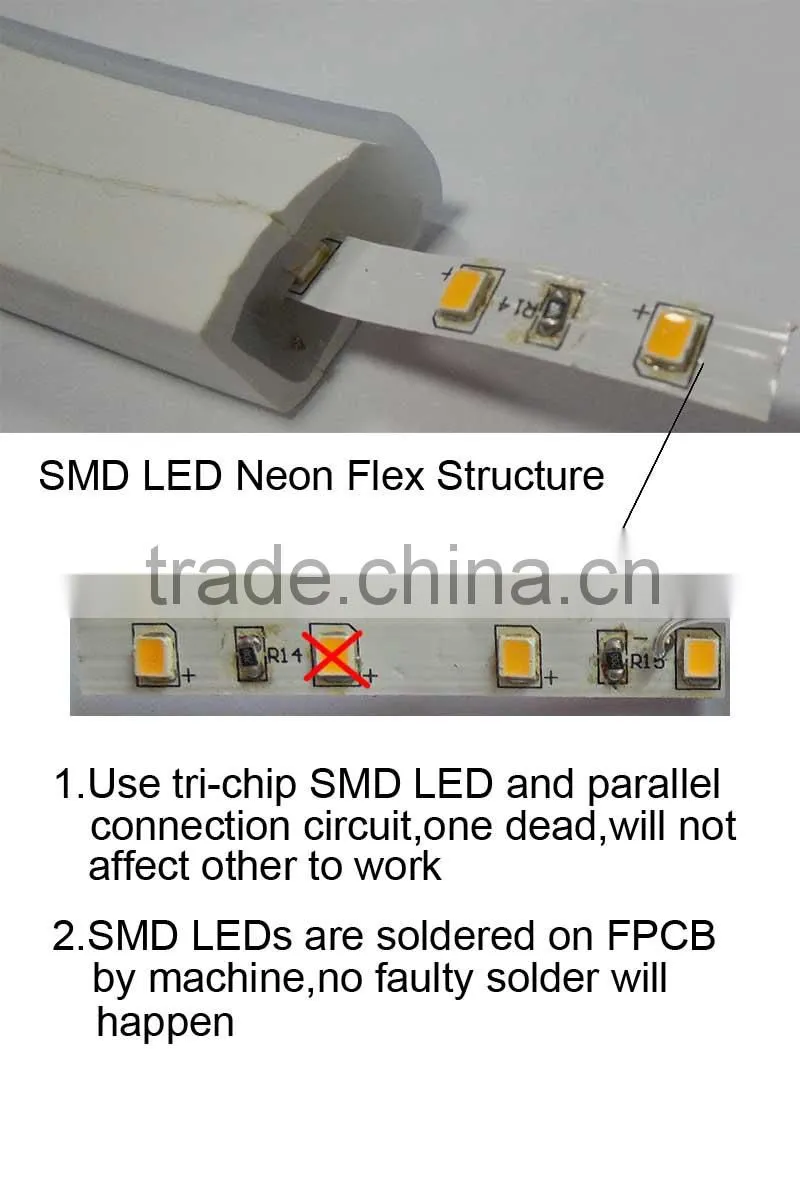

Comparison of Old DIP Flex Neon LED with New SMD Flex Neon LED



DIP LED Neon Flex SMD LED Neon Flex
IP65 12V LED Neon Flex IP65 12V LED Neon Flex
Connection



Control method for RGB LED Neon Flex--4 wires 3 loops

Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V



I: Votage:DC12V/24V connection diagram

 IP65 12V LED Neon Flex

II: Voltage:AC110-120V,or AC 220V-230V

IP65 12V LED Neon Flex

Control Method for Digital RGB LED Neon Flex

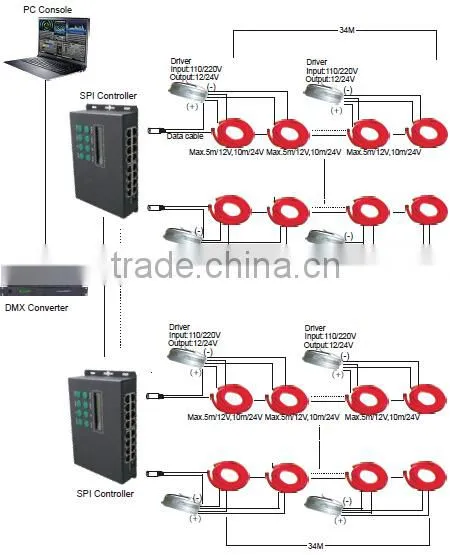

I:   SPI control connection drawing:

IP65 12V LED Neon Flex

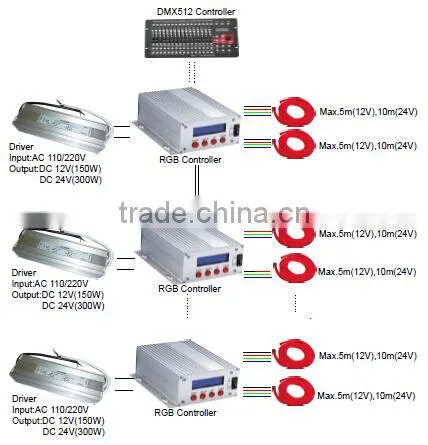

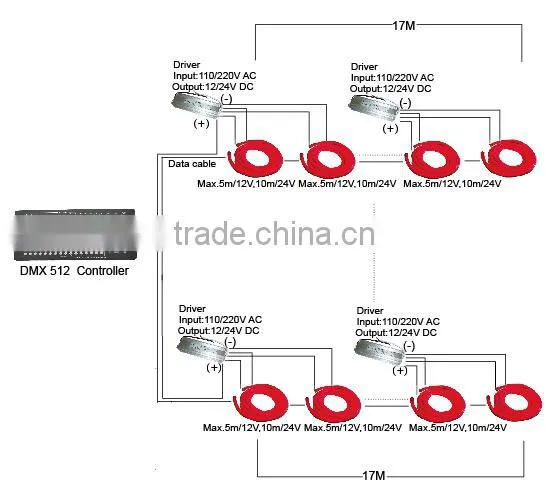

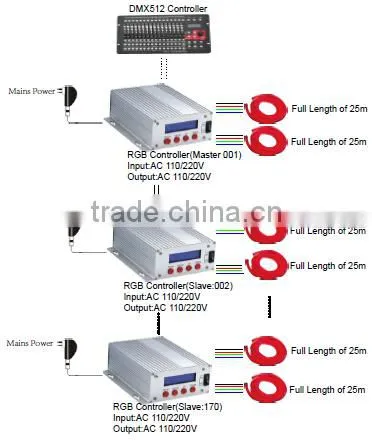

II: Directly DMX 512 programmes control connection drawing:

IP65 12V LED Neon Flex







Power connection drawing of Single Color LED Neon Flex

IP65 12V LED Neon Flex

Application

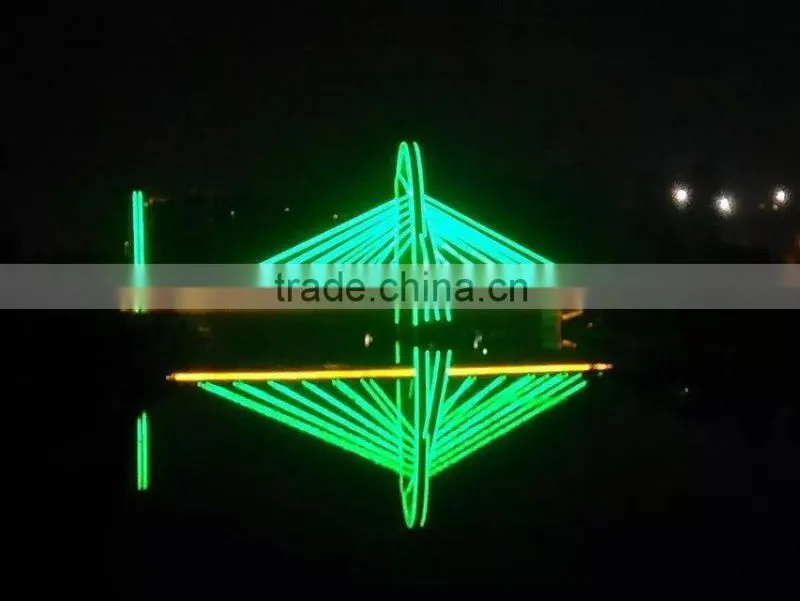

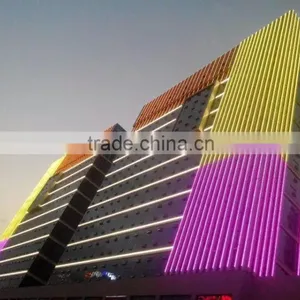

Application for LED Neon Tube Flexible

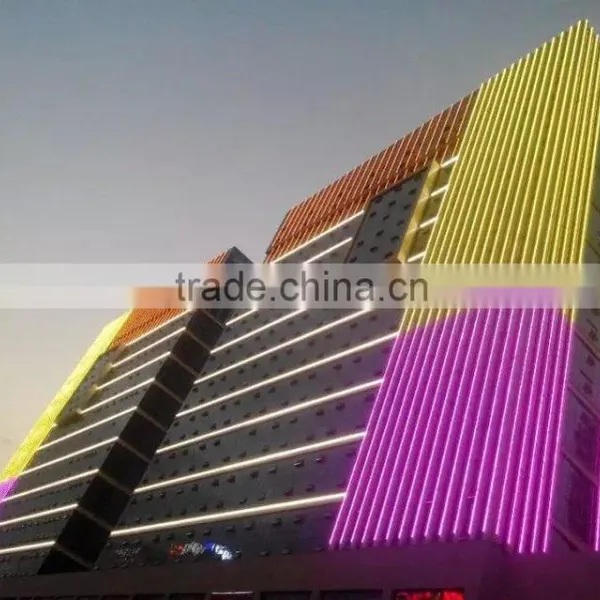

Latest design DMX digital SMD LED Neon Flex is widely used in city lighting engineering,architectural outline sketch,business travel façade decoration,billboards,taxi signing ballroom,stage,background production and a large number of places such as night scene decoration.



IP65 12V LED Neon Flex





 Fast link for other product from our waterproof Led Neon Flex





LED Linear Wall Washer  LED Round Wall Washer  LED Square Wall Washer   LED Neon Flex  LED Unterwater Light  LED Garden Lamp LED Stage Light



Language



English  Spanish  Russian  Korean   French  Italian  Portuguese  Japanese  German

Certificates

IP65 12V LED Neon Flex

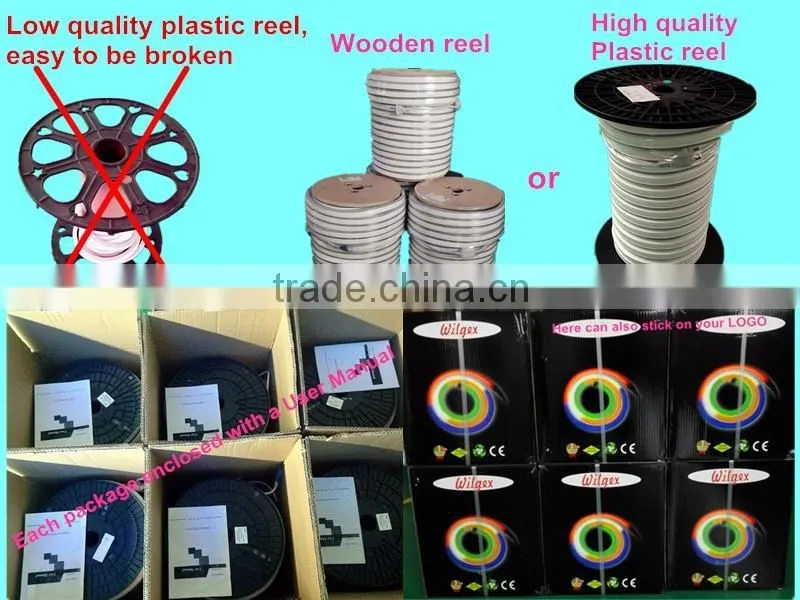

Packaging & Shipping

We do inspection after manufacuture as well as before packing


IP65 12V LED Neon Flex







Company Information

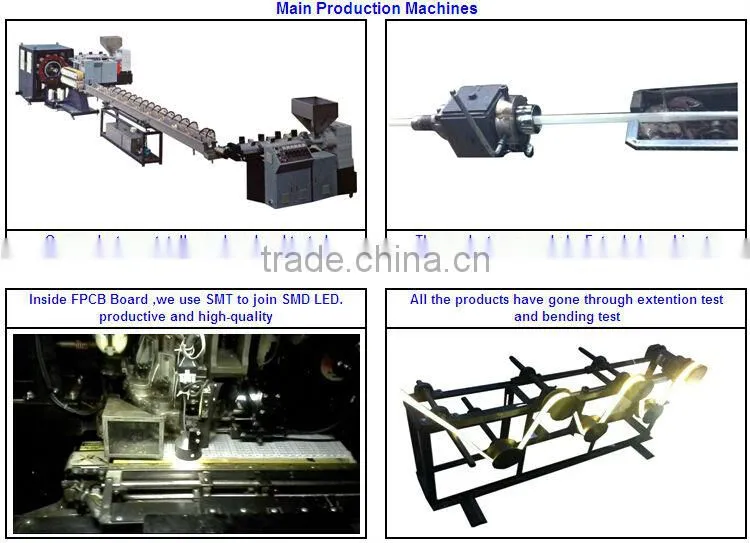

Main Machine

IP65 12V LED Neon Flex



 Exhibitions

IP65 12V LED Neon Flex



Our Services

Our Promise

1. Provide solutions and high quality products

2. Streamline the buying and paying processes

3. Deliver the goods to our customers all over the world with speed and precision

4. Protection of your sale area, ideas of design and all your private information



Our Service

1. Provide professional person to communicate with you before the order.

3. Provide optimum system solution based on each client’s specific requirement.

4. Send extra accessories to help fix the lamp for free international express.

If accessories can’t solve the problem, we will send you the replacement lamp directly.





Why Choose Us?

Why Choose Us?

Our firm brings a team of successful lighting manufactures and sales experts in the field of LED lighting production. We have over 12 years of professional experience in this field.Through the complete and rich information, you will easily find satisfactory services to meet your market demands.



We have a 2,000 square-neter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.



Our raw material (LED) comes from Cree,Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our major business partners spread over the United States, Canada, Europe and the Middle East.



Our products show extremely long life span and stability in the function. We guarantee the lifespan is over 50,000 hours.



We can deliver samples to you within 3 days, and deliver your ordered products within 7 to 15 days.
