IP65 Waterproof Mini LED Neon

FOB Price

Negotiable / Meter

100 Meters(Min.Order)

Supply Ability 500000 Meter / Meters per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epistar	Input Voltage(V)	12,24,110,220
Lamp Power	13	Lamp Luminous Flux(lm)	376
Lamp Luminous Efficiency(lm/w)	80	Color Temperature(CCT)	Other, all single color
Working Temperature(℃)	-20, 60	Working Lifetime(Hour)	50000
Lamp Body Material	PVC	IP Rating	IP65
Certification	CE, EMC, LVD, PSE	Emitting Color	Warm White
Place of Origin	Guangdong, China	Brand Name	Wilgex
Model Number	WJ-NF-SMD2835-15*26-Digital

Product Description

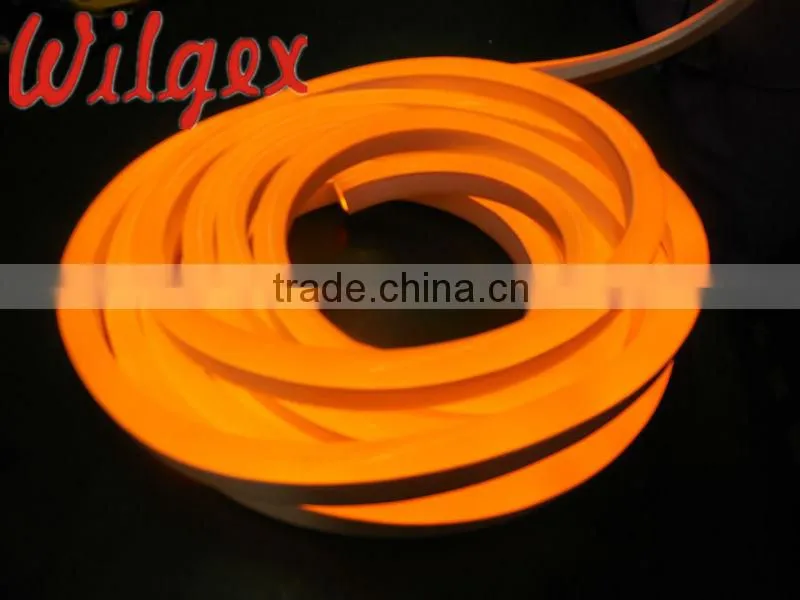

IP65 Waterproof Mini LED Neon

Product Description

Features & Benefits

• Milky,Crystal and Colored PVC jacket design

• Dome/flat surface,continous and uniform illumination,no LED dot or dark spot.

• Extremely flexible

• 100% waterproof ( IP65 and IP68 level)

• 100% breakage free

• Low voltage or line voltage options

• Durability,Impact Resistant

• Weather Resistant , UV protection

• Minimal heat output(Safe to the touch)

• Longer life to 50,000 Hours

• Easy to install(Cuttable on location)

• Extremely low maintenance costs

• 80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED Neon Flex

• Does not interfere with Video/Audio systems nearby

• Available in all single colors,RGB colors & Digital RGB colors

• 2 years warranty

Parameter for Wilgex's LED Neon Flex

Latest design SMD 2835 120PCS type LED neon flex--single color
Item No.	WJ-NF-SMD2835-15*26mm				WJ-NF-SMD2835-10*20mm
LED Type	SMD 2835				SMD 2835
LED Spacing	0.83cm				0.83cm
LED qty/M	120pcs				120pcs
Input voltage	220V	110V	24V	12V	220V	110V	24V	12V
Cutting length	100cm	50cm	8.33cm	4.17cm	100cm	50cm	8.33cm	4.17cm
Watt/meter	9W/m				9W/m
Max.loading Length	100m	50m	20-25m	10-15m	100m	50m	20-25m	10-15m
LED color	Red	Green	Blue	Pink	White	Yellow	Orange	Purple	Warm white
Lumen / m	233	388	156	158	450	228	235	158	340
Size	15x26mm				10x20mm
Latest design SMD 2835 96PCS type LED neon flex--single color
Item No.	WJ-NF-SMD2835-15*26mm				WJ-NF-SMD2835-10*20mm
LED Type	SMD 2835				SMD 2835
LED Spacing	1.04cm				1.04cm
LED qty/M	96pcs				96pcs
Input voltage	220V	110V	24V	12V	220V	110V	24V	12V
Cutting length	100cm	50cm	12.5cm	6.25cm	100cm	50cm	12.5cm	6.25cm
Watt/meter	7W/m				7W/m
Max.loading Length	100m	50m	20-25m	10-15m	100m	50m	20-25m	10-15m
LED color	Red	Green	Blue	Pink	White	Yellow	Orange	Purple	Warm white
Lumen / m	233	388	156	158	450	228	235	158	340
Size	15x26mm				10x20mm

Latest design SMD 5050 RGB type LED neon flex
Item No.	WJ-NF-SMD5050-15*26mm				WJ-NF-SMD5050-10*20mm
LED Type	SMD 5050				SMD 5050
LED Spacing	0.83cm				0.83cm
LED qty/M	120pcs				120pcs
Input voltage	220V	110V	24V	12V	220V	110V	24V	12V
Cutting length	100cm	50cm	8.33cm	4.17cm	100cm	50cm	8.33cm	4.17cm
Watt/meter	12W/m				12W/m
Max.loading Length	100m	50m	10-20m	5-10m	100m	50m	10-20m	5-10m
LED color	RGB				RGB
Lumen / m	443				443
Size	15x26mm				10x20mm
Latest design SPI Digital 5050 type LED neon flex
Item No.	WJ-NF-SMD5050-15*26mm				WJ-NF-SMD5050-10*20mm
LED Type	SMD 5050				SMD 5050
LED Spacing	1.67cm				1.67cm
LED qty/M	60pcs				60pcs
Input voltage	220V	110V	24V	12V	220V	110V	24V	12V
Cutting length	-	-	10cm	10cm	-	-	10cm	10cm
Watt/meter	12W/m				12W/m
Max.loading Length	-	-	8-10m	8-10m	-	-	8-10m	8-10m
LED color	RGB				RGB
Lumen / m	443				443
Size	15x26mm				10x20mm

Different Size and Shape Options for Our Color Jacket LED Neon

Control method for RGB LED Neon Flex--4 wires 3 loops

Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V

I: Votage:DC12V/24V connection diagram

II: Voltage:AC110-120V,or AC 220V-230V

Control Method for Digital RGB LED Neon Flex

I: SPI control connection drawing:

II: Directly DMX 512 programmes control connection drawing:

Power connection drawing of Single Color LED Neon Flex

Main Machine

Application for LED Neon Flex

LED Neon Flex is widely used in city lighting engineering, architectural outline sketch, business travel façade decoration, billboards, taxi signing ballroom, stage, background production and a large number of places such as night scene decoration.

Certifications:

Package:

Our Services

Our Promise: 1. Provide solutions and high quality products

2. Streamline the buying and paying processes

3. Deliver the goods to our customers all over the world with speed and precision

4. Protection of your sale area, ideas of design and all your private information

Our Service: 1. Provide professional person to communicate with you before the order.

2. Provide strict quality check for each part, each process before export.

3. Provide optimum system solution based on each client’s specific requirement.

4. Send extra accessories to help fix the lamp for free international express.

If accessories can’t solve the problem, we will send you the replacement lamp directly.
