Single mode dual fiber SC connector unmanaged industrial ethernet switch

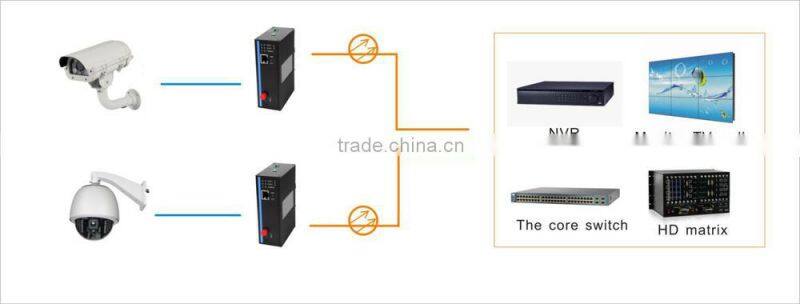

SH-G101 series is an industrial level smart fast Ethernet PoE media converter. It provides 1-CH 10/100Base-Tx, 1-CH 100Base-Fx, fulfilling the conversion between electrical and fiber optical signals. It complies with IEEE802.3af/at PoE, enabling to provide power to the PD devices, e.g. telephone, WIFI AP, access, IP camera, greatly saving the cabling cost. It is optional for web management, providing the real-time performance and status of the device, ensuring the reliable performance, greatly reducing the maintenance cost.
> Provide 1-CH 10/100Base-Tx
> Provide 1-CH 100Base-Fx
> Provide 1* RS232 serial port
> Support Ethernet port fault diagnosis and self-recovery
> Support DIN rail installation
> Lightning protection chip, to defense 2000V lightning stroke, and avoid the electrostatic induction
> Smart PoE, intelligently monitoring the PoE status (Optional)
> NMS GUI management, Ethernet port disable/enable and reset (optional)
> IP40 protection
Standards |
|
Power supply |
IEEE 802.3af/at Power over Ethernet |
|
Connector: terminal block |
IEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-TX |
|
Voltage input: 48VDC |
IEEE 802.3x Flow Control |
|
GUI management (optional) |
PoE (optional) |
|
Based on WEB |
0~30W (IEEE802.3af/at) |
|
Independent IP, ID bound management |
End-span [1/2(+), 3/6(-)) |
|
Wavelength, power, attenuation, temperature |
100m over Cat5 UTP cable |
|
Real-time flow monitoring at Ethernet port |
Switching |
|
Ethernet port disable/enable and rest |
Delay: 4 μs (100Mbps) |
|
Ethernet port fault diagnosis and self-recovery |
Backplane Bandwidth: 1.6Gbps |
|
Mechanical |
MAC address table: 1k |
|
Dimension: 103 (W) ×78.5 (D) x33 (H) mm |
Priority queue: 4 |
|
Weight: 400g |
Package buffer: 3Mbps |
|
Ingress Protection: IP40 |
Wavelength |
|
Installation: DIN rail |
Single mode: 1310nm/1550nm |
|
Environment |
Multi mode: 850nm/1310nm |
|
Operating temperature: -40℃~+80℃ |
Connector |
|
Storage temperature: -40℃~+85℃ |
Electrical: 1*RJ45 |
|
Relative humidity: 5%~95%(no-condensing) |
Fiber : FC, LC/SC/ST optional |
|
EMC |
COM port: RS-232 |
|
CE Class B/FCC Part 15,Class B/VCCI Class B/C-Tick |
Part Number |
Description |
SH-G101M-02 |
10/100Base-T to 100Base-F Industrial Optical Media Converter 850/1310nm, Multi-mode, SC, 2km, External power adaptor |
SH-G101S-xx |
10/100Base-T to 100Base-F Industrial Optical Media Converter xx: 20/40/60 (km) |
SH-G101S-xx |
10/100Base-T to 100Base-F Industrial Optical Media Converter 1550nm, Single mode, SC, External power adaptor xx: 80/100/120 (km) |
SH-GS101-xx |
10/100Base-T to 100Base-F Industrial Optical Media Converter 1310/1550nm, WDM, SC, External power adaptor xx: 20/40/60/80/100 (km)
|
Delivery time: 1-3 days for samples; 5-10 days for bulk orders.
Logistics mode chosen according to customers.
Bank T/T, CASH, ,
Workshop Show
FAQ:
1. What's your lead time?
1-3 days for samples; 5-7 days for bulk order.
2. Do you receive OEM/ODM order?
Yes, OEM and ODM are acceptable. Customized products are supported.
3. Do you have MOQ?
SH moq is 1 piece.
4. Certifications from you?
5. What's your price and quality?
Welcome inquiry, cost-effective products are ready for you! Send us email below!
