Fiber optical accessories field assembly connector SC/APC SC/UPC fiber fast connector
- 50000 Pair / Pairs per Month
- Shenzhen
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SH | Model Number: | Fiber Optic Fast Connector |
Product Description

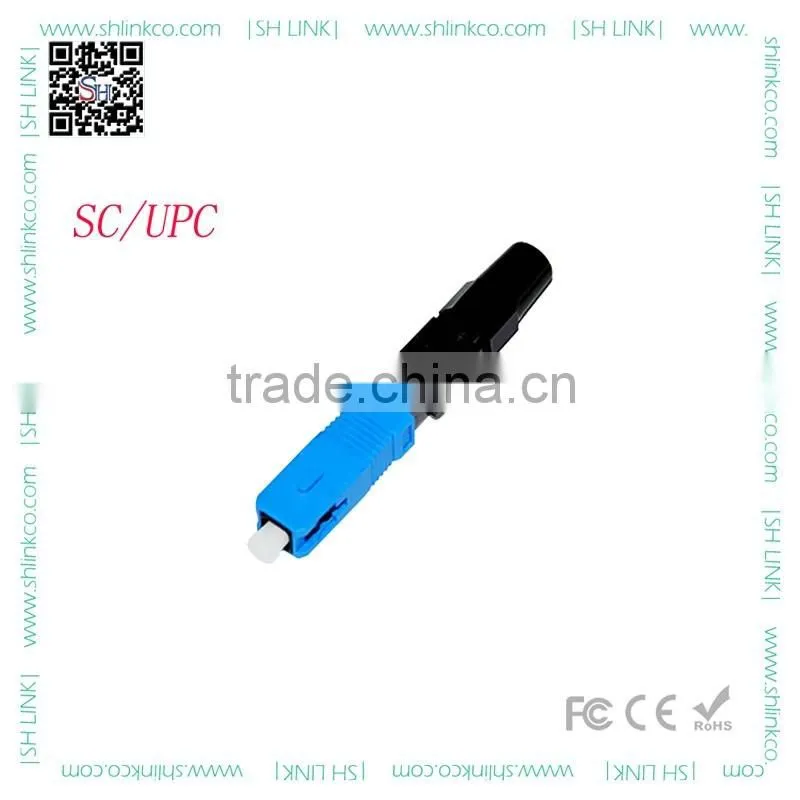

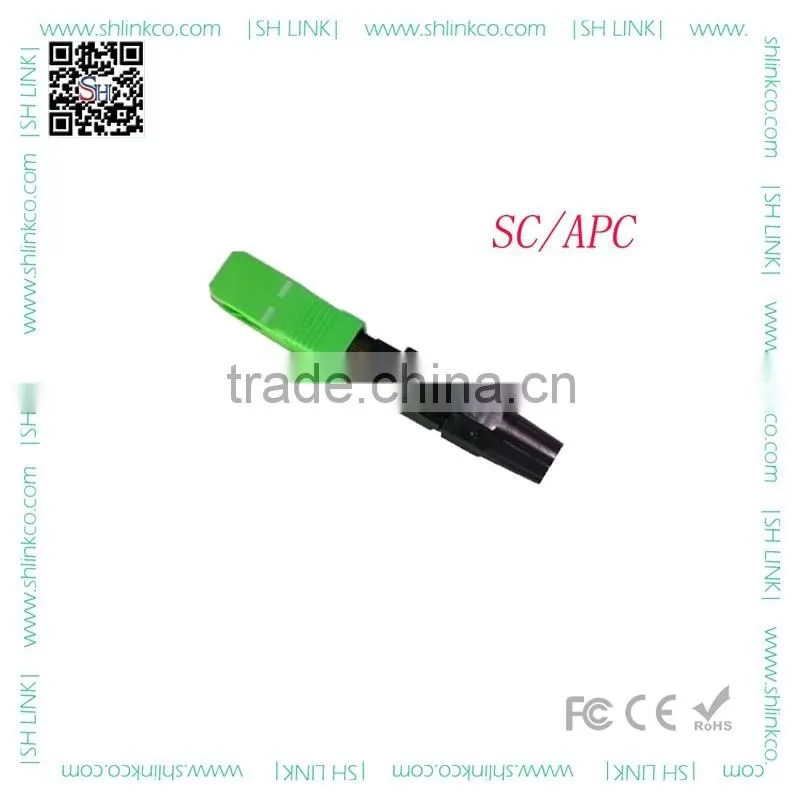

Fiber optical accessories field assembly connector SC/APC SC/UPC fiber fast connector
Simple Description
Fast connector is a good solution to the job site wiring and FTTH project. It has been widely applied to the construction site where needed fast connection. Fast connector is no need to be fixed by glue and without grinding to provide a quick help for line installation and FTTH project. SC/FC/ST/LC/MU/E2000/MTRJ...various fast connector are optional in SH Link.
Features
- Low insertion loss
- High return loss (low amounts of reflection at the interface)
- Ease of installation
- Low cost
- Reliability
- Low environmental sensitivity
- Ease of use
- Speed Installation
- Temperature: -40~85C
- Loss: <=0.3dB(MAX0.5)
- Weight:0.03kg
Specifications
Item | Parameter | |
Fiber type | SM | MM |
Insertion Loss | ≤0.5dB | ≤0.5dB |
Return Loss | ≤-50dB(PC)≤-60dB(APC) | ≤-25dB |
Mechanical Durability | 0.25 Db MAX. | 0.15 Db MAX. |
Durine | NOM.≤90S | |
Outer Diameter of cable | 0.9mm,2.0mm,3.0mm,2*3.0mm | |
Working Temperature | -40~+85℃ | |
Storage temperature | -40~+85℃ |
Applications
Fiber Optical connectors are used to join optical fibers where a connect/disconnect capability is required. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are generally assembled onto optical fiber in a supplier’s manufacturing facility. However, the assembly and polishing operations involved can be performed in the field, for example, to make cross-connect jumpers to size.
Most optical fiber connectors are spring-loaded, so the fiber faces are pressed together when the connectors are mated. The resulting glass-to-glass or plastic-to-plastic contact eliminates signal losses that would be caused by an air gap between the joined fibers.
Every fiber connection has two values:
1. Attenuation or insertion loss
2. Reflection or return loss.
Specific Application
to open FTTH optical terminal to terminal
connection box, cabinet, terminal box terminal
recovery, maintain the broken fiber and other accidents.
LAN, Wan, data and video transmission
the construction and maintenance of the terminal user access.
optical access mobile base station
Shipping
Various transportation are available, we'll arrange one according to your request.
Factory
FAQ
1. Are you a factory?
Yes, we are a factory.
2. What's your MOQ?
To better achieve customers' satisification, we accept sample orders, even one pc.
3. What's your lead time?
Generally, the lead time is 2~4 days for samples, 5~10 days for bulk order. It will be reconfirmed after the order is placed.
4. Do you accept OEM/ODM services?
Yes, OEM/ODM services are available. Customised order are welcome.
5. How can I apy?
